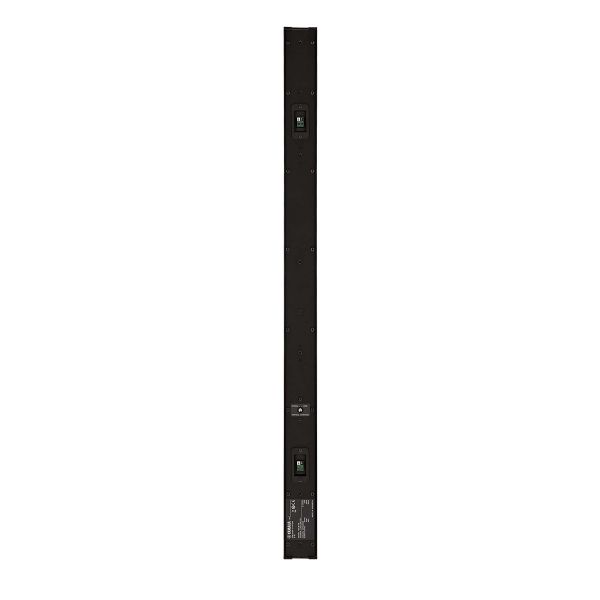

YAMAHA VXL1B-16 ตู้ลำโพงคอลัมน์ ขนาด 16×1.5 นิ้ว 320 วัตต์

YAMAHA VXL1B-16 ตู้ลำโพงคอลัมน์ ขนาด 16×1.5 นิ้ว 320 วัตต์

     VXL series line source loudspeakers offer a unique combination of outstanding sound quality and slim form-factor that is ideal for a variety of environments. VXL line source loudspeakers offer excellent projection as well as uniform volume and sound quality over a wide listening area, making them a great choice for highly reflective rooms, lecture halls, conference rooms, and other facilities that require maximum intelligibility throughout the listening area

     The VXL series includes three models VXL1-8, VXL1-16 and the VXL1-24 each featuring 1.5 inch full range drivers, that can be combined to optimally serve a variety of installations and spaces. The slim 2.1-inch (54mm) wide enclosures feature elegantly curved grille designs that blend beautifully with any décor to deliver superior and uniform speech and music reproduction in a wide variety of applications.

Features

• 1.5 inch (3.75 cm) full-range loudspeaker units with neodymium magnets
• 170° horizontal dispersion for uniform SPL over a wide listening area
• Vertical coverage can be selected as 20°(Standard) or 40°(Wide)
• Slim design complements any interior décor
• Available in black or white
• Enclosures can be painted to match surroundings
• Wall mount bracket supplied
• Optional hardware for a wide range of installation needs

Specs

• Speaker type Full-range, Bass reflex
• Frequency range (-10dB) 81 Hz – 20 kHz *1
• Coverage area Horizontal: 170°, Vertical:20°（ +10° – -10°） (NORMAL), 40°（+10° – -30°） (WIDE)
• Components LF-HF 1.5” (3.75 cm) Cone × 16
• Power rating NOISE 80 W PGM 160 W PEAK 320 W
• Nominal impedance 12Ω
• SPL Sensitivity (1W; 1m on axis) 91 dB SPL (1 m/1 W) *1 *2
• Peak (Calculated) 116 dB SPL (1 m) *3
• I/O connectors Euroblock (2 pin) × 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²)
• Protection circuit Load protection Full-range power limiting to protecting network and transducers
• Finish VXL1B-16: Black painting (approximate value: Munsell N3.0), VXL1W-16: White painting (approximate value: Munsell N9.0)
• IP-Rating Dust and water resis tant : IP35
• Packaging Packaged in 1 pc
• Dimensions (W x H x D) 2.1 x 33.3 x 4.1 in. (54 x 846 x 104 mm) – Speaker Only, 2.1 x 33.3 x 4.4 in. (54 x 846 x 111.5 mm) – with Included Bracket
• Weight 8.6 lbs (3.9 kg) – Speaker Only
