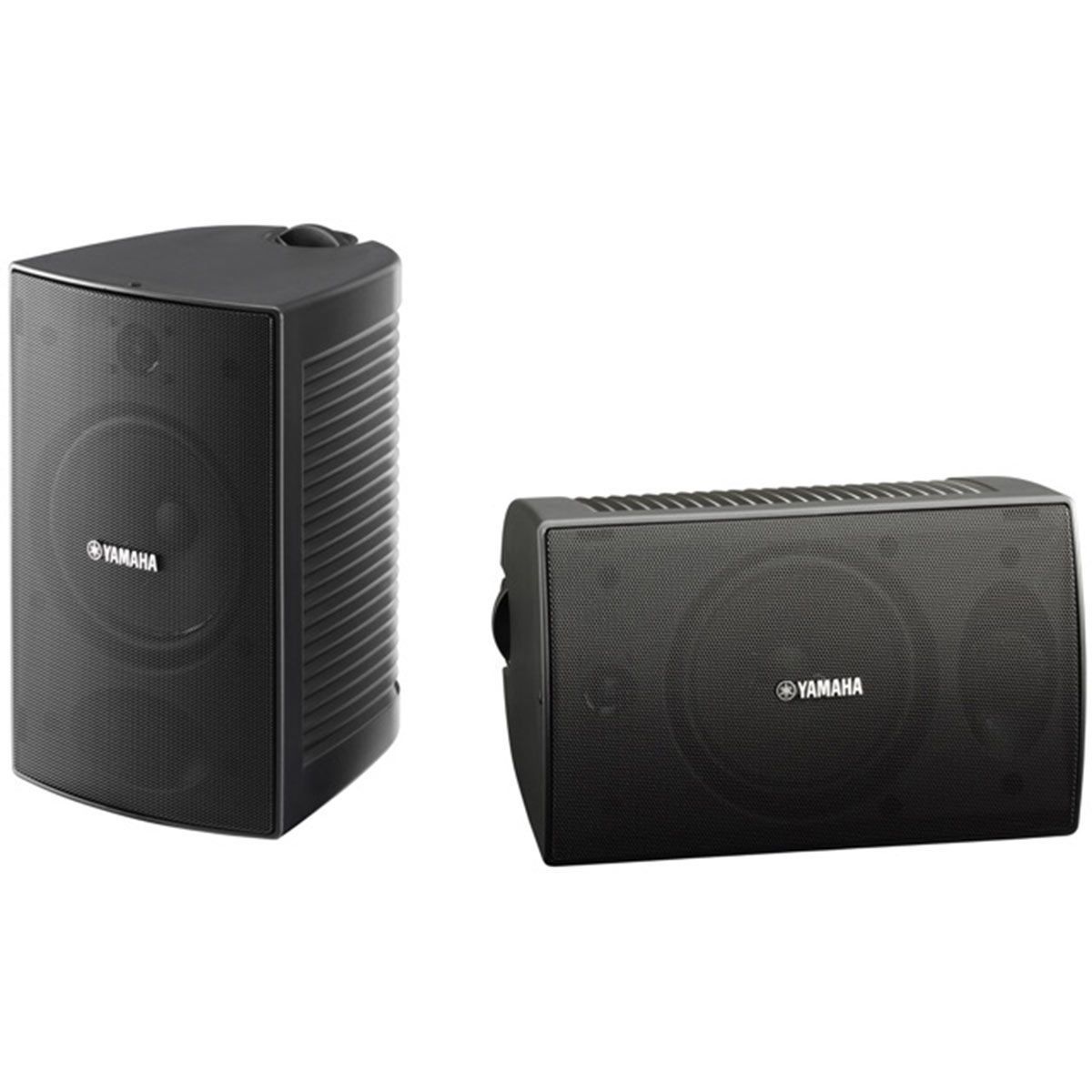

YAMAHA VS4 ตู้ลำโพงติดผนัง 2 ทาง 4 นิ้ว 15-60 วัตต์ 8Ω  70V or 100V (ต่อคู่)

     A superb blend of aesthetic simplicity and functional sophistication, the VS Series delivers high quality sounds in a variety of indoor and outdoor settings, particularly locations where interior design is a consideration. Let the VS Series be the perfect complement to your sonic needs.



Features:

  • Compact surface mount speakers with superior sound quality and sleek, functional design.
  • Series comprises two models: the VS6 (6.5″ woofer) and VS4 (4″ woofer) – both models feature a 1″ balanced dome tweeter and are available in Black or White.
  • Waterproof construction meeting the IEC60529 IPX3 rating requirements for outdoor usage.
  • Internally mounted transformers allowing operation in 70V or 100V distributed sound systems.
  • Dedicated, color-matched steel U-bracket enclosed for horizontal or vertical installation.
  • Paintable enclosure and grill to match any decor.
  • Overload protection circuit provided to protect speaker components.



Specifications

Frequency response -10dB 100Hz – 20kHz
Nominal coverage H 110
V 110
Components LF 4″(100mm) cone driver
HF 1″(25mm) balanced dome tweeter
Crossover 15kHz
Power rating NOISE 15W
PGM 30W
PEAK 60W
Nominal impedance
Transformer taps 100V 15W, 7.5W, 3.8W
70V 15W, 7.5W, 3.8W, 1.9W
SPL Sensitivity (1W; 1m on axis) 88dB SPL
Peak (Calculated) 106dB SPL (60W)
I/O connectors 2 pairs of barrier strip (parallel-wired *Screw size: M3, Terminal Space: 6mm)
Shape Rectangular
Cabinet material HIPS, 94-HB
Finish VS4: Black, VS4W: White
Flying and mounting hardware U-bracket (4 x Φ5.5mm and 2 x Φ11mm holes)
Waterproof IEC60529 IPX3 splash proof rating
Dimensions W 152 mm (6″)
H 243 mm (9 9/16″)
D 172 mm (6 3/4″)
Net weight 1.9kg (4.2lbs)
Accessories U-bracket, Owner’s Manual, Retaining knob, Terminal cover, Terminal cover screw, SPECIFICATIONS
YAMAHA VS4 ตู้ลำโพงติดผนัง 2 ทาง 4 นิ้ว 15-60 วัตต์ 8Ω 70V or 100V (ต่อคู่)
เงื่อนไขอื่นๆ
เช็ค Stock และราคาสินค้ากับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
