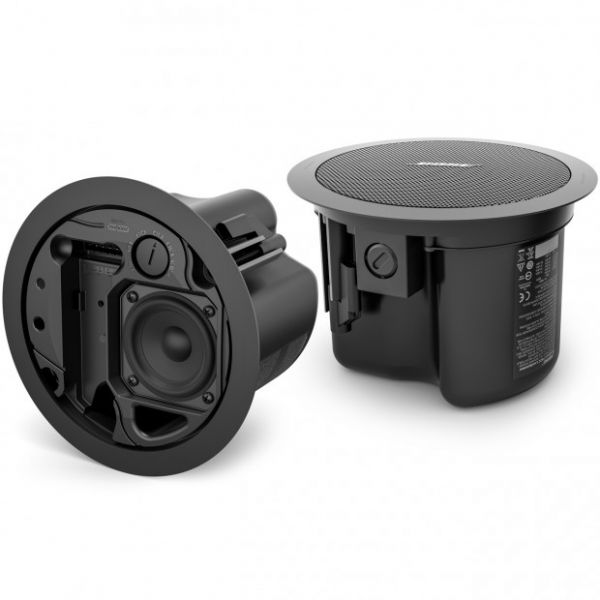

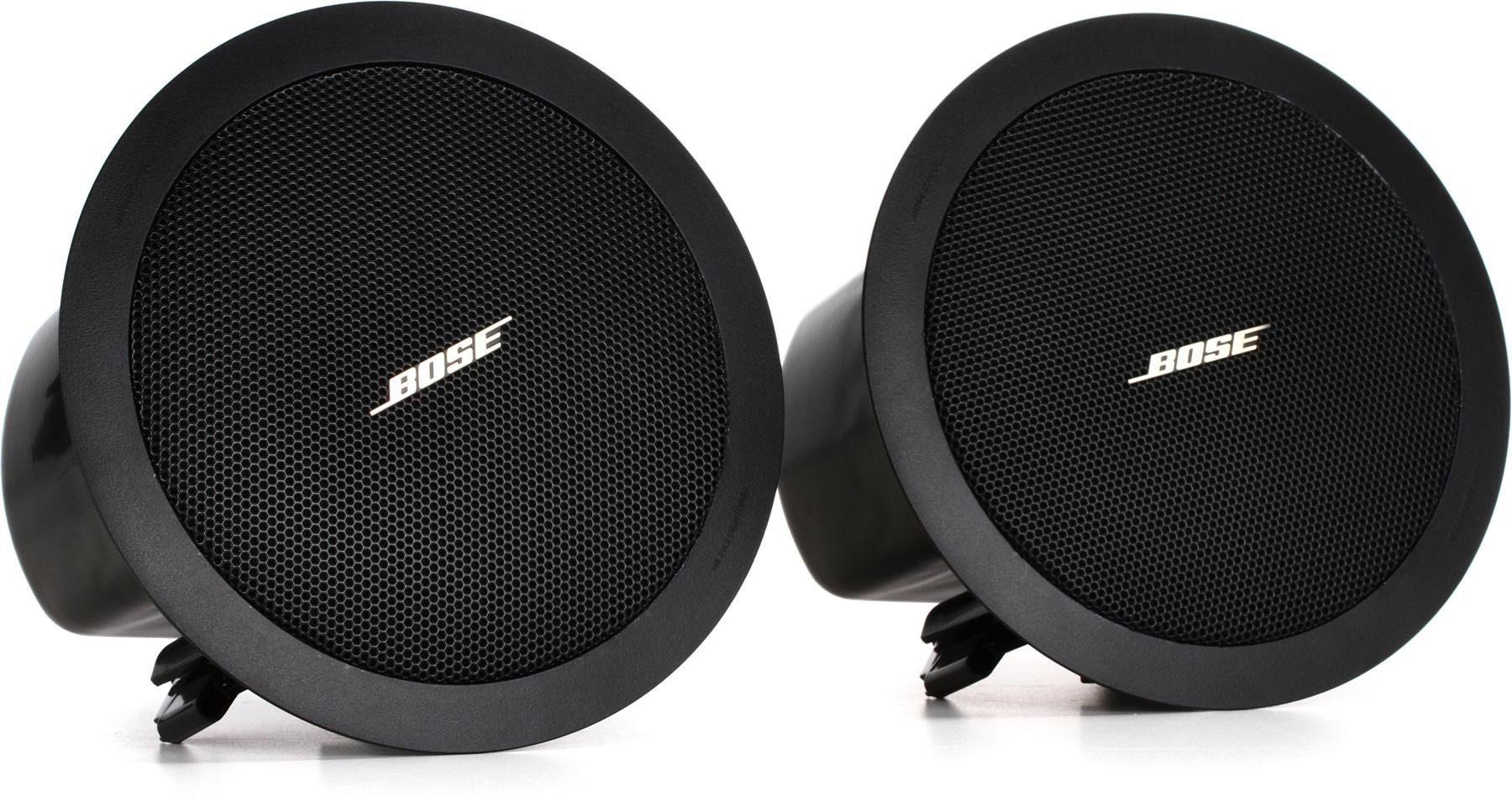

Bose FreeSpace FS2C ลำโพงติดเพดาน 2.25 นิ้ว 16 โอห์ม 80W และ 70/100V (สีดำ)

Full-range 2.25-inch transducer, low-frequency range down to 83 Hz, 16-ohm, and 70/100V operation

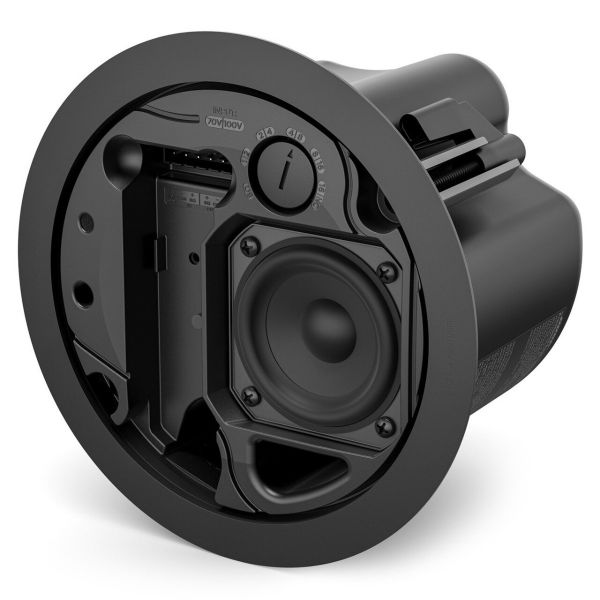

Front baffle-mounted tap settings and front-baffle audio connections

Pick your power — FS2 models feature a 2.25-inch full-range transducer, low frequency down to 83 Hz, 16-ohm and 70/100V operation

Maintain consistent tonal quality with shared voicing across all FS models

Hear the best of both — music and voice —with transducers that offer clear voice reproduction and smooth response for background music

Bring quality sound to more places

Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix-and-match installations. DesignMax subwoofers and larger models can expand your system design options even further

Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with practical features, including removable logos

Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options

Install with ease —all models feature Euroblock inputs and front-baffle input location on in-ceiling models

Support public safety — all models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications

• Frequency Response (-3 dB)
  95 – 16,000 Hz
• Frequency Range (-10 dB)
  83 – 19,000 Hz
• Nominal Coverage Angle (1 – 4 kHz)
  150°
• Nominal Coverage (1 – 10 kHz)
  145°
• Power Handling, Long-term Continuous
  20 W 16 W
• Power Handling, Peak
  80 W 64 W
• Sensitivity SPL/1W @ 1m
  86 dB 86 dB
• Calculated Maximum SPL @ 1 m
  99 dB 98 dB
• Calculated Maximum SPL @ 1 m, Peak
  105 dB 104 dB
• Loudspeaker EQ
  No Bose EQ required when speaker used for general use. Bose EQ Voicing and SmartBass available. EN54-24 Equalization is required for EN54-24 use; refer to FS2P EN54-24 Certified ratings
  document on pro.bose.com for details.
• Recommended High-Pass Protection
  85 Hz with minimum 24-dB/octave filter
• Transformer taps
  70V: 1, 2, 4, 8, 16 W, bypass
  100V: 2, 4, 8, 16 W, bypass

TRANSDUCERS

• Full-Range Driver
  1 x 2.25-inch woofer (57 mm)
• Nominal Impedance
  16 ohms (transformer bypass)

PHYSICAL

• Enclosure Material
  Engineered-plastics front baffle with integrated steel-formed backcan
• Grille
  Perforated steel, powder-coated finish
• Logo
  Rotatable, removable
• Color
  Black (similar to Ral 9005), White (similar to Ral 9003)
• Environmental
  Indoor only, suitable for use in plenum locations
• Safety Agency
  Certification: EN54-24:2008 for Voice Alarm Systems, UL 1480 UUMW, CAN/ULC-S541 UUMW7 for
  Speakers for Fire Alarm and Signaling Systems, in compliance with UL 2043 for plenum-space installation. Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32
  For EN54-24 specifications, refer to FS2C EN 54-24 Certified Ratings document on pro.bose.com.
  EN54-24 equalization required for EN54-24 use.
• Operating Temperature Range
  0 °C to 50 °C (32 °F to 122 °F)
• Connectors
  Euroblock 6-pin connector with loop-through, front-baffle mounted
  Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire
• Wire/Conduit Entry
  Top and side wire entry-point 12.7 mm (1/2 in) knockouts allow for 9.5 mm (3/8 in)
  conduit and fittings
• Suspension/Mounting
  Two (2) standard mounting arms plus one (1) safety cable tab
• Maximum Ceiling Thickness
  38 mm (1.5 in)
• Product Dimensions (Baffle Diameter × Depth)
  182 × 132 mm (7.2 x 5.2 in)
• Backcan Dimensions (Diameter × Depth)
  127 × 125 mm (5.0 x 4.9 in)
• Ceiling Cutout
  160 mm (6.3 in)
• Net Weight, Loudspeaker with Grille (Single)
  1.63 kg (3.6 lb)
• Shipping Weight (Pair)
  4.4 kg (9.7 lb)
• Included Accessories
  Each FS2C includes one (1) cutout template per box
• Optional Accessories
  Adjustable Tile Bridge (6-pack), DesignMax DM2CRI Rough-in kit (6-pack),
  Retrofit Kit (2-pack), Ceramic terminal w/ Fuse kit

PRODUCT CODES

• Black
  841154-0110
