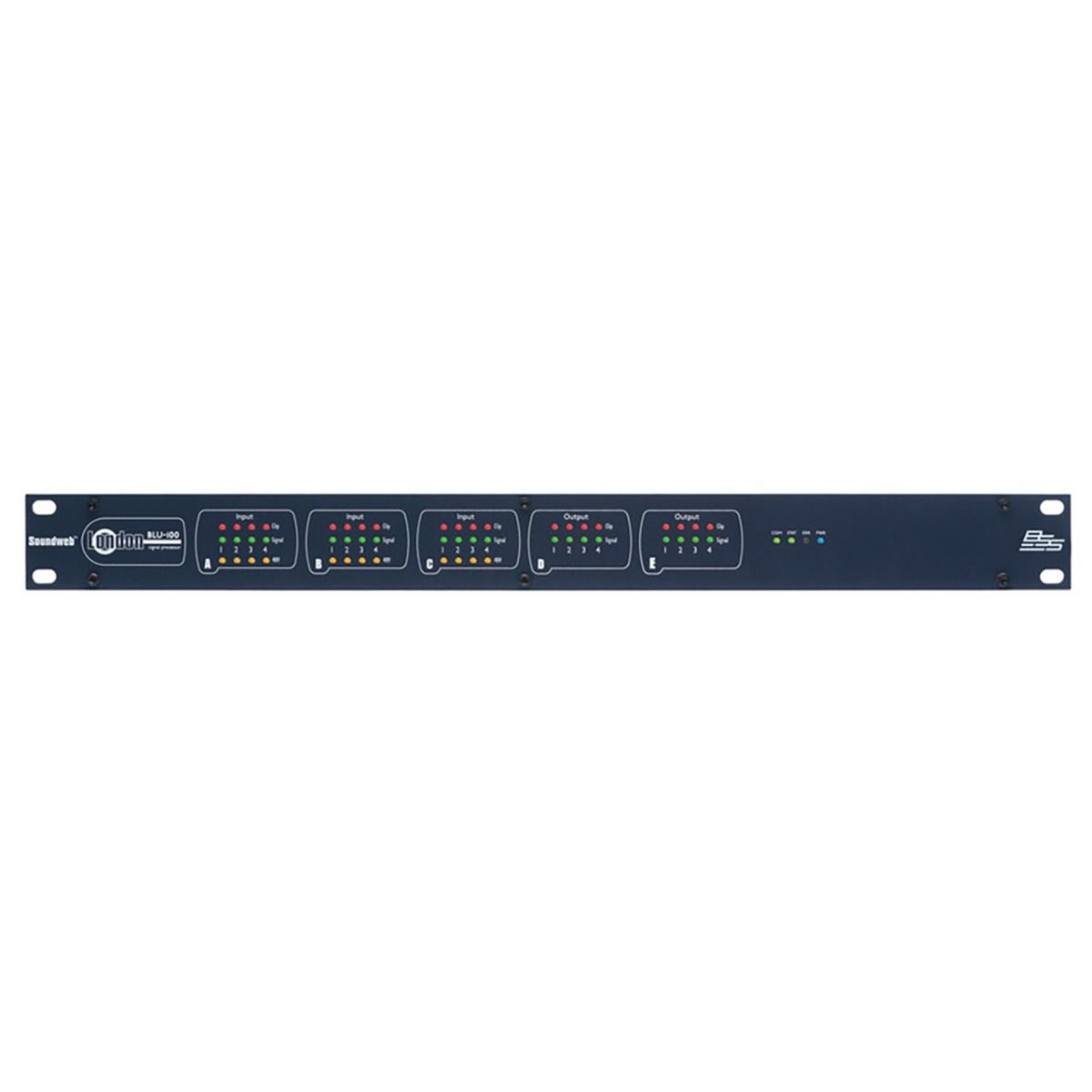

BSS BLU-100  12x8 Signal Processor with Digital Audio Bus

     The BSS Audio Soundweb London BLU-100 12x8 Signal Processor with BLU Link is a DSP processor designed for use in networked audio routing applications. It offers a fixed configuration of 12 inputs and 8 outputs, configurable signal processing, and a high bandwidth, fault tolerant digital audio bus.

     The BLU-100 features open architecture with full configuration through HiQnet London Architect. A palette of processing and logic objects and "drag and drop" method of configuration provide a simple and familiar design environment. This processor features a low-latency, fault-tolerant digital audio bus of 48 channels, which uses standard Category 5e cabling, providing a distance of 100 yards between compatible devices. Fiber media converters can be used to increase the distance between devices to over 24 miles.

     The BLU-100 is compatible with the entire Soundweb London family, and its 48-channel digital audio bus represents channels 1-48 of the larger 256-channel digital audio bus when integrated with the BLU-800, BLU-320, BLU-160, BLU-120, and BLU-BOB devices. Analog Inputs provide software-configurable gain in 6 dB increments up to +48 dB per channel and software-selectable Phantom Power per channel. Phantom Power, Signal Present, and Clip information per channel is accessible without the requirement for a PC, from the clear front-panel LED indicators.

     A bidirectional locate function allows devices to be identified both from and within HiQnet London Architect. 12 Control Inputs and 6 Logic Outputs allow the BLU-100 to be integrated with GPIO compatible devices. The Soundweb London Interface Kit, a comprehensive documentation which details how Soundweb London systems can be integrated with third-party control systems, is included within the installation of HiQnet London Architect.



  • 12 analog inputs (with +48V phantom power per channel)
  • 8 analog outputs
  • Configurable signal processing
  • Rich palette of processing and logic objects
  • 48-channel, low-latency, fault-tolerant digital audio bus
  • Clear front-panel LED Indicators
  • Bidirectional locate functionality
  • 12 control inputs and 6 logic outputs for GPIO integration
  • Soundweb London interface kit for third-party control system integration (documentation)
  • HiQnet device
  • Configuration, control, and monitoring from HiQnet London Architect



Specs

Indicators
Input Signal Present, CLIP, 48 V (Input Only)
Other COM, STAT, ERR, PWR
Analog Input
Mic/Line Inputs 12 x Electronically Balanced on Phoenix Combicon Removable Screw Connectors
Nominal Gain 0 dB, Electronically Switchable up to +48 dB, in +6 dB Steps
Input Impedance 3.5 Kilohms
Maximum Input Level +20 dBu with 0 dB Input Gain, +8 dBu with 12 dB Gain
CMRR > 75 dB at 1 kHz
EIN < -128 dBu Typical with 150-Ohm Source
Phantom Power 48 V Nominal, Selectable per Input
Latency A/D Latency: 37/Fs [0.77 ms @ 48 kHz]
Analog Outputs
Outputs 8 x Electronically Balanced on Phoenix/Combicon Removable Screw Connectors
Maximum Output Level +19 dBu
Frequency Response 20 Hz to 20 kHz (+0.5 dB / -1 dB)
THD < 0.01% 20 Hz to 20 kHz, +10 dBu Output
Dynamic Range 108 dB Typical, 22 Hz to 22 kHz, Unweighted
Crosstalk < -75 dB
Output Impedance 40 Ohms Balanced, 20 Ohms Unbalanced
Latency D/A Latency: 29/Fs [0.60 ms @ 48 kHz]
Control Port
Control Ports 12 Inputs and 6 Outputs
Input Voltage 0 to 4.5 V
Input Impedance 2-Wire Mode: 4.7 Kilohms to +5 V
3-Wire Mode: >1 Megohm
Output Voltage Logic Output Voltage: 0 or +5 V Unloaded
Output Impedance Logic Output Impedance: 440 Ohms
Output Current Logic Output Current: 10 mA Source, 60 mA Sink
Watchdog Output
Output Current Opto Output Current: 14 mA Maximum
Voltage Withstanding Voltage: 80 V Maximum (Off)
Impedance Series Impedance: 220 Ohms (Isolated)
Control Network
Connectors RJ45 Ethernet Connector
Maximum Cable Length 300' / 100 m on Cat 5e Cable between Devices
Number of Maximum Nodes 60
Latency 11/Fs [0.23 ms @ 48 kHz]
Pass-Through Latency: 4/Fs [0.08 ms @ 48 kHz]
Power
Mains Voltage 100 to 240 VAC, 50/60 Hz
Power Consumption < 55 VA
BTU < 188 BTU/Hour
Operating Temperature Range 41 to 95°F / 5 to 35°C
Dimensions & Weight
Dimensions (HxWxD) 1.75 x 19 x 9" / 45 x 483 x 229 mm
Weight 6.4 lb / 2.9 kg
BSS BLU-100 12x8 Signal Processor with Digital Audio Bus
BSS BLU-100 12x8 Signal Processor with Digital Audio Bus
