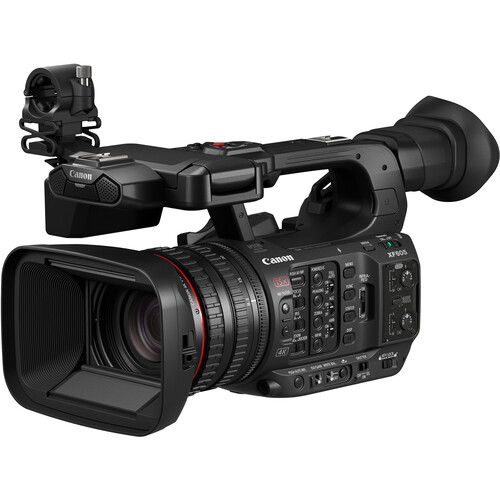

Canon XF605 UHD 4K HDR Pro Camcorder

Specifications in detail
Image Sensor

• Sensor
  1.0 Inch-Type CMOS
• Filter
  RGB Primary Colour Filter
• Total Pixels
  Approx. 13.4 MP
• Effective Pixels per Sensor
  Approx. 8.29 MP (3840 x 2160)
• Gain Boost Function
  Yes, increases gain to 36dB, activated via user assigned button
• Sensitivity (PAL)
  f/13, 50.00P, 2000 lux, reflectance 89.9%
• Minimum Illumination (PAL)
  50.00P / 50.00i Approx. 2.5 lux (1/50 second shutter speed)
  25.00P Approx. 1.3 lux (1/25 second shutter speed)

Image Processor

• Type
  DIGIC DV7
• Colour Sampling
  XF-AVC: 4:2:2
  MP4: 4:2:2 or 4:2:0 H.265 / 4:2:0 H.264.
  XF-AVC / MP4 Proxy files: 4:2:0
• Bit Depth
  XF-AVC / MP4 H.265: 10-bit
  MP4 H.264: 8-bit
  XF-AVC / MP4 Proxy files: 8-bit

Lens

• Zoom Ratio
  15x optical, (30x Advanced Zoom Full HD)
• Focal Length (35mm Equivalent)
  Approx. 25.5 to 382.5 mm Standard IS/IS Off
• Minimum Focus Distance
  10 mm at wide end, 60 cm across entire zooming range
• Max. Aperture
  f/2.8
• Aperture Blades
  9 blades
• Filter Diameter
  58mm
• Image Stabilization System
  Optical system (lens shift) + electronic stabilization
  Dynamic, Standard, Powered, Off
• ND Filter
  3 densities: turret switched, motor-driven.
  ND 1/4, ND 1/16, and ND 1/64.
• Zoom Control
  Zoom rockers on body and handle;
  Selectable manual zoom/focus ring on lens;
  Wireless controller via Browser Remote.
  Via RC-IP100 Canon Camera Controller1
  Selectable High Speed mode available.
• Zoom Speed
  Variable or Constant speed Fast/Normal/Slow, 16 speed level settings
• Focus Control
  MANUAL: Lens ring and touchscreen point selection (Focus Guide and Peaking assist functions), Focus Preset.
  AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Face Only AF, Face Priority AF.
  (Continuous AF, AF-Boosted MF, AF Speed, AF Response, AF Frame size)
• Focus System
  Dual Pixel CMOS AF, Contrast AF, Eye AF, EOS iTR AF X
• Iris Control
  Touchscreen, Auto, Lens ring
• Digital Zoom/Teleconverter
  300x Digital Zoom, Digital Teleconverter (x1.5/x3/x6. Not available when optical teleconverter used)

Recording

• Video Storage Media
  SD / SDHC / SDXC card (2 card slots)
• Type
  Class U3 cards recommended
• Recording Time
  128GB Card, approx times.
  XF-AVC: 410Mbps. 39 mins. 310Mbps, 51 mins. 260Mbps, 61 mins.
  MP4 / H.265: 225 Mbps, 71 mins. 170Mbps, 94 mins. 135 Mbps, 118 mins
  MP4 / H.264: 150 Mbps, 107 mins. 35 Mbps, 458 mins. 8Mbps, 2006 mins
• Recording File System
  FAT32/exFAT
• Internal Recording Format (PAL)
  XF-AVC (MXF): ALL-I/Long GOP.
  Proxy Files: Long GOP
  MP4: Long GOP
• Simultaneous Recording
  Yes. Simultaneous recording, relay recording.
  Different recording options possible on each memory card.
• Recording Frame Rate (PAL)
  XF-AVC 422 10bit:
  (3840 x 2160)
  59.94P / 50.00P / 29.97P / 25.00P / 23.98P
  (1920x1080)
  59.94P / 59.94i / 50.00P / 50.00i / 29.97P / 25.00P / 23.98P

  MP4 (HEVC / H.264) 422 10bit:
  (3840 x 2160/1920x1080)
  59.94P / 50.00P / 29.97P / 25.00P / 23.98P

  MP4 (HEVC) 420 10bit:
  (3840 x 2160/1920x1080)
  59.94P / 50.00P / 29.97P / 25.00P / 23.98P
  (1280 x 720)
  59.94P / 50.00P

  MP4 (H.264) 420 8bit:
  (3840 x 2160/1920x1080)
  59.94P / 50.00P / 29.97P / 25.00P / 23.98P
  (1280 x 720)
  59.94P / 50.00P
• External Recording Output
  3840 x 2160: 59.94p / 50.00p / 29.97p / 25.00p / 23.98p
  1920 x 1080: 59.94p / 50.00p / 29.97p / 25.00p / 23.98p / 29.97PsF / 25.00PsF / 59.94i / 50.00i
  1280 x 720: 59.94p / 50.00p
  720 x 480: 59.94i (SDI Only)
  720 x 576: 50.00i (SDI Only)
• External Monitoring
  Yes, 12G-SDI or HDMI. Simultaneous output available
• High Frame Rate
  Yes, Up to 120P (FHD, 4:2:2/8-bit or 10-bit) including in 50.00Hz mode. Simultaneous Audio Recording
• Pre-Record Function
  Yes. 3 seconds
• Special Recording Functions
  Frame Recording, Interval Recording
• Still Photos
  JPEG up to 3840x2160
  (Still image resolution is dependent on the video resolution)
• Photo Storage Media
  SD Card (Slot B)

System

• Display Type
  LCD Electrotstatic Touch Panel.
• Size
  3.5-inch type Approx 2.76 million dots
• Wave Form Monitor
  Yes
• Focus Assist
  Dual Pixel Focus Guide (MF mode) / Peaking / Magnify
• Peaking
  Selectable Peaking Colour: Red / Blue / Yellow / White
• False Colour Display
  Yes, also via EVF, SDI and HDMI output
• Zebra
  70% or 100% reference level, selectable
• Markers
  Center, horizontal, vertical, grid, aspect, safety zone, and user marker.
  Each item can be displayed in yellow, blue, green, red, black, gray, or white.

EVF

• Size
  0.36-inch type, approx. 1.77 million dots
• EVF Auto -Off
  Yes, function enabled/disabled via menu
• Correction Lens
  +2.0 to -5.5 dioptre

Inputs / Outputs

• Audio Input
  XLR 3-pin jack (x2) with 48V phantom power, Line and Mic,
  Additional inputs via third-party accessory attached to shoe.
  3.5mm microphone input jack (Supply Voltage 2.4V DC), Built-in Mic.
• Headphone Output
  3.5mm stereo mini jack
• Speaker
  Yes, built-in
• HDMI Output
  HDMITM Type A
• USB
  1 x Type A. Type A power output 5V/900mA
  1 x Type C. Type C compliant with PTP and UVC
• SDI Output
  12G-SDI, BNC connector
• Time Code
  Yes, BNC connector
• Genlock
  Yes
• LAN
  Yes
• DC Input
  3.4mm jack
• Remote Control Terminal
  Type A (2.5mm jack), Type B (8-pin connector, RS422-type)

Miscellaneous

• Tally Lamp
  Yes
• Colour Bars (PAL)
  Yes. SMPTE, ARIB or EBU, with 1KHz Tone
• Accessory Shoe
  Yes, Accessory and Cold shoe
• Assignable Buttons
  Total of 11 Assignable Buttons with over 100 Assignable Functions
• Custom Dial
  Av / Tv / M / AGC Limit / Exposure Compensation / Off

Exposure

• Exposure Metering
  Centre-weighted average or segment evaluative (determined by shooting mode)
  Fixed exposure (1/50 sec.)
• Exposure Compensation
  Highlight AE, Exposure lock, Auto backlight compensation, Exposure compensation amount shown as ±3 when locked or ±2 in AUTO (±8 increments).
• Exposure Lock
  Yes
• ISO Range/Setting
  ISO200 - ISO12,800. 1 Stop or 1/3 Stop increments
• Gain Range Setting
  -6.0dB - 21.0dB. Normal or Fine setting. Fine setting in 0.5dB steps.
• Auto ISO / Auto Gain Control Setting
  Auto / Manual. Auto Gain set when shooting in IR mode
• Auto Gain Control Limit
  Yes, selectable from -6dB to 21db, 1dB increments

Shutter Speed

• Control Modes
  Auto, P, Tv, Manual
• Shutter Speed (PAL)
  Max 1/2000 Sec.
• Shutter Angle
  Yes, 360° to 11.25°
• Slow Shutter (SLS)
  50.00i/50.00P: 1/3, 1/6, 1/12, 1/25 sec
  25.00P: 1/3, 1/6, 1/12 sec
• Clear Scan (PAL)
  Yes, 24.00Hz to 2003.17Hz

Streaming, Wi-Fi, & GPS Specifications

• IP Streaming Protocols Supported
  Canon XC2, UDP, RTP, RTP+FEC, RTSP+RTP
• News Metadata
  Yes, compliant with NewsML-G2 standard
• Browser Remote Control
  Yes
• Wi-Fi
  Yes, built-in
• Supported Wi-Fi
  IEEE 802.11b/g/n (2.4GHz)
  IEEE 802.11a/n/ac (5GHz)3
• GPS Information (Optional Accessory)
  Location (Latitude / Longitude / Altitude), Coordinated Universal Time (UTC), Satellite reception (requires the optional GPS Receiver GP-E2)

White Balance

• Auto
  Yes. Shockless WB, AWB Response, AWB Hold (via assignable button)
• Preset
  Daylight (Approx. 5,600K), Tungsten (Approx. 3,200K)
• Manual Setting
  Colour Temperature range: 2,000–15,000K
  Default value for Set 1 and Set 2: 5,600K

Shooting Modes

• Exposure Control
  AUTO Mode
  Manual Mode: P, Tv, Av, M (manual exposure)
• Custom Picture Menu
  CP Files:
  C1: BT.709 Normal
  C2: BT.709 Wide DR
  C3: BT.709 Standard
  C4: Canon Log 3
  C5: PQ (BT.2020)
  C6: HLG (BT.2020)
  C7: EOS Standard
  C8: EOS Neutral
  C9 - C20: User Defined
• Look File
  User defined. Cube format Look File. Created on third-party software
• Colour Matrix Settings
  Neutral, Video, Production Camera
• Infrared Shooting Mode
  Yes
• Built-in IR Lamp
  Yes, in Handle Unit.
  Wavelength: 850nm (near-Infrared)

Time Code

• Count Up System
  Regen / Rec Run / Free Run / Preset. Drop frame / Non Drop Frame selectable
• Start Value Setting
  Yes, Via BNC or HDMI

Audio

• Recording Format
  MP4: MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch)
  XF-AVC: LPCM (24-bit 4ch)
• Audio Control
  Manual or Auto
  Independent 2ch Line/Mic/Mic+48V input;
  Independent level control per channel (-∞ to +18 dB);
  Independent audio limiters (2-Ch.);
  Input mic trimming
• Reference Tone
  1KHz, -12dB / -18dB / -20dB / Off
• Microphone Attenuation
  On / Off (20dB)
• Microphone Level Meter
  Yes

Accessories

• Supplied
  Lens hood with barrier, Lens Cap, Mic holder unit, Eye Cup, AC Cable,
  Compact Power Adapter (CA-200L) Battery Charger (CG-A20), Battery Pack BP-A30
• Optionals
  Canon Battery Pack BP-A30 / BP-A60
  Canon Battery Charger CG-A10 / CG-A20
  Canon Compact Power Adapter CA-CP200L
  Canon 8 Pin Remote Cable RR-10 / RR-100
  Canon Teleconverter TL-U58
  Canon Wide Attachment WA-U58
  Canon PROTECT Filter 58mm
  Canon ND4L Filter 58mm
  Canon ND8L Filter 58mm
  Canon GPS Receiver GP-E2
  Canon Remote Controller RC-V100
  Canon Remote Camera Controller RC-IP100
  Canon Interface Cable IFC-150AB III

Power Source

• Power Supply (Battery)
  Canon Battery Pack BP-A30 (supplied), BP-A60 (optional)
• Power Supply (Mains)
  Battery: 14.4V, DC in: 24V
• Power Consumption
  Approx 13.6W (50.00P UHD, Long GoP 260 Mbps)
  Approx 12.1W (25.00P UHD Intra 410 Mbps)
• Recording Time
  With supplied BP-A30
  Approx 185 mins.(50.00P UHD, Long GoP 260 Mbps)
  Approx 210 mins. (25.00P UHD Intra 410 Mbps)

Physical Specifications

• Dimensions (Main Body Only)
  Approx. 168 x 173 x 333 mm (Body Only)
  Approx. 200 x 219 x 385 mm (Including lens hood, eye cup, microphone holder unit)
• Weight (Body Only)
  2010g (Approx.)
• Weight (Accessories)
  2460g (Approx.)
• Operating Temperature Range
  Approx. 0 to 40 °C, 85 % (relative humidity)
  Approx. -5 to 45 °C, 60 % (relative humidity)
