Key Features
Digital Film, Extreme Resolution
URSA Mini Pro 12K’s extreme resolution goes well beyond traditional motion picture film! You get the benefits of shooting with film including incredible detail, wide dynamic range and rich, deep color. Perfect for feature films, episodic television and immersive, large format IMAX. The incredible definition around objects makes it ideal for working with green screen and VFX including compositing live action and CGI. Super sampling at 12K means you not only get better color and resolution at 8K, but also a smoothness that comes from making aliasing invisible. This new generation of digital film technology ushers in an analog style purity and subtlety to deliver a better than film experience.
Cinematic Super 35 12K Sensor
The Blackmagic URSA Mini Pro 12K features a revolutionary new sensor with a native resolution of 12,288 x 6480, which is an incredible 80 megapixels per frame! The Super 35 sensor has a superb 14 stops of dynamic range and a native ISO of 800. The new 12K sensor has equal amounts of red, green and blue pixels and is optimized for images at multiple resolutions. You can shoot 12K at 60 fps or use in-sensor scaling to allow 8K or 4K RAW at up to 110 fps without cropping or changing your field of view. URSA Mini Pro’s interchangeable lens mount lets you choose from the widest range of vintage and modern cinema lenses, so you can capture every ounce of character and detail from your favorite optics.
Shoot in 12K, Edit on a Laptop
The URSA Mini Pro 12K sensor and Blackmagic RAW were designed together to make 12 bit RAW workflows in 12K effortless. As an incredibly efficient next generation codec Blackmagic RAW lets you shoot 12K and edit on a laptop, a capability that simply isn’t possible with other codecs. The massive resolution of the sensor means you can reframe shots in post for delivery in 8K and 4K. It’s like a multi camera shoot with only one camera. And it’s perfect for great looking vertical and square video, too. The advanced design of the sensor and Blackmagic RAW means that you can work in any resolution in post production instantly, without rendering, while retaining the full sensor’s color accuracy.
SPECIFICATIONS
Description

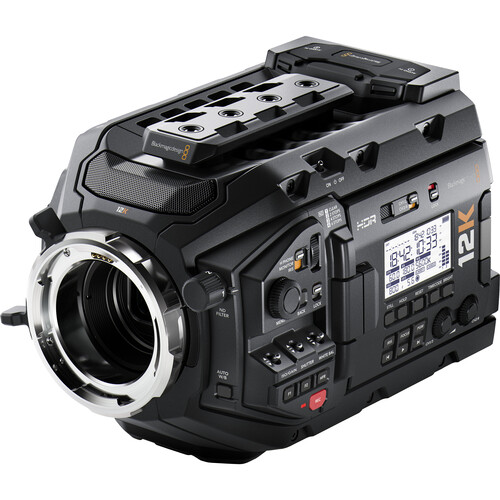

URSA Mini Pro 12K is a revolution in digital film with a 12,288 x 6480 12K Super 35 sensor and 14 stops of dynamic range. The third generation URSA Mini Pro features new color science and shoots 80 megapixels per frame in Blackmagic RAW. You also get built in ND filters, user changeable lens mount and recording to dual CFast or SD cards. URSA Mini Pro 12K even supports recording direct to a flash disk or SSD using its built in SuperSpeed USB‑C connection!
Camera FeaturesEffective Sensor Size27.03mm x 14.25mm (Super35) Lens MountPL mount included. Interchangeable with optional EF and F lens mounts. Lens Control12pin broadcast connector for compatible lenses and electronic control via EF mount pins on optional EF lens mount. Dynamic Range14 Stops Shooting Resolutions12,288 x 6480 (12K DCI) 8192 x 4320 (8K DCI) 6144 x 3240 (6K Super16) 4096 x 2160 (4K DCI) Frame RatesMaximum sensor frame rate dependent on resolution selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. High Speed Frame Rates12K 17:9 full sensor up to 60 fps 6K Super 16 up to 120 fps Built in ND FiltersFour position ND filter wheel with clear, 2-stop, 4-stop and 6-stop IR ND filters. FocusFocus button turns on peaking, auto focus available using compatible lenses. Iris ControlIris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. Screen Dimensions4 inch Screen TypeLCD capacitive touchscreen. Metadata SupportAutomatically populated lens data from i/Technology with compatible PL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. ControlsTouchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys. Timecode ClockHighly accurate timecode clock. Less than 1 frame drift every 8 hours. ConnectionsTotal Video Inputs1 x 12G-SDI Total Video Outputs1 x 12G-SDI, 1 x 3G-SDI Monitoring. SDI Rates1.5G, 3G, 6G, 12G. Analog Audio Inputs2 x XLR analog switchable between mic, line and AES audio. Phantom power support. Analog Audio Outputs1 x 3.5mm headphone jack, supports iPhone microphone for talkback. Reference InputsTri-Sync/Black Burst/Timecode. Remote Control1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses. Computer Interface1 x USB Type-C 3.1 Gen 2 with power delivery for external drive recording. 1 x USB Type-C for software updates. ![]() AudioMicrophoneIntegrated stereo microphone. Built in Speaker1 x mono speaker. StandardsSD Video StandardsNone. HD Video Standards1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI ComplianceSMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 SDI Audio Sampling48 kHz and 24 bit MediaMedia2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 2 expansion port with power delivery for recording to external media. Please click here for a summary of compatible media. Media FormatCan format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. Supported CodecsCodecsBlackmagic RAW Constant Bitrate 5:1, ControlExternal ControlBlackmagic SDI Camera Control Protocol, iPad control, Bluetooth control, 1 x 2.5mm LANC for lens and record control. Talkback and TallyTalkbackSDI Channels 15/16 and iPhone headset. Live Tally IndicatorTally on LCD, URSA Viewfinder and URSA Studio Viewfinder. Storage FeaturesStorage Type2 x CFast 2.0 Storage RatesStorage rates based on 24 frames per second. 12K - 12,288 x 6480 8K - 8192 x 4320 6K - 6144 x 3240 4K - 4096 x 2160 Recording FormatsBlackmagic RAW Q0, Q1, Q3, Q5, 5:1, 8:1, 12:1 and 18:1 at 12,288 x 6480, 11,520 x 6480, 12,288 x 5112, 7680 x 6408, 8192 x 4320, 7680 x 4320, 8192 x 3408, 5120 x 4272, 6144 x 3240, 4096 x 2160, 3840 x 2160, 4096 x 1704 and 2560 x 2136 stored as 12 bit non-linear with film, extended video, video or custom 3D LUT embedded in metadata. 1 Constant Quality setting Q0 storage rates quoted are indicative only, based on a 5:1 - 12:1 compression range. 2 Constant Quality setting Q1 storage rates quoted are indicative only, based on a 8:1 - 20:1 compression range. 3 Constant Quality setting Q3 storage rates quoted are indicative only, based on a 12:1 - 30:1 compression range. 4 Constant Quality setting Q5 storage rates quoted are indicative only, based on a 16:1 - 40:1 compression range. Actual storage rates are entirely dependent on image subject matter. SoftwareSoftware IncludedURSA Mini Operating System DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK Blackmagic RAW Speed Test Operating Systems![]() Mac 10.14 Mojave, ![]() Windows 10. Power RequirementsPower Supply1 x External 12V power supply. 12 pin Molex connector for rear battery plate. External Power Input1 x 4 pin XLR port for external power or battery use. 1 x 12 pin Molex connector on rear battery plate. Custom V-mount battery plate with D-tap +12V regulated output from camera. PowerRear camera mount compatible with industry standard V-mount or gold mount battery plates. AccessoriesOptional AccessoriesURSA Mini Pro PL, EF and F Mounts URSA Mini Pro Shim Kit URSA Mini Shoulder Kit including top handle and extender arm URSA Viewfinder URSA Studio Viewfinder URSA Mini Recorder URSA VLock Battery Plate URSA Gold Battery Plate URSA Mini Mic Mount URSA Mini Top Handle URSA Handgrip Blackmagic Camera Fiber Converter Physical Specifications![]() Environmental SpecificationsOperating Temperature0° to 40°C (32° to 104°F) Storage Temperature-20° to 45°C (-4° to 113°F) Relative Humidity0% to 90% non-condensing What's IncludedBlackmagic URSA Mini Pro 12K Body Turret dust cap PL lens mount Power supply DaVinci Resolve Studio activation key ![]() ![]() ![]() |
