General |
Power Requirements |
12 V DC (10.8 V to 13.2 V) (Supplied AC adaptor), 42 V to 57 V DC (PoE++ power supply) |
PoE++ |
IEEE802.3bt standard: DC 42 V to 57 V (Software authentication (LLDP) is supported) |
Current Consumption |
3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply) |
Ambient Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
Allowable Humidity Ranges |
20 % to 90 % (no condensation) |
Storage Temperature |
–20 °C to 50 °C (–4 °F to 122 °F) |
Mass |
Approx. 2.2 kg (4.84 lb) (excluding cable cover, mount bracket) Approx. 2.3 kg (5.06 lb) (including cable cover, excluding mount bracket) |
Dimensions (W x H x D) |
169.2 mm x 204.6 mm x 170.6 mm (6-21/32 inches x 8-1/16 inches x 6-23/32 inches) (excluding protrusions, cable cover, mount bracket) |
Finish |

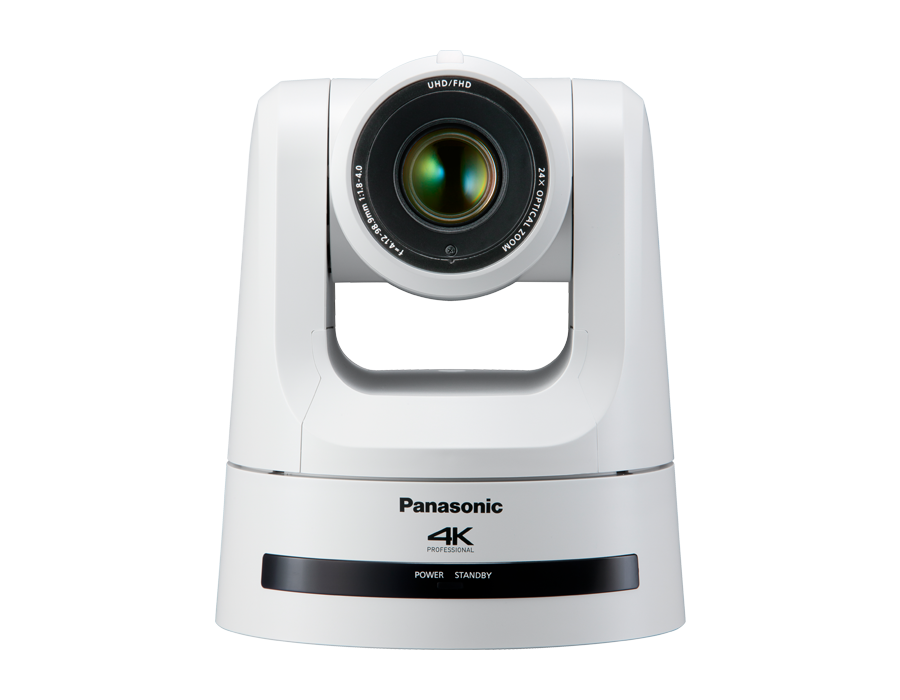

AW‑UE100WP/AW‑UE100WPC/AW‑UE100WE/AW‑UE100WED: Pearl white AW‑UE100KP/AW‑UE100KPC/AW‑UE100KE/AW‑UE100KED: Black |
Controller Supported |
AW-RP150, AW-RP60, AK-HRP1010GJ, AK-HRP1015GJ (Not available in some areas), AK-HRP250GJ |
Camera Unit |
Imaging Sensors |
1/2.5-type 4K MOS x 1 |
Effective Pixels |
Approx. 8,490,000 pixels |
Lens |
Motorized Optical 24x zoom, F1.8 to F4.0 [f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches); 35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)] |
Zoom |
• Optical zoom: 24x • i.Zoom: UHD 28x, FHD 36x • Digital zoom: 1.4x, 2x |
Conversion Lens |
Not supported |
Angle of View Range |
Horizontal angle of view: 74.1° (wide) to 3.3° (tele) Vertical angle of view: 46.0° (wide) to 1.9° (tele) Diagonal angle of view: 81.8° (wide) to 3.8° (tele) |
Optical Filter |
Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
Focus |
Switching between auto and manual |
Focus Distance |
Entire zooming range: 1200 mm (3.9 ft) Wide end: 100 mm (0.33 ft) |
Color Separation Optical System |
1MOS |
Standard Sensitivity |
F4, 2000 lx (When normal mode is selected) F5.6, 2000 lx (When High Sens mode is selected) |
Minimum Illumination |
3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation) |
S/N |
60dB(typ) (When [Shooting Mode] is [Normal]) |
Horizontal Resolution |
1500 TV lines Typ (Center area) |
Gain Selection |
Auto, 0 dB to 36 dB*1 Super Gain function equipped : 37 dB to 42 dB |
Frame Mix*2 |
Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
Electronic Shutter Speed |
59.94p/59.94i |
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
29.97p |
1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
23.98p/24p |
1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
50p/50i |
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
25p |
1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
Synchro Scan |
59.94p/59.94i |
60.00 Hz to 7200 Hz |
29.97p |
30.00 Hz to 7200 Hz |
23.98p/24p |
24.00 Hz to 7200 Hz |
50p/50i |
50.00 Hz to 7200 Hz |
25p |
25.00 Hz to 7200 Hz |
Gamma |
HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3 |
White Balance |
ATW : 3200K, 5600K AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
Chroma Amount Variability |
OFF, –99 % to 99 % |
Scene File |
Scene1, Scene2, Scene3, Scene4 |
Output Format |
SDI Output: 4K |
2160/59.94p, 2160/50p, 2160/29.97p*3, 2160/25p*3, 2160/24p*3, 2160/23.98p*3 |
SDI Output: HD |
1080/59.94p, 1080/50p, 1080/29.97p*3, 1080/29.97PsF, 1080/25p*3, 1080/25PsF, 1080/23.98p*4, 1080/24p*3, 1080/23.98p*3, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
HDMI Output: 4K |
2160/59.94p, 2160/50p, 2160/29.97p*3, 2160/25p*3, 2160/24p*3, 2160/23.98p*3 |
HDMI Output: HD |
1080/59.94p, 1080/50p, 1080/29.97p*3, 1080/25p*3, 1080/23.98p*10, 1080/24p*3, 1080/23.98p*3, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
Synchronization System |
|
Internal/External synchronization (BBS/Tri-level sync) |
Input |
Input Connector |
DC 12 V IN, G/L IN |
BBS (Black Burst Sync), tri-level sync supported 75 Ω terminal (BNCx1) |
MIC/LINE input |
Compatible (SDI/HDMI/IP) AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: Approx. 10 kΩ (unbalanced) • During MIC input Input level: –40 dBV (0 dB=1 V/Pa, 1 kHz) Plug-in power compatible, supply voltage: 2.5 V ± 0.5 V • During LINE input Input level: –10 dBV • Input volume variable range: –36 dB to 12 dB (3 dB step) • Embedded audio output level: –12 dBFS • Sampling frequency: 48 kHz • Quantization bit rate: 24bit (SDI, HDMI), 16bit (IP) |
Output |
Video Output |
HDMI |
HDMI 2.0 connector 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. |
12G-SDI OUT |
SMPTE 2082-1, SMPTE424M/SMPTE292M / 75 Ω (BNC x 1) • Level-A/Level-B supported |
3G-SDI OUT |
SMPTE424M/SMPTE292M / 75 Ω (BNC x 1) • Level-A/Level-B supported |
Input/Output |
Input/Output Connector |
LAN |
LAN terminal for IP control and video transmission (RJ‑45) PoE++ power terminal (IEEE802.3bt compliant) |
RS-422 |
CONTROL IN RS-422A (RJ‑45) |
Pan-tilt Head Unit |
Camera/Pan-tilt Head Control |
IP connecting cable |
LAN cable*5:(category 5e or above, straight cable), max. 100 m (328 ft) |
AW protocol connecting cable |
LAN cable*5:(category 5e or above, straight cable), max. 1000 m (3280 ft) |
Installation Method |
Stand-alone (Desktop) or suspended (Hanging)*6 |
Pan/tilt Operation Speed |
Speed range: 0.08°/s to 60°/s (Normal mode) • 3 speed modes installed Normal: 60°/s, Fast1: 90°/s*7, Fast2: 180°/s*7 |
Panning Range |
±175° |
Tilting range |
–30° to 210°*8 |
Quietness |
NC25 or less |
Supported Operating Systems and Web Browsers*9 |
Supported Operating Systems and Web Browsers |
Windows |
Microsoft® Windows® 10 Microsoft Edge Google Chrome |
Mac |
MacOS 10.13/Safari 13, MacOS 10.14/Safari 13 MacOS 10.15/Safari 13, MacOS 10.15/Google Chrome |
iPhone / iPad |
iOS Safari iPadOS |
Android |
Android OS Google Chrome |
IP Streaming |
Image Streaming Mode |
JPEG (MJPEG), H.264, H.265, NDI®|HX, High Bandwidth NDI® |
Image Resolution |
3840x2160, 1920x1080, 1280x720, 640x360, 320x180 |
Image Transmission Setting (JPEG) |
Frame Rate: Maximum 30 fps Image quality (Fine / Normal) |
Image Transmission Setting (H.264) |
Transmission Type |
Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
Transmission Priority |
Constant bit rate Frame rate Best effort |
Frame Rate |
[60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps) [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps) |
Max Bit Rate |
512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps / 32768kbps / 40960kbps / 51200kbps / 76800kbps |
Image Transmission Setting (H.265) |
Transmission Type |
Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
Frame Rate |
[60Hz] 30fps [50Hz] 25fps |
Max Bit Rate |
8192kbps / 12288kbps / 25600kbps / 51200kbps / 76800kbps |
Audio Compression Type |
AAC-LC, 48 kHz / 16 bit / 2ch |
Supported Protocol |
IPv6 |
TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT, SNMP, MPEG2-TS over UDP |
IPv4 |
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, SNMP, MPEG2-TS over UDP |
Other Function |
NDI support |
NDI®|HX version 2 : Included as standard High Bandwidth NDI®: Included as standard |
Tally LED Display Color |
red / green |
|
