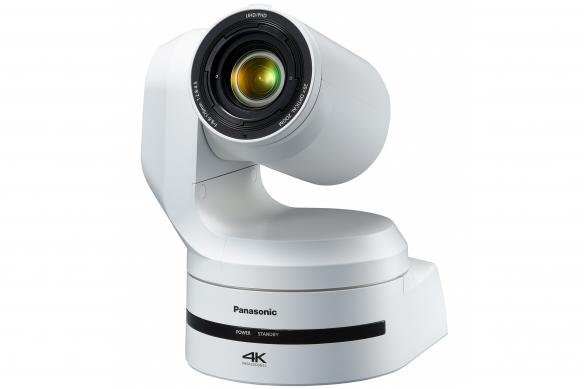

Due to increased PRO PTZ camera installations utilizing existing PoE++ infrastructure, the AW-UE150 unit does not include a standard power supply. If the AW-UE150 will be installed in an area without PoE++, please utilize an IA-70a power supply. XLR 4-PIN: 12 V DC (10.8 V to 13.2 V) PoE++: IEEE 802.3bt (Type 4) Standard DC 42 V to 57 V (Camera Input)
PoE++
IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)
Current consumption
4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Ambient Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity
20 % to 90 % (no condensation)
Storage Temperature
-20 °C to 50 °C (-4 °F to 122 °F)
Mass
Approx. 4.2 kg (9.24 lb) (excluding mount bracket)
Dimensions (W x H x D) (mm)
213 mm x 267 mm x 219 mm (excluding protrusions, direct ceiling mount bracket)
Dimensions (W x H x D) (inch)
8-3/8 inches x 10-1/2 inches x 8-5/8 inches (excluding protrusions, direct ceiling mount bracket)
Finish
AW-UE150WP/AW-UE150WE: Pearl white AW-UE150KP/AW-UE150KE: Black
Controller supported*1
AW-RP150GJ
Camera Unit
---
Imaging Sensors
1-type 4K MOS×1
LENS *
Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches); 35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)]
Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Optical Filter
Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Focus
Switching between auto and manual
Focus Distance
Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft)
Color separation optical system
1MOS
Standard Sensitivity
F9, 2000 lx (When normal mode is selected)
MINIMUM ILLUMINATION
2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
S/N
60 dB or more
Horizontal Resolution
1600 TV lines Typ (Center area)
Gain Selection
Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB
DC 12 V IN, G/L IN (BNC) ・BBS (Black Burst Sync), tri-level sync supported
OUTPUT
-
VIDEO OUTPUT
HDMI HDMI 2.0 standard 4:2:2/10bit ・HDCP is not supported. ・Viera Link is not supported.
12G-SDI OUT SMPTE 2082-1 standard / 75 Ω (BNC x 1)
3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) ・Level-A/Level-B supported
MONI OUT SMPTE292 / 75 Ω (BNC x 1)
Optical Fiber SFP+ standard Single Fiber ・The signal sent is the same as 12G-SDI OUT. ・This unit does not support input by optical signals.
INPUT/OUTPUT
----
Input / Output Connector
LAN LAN connector for IP control (RJ-45)
RS-422 CONTROL IN RS-422A (RJ-45)
MIC/LINE input φ3.5 mm stereo mini jack Input impedance: High impedance ・During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. -40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) ・During LINE input Input level: Approx. -10 dBV ±3 dBV
Pan-tilt Head Unit
-
Camera/pan-tilt head control
IP connecting cable ・LAN cable*6*7 : (category 5e or above, straight cable / crossover cable) max. 100 m (328 ft)
AW protocol connecting cable LAN cable*6 (category 5e or above, straight cable) max. 1000 m (3280 ft)
Installation Method
Stand-alone (Desktop) or suspended (Hanging)*8
Pan/Tilt Operation Speed
Minimum speed 0.08°/s Maximum speed 60°/s or higher*9 ・Maximum speed is 180°/s in high-speed mode
Panning range
±175°
Tilting Range
-30° to 210°*10
Quietness
NC35 or less
Supported operating systems and web browsers*11
-
Supported operating systems and web browsers
Windows Microsoft(R) Windows(R) 7, 10 Windows(R) Internet Explorer(R) 11 (64-bit/32-bit) Microsoft Edge Google Chrome
Mac Mac OS 10.13, Mac OS 10.12, Mac OS 10.11, Safari 11, Google Chrome
iPhone / iPad iOS 11.4.1 Google Chrome
IP Streaming
----
Image Streaming Mode
JPEG (MJPEG), H.264, H.265
Image Resolution
3840×2160, 1920×1080, 1280×720, 640×360, 320×180
Image Transmission setting (JPEG)
Frame Rate: Maximum 30 fps Image quality (Fine / Normal)
*1: AW-RP50, AW-RP120G, AK-HRP1000GJ and AK-HRP1005GJ connection with the AW-UE150W/K is planned for future support. Contact your sales representative for further information on when support will be available for this feature. Use may require a software version update. *2: 1 dB step increments can be set. *3: This cannot be configured when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p(59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF. *4: Native output. *5: It denotes “1080/23.98p over 59.94i”. *6: Use of an STP (shielded twisted pair) cable is recommended. *7: Category 6 or more is used when sending 4K images. *8: To ensure safety, the unit must be secured using the mount bracket supplied. *9: Quietness, stationary accuracy, etc., in high-speed mode may vary from normal mode. *10: Depending on the pan or tilt position, the camera may be reflected in the image. *11: Supported OS indicated are for browsers current as of October 2018. See Service and Support on the Panasonic website (https://pro-av.panasonic.net/en/) for the latest information on browser support. *12: Contact your local Panasonic vendor for further information.
