รายละเอียดสินค้า |

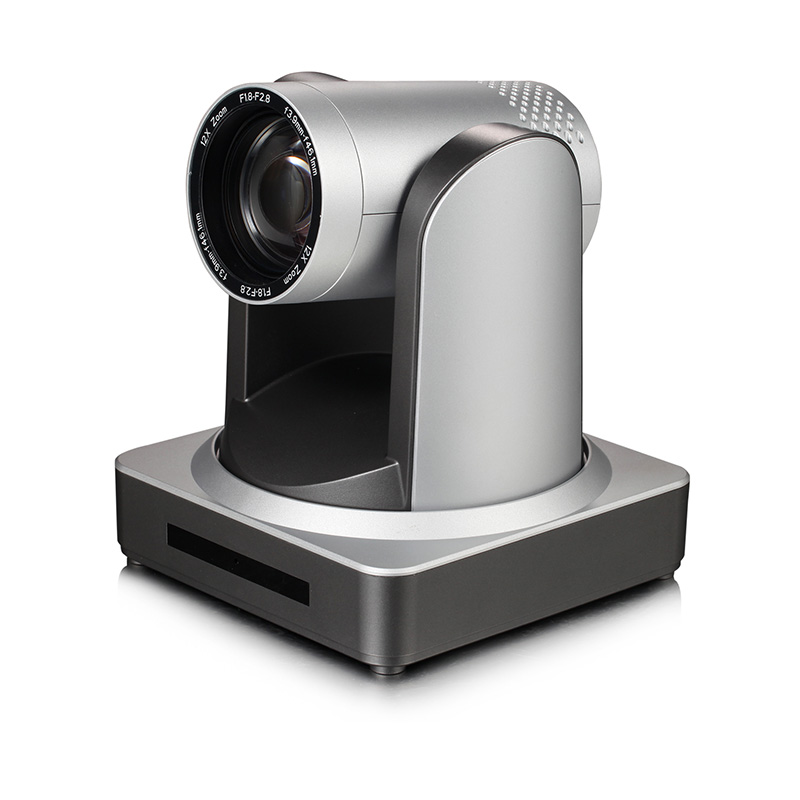

Model
|
UV510A-05
|
UV510A-10
|
UV510A-12
|
UV510A-20
|
UV510A-30
|
Camera Parameter
|
Sensor
|
1/2.8 inch high quality HD CMOS sensor
|
Effective Pixels
|
16: 9,2.07 megapixel
|
Video Format
|
HDMI/SDI/HDBaseT video format
1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97
U3 interface video format:
1) U3: 1920X1080P60/50/30/25;1280X720P60/50/30/25;960X540P30;640X360P30;640X480P30;352X288P30;800X600P30;
2) U3 compatible with U2:960X540P30;640X360P30;1280X720P10/15;720X576P50;720X480P60;640X480P30;352X288P30;800X600P30.
U2 interface video format:
176x144/320x240/320x180/352x288/640x480/720x480/720x576/
640x360/800X600/960X540/1024X576/1024X768/1280X720/1920X1080P30/25/20/15/10/5
|
Optical Zoom
|
5X
f=3.1~15.5mm
|
10X
f=4.7~47mm
|
12X
f=3.9~46.8mm
|
20X
f=5.5~110mm
|
30X
f=4.3~129mm
|
View Angle
|
20°(tele)--83.7°(wide)
|
6.43°(tele)--60.9°(wide)
|
6.3°(tele)--72.5°(wide)
|
3.3°(tele)--54.7°(wide)
|
2.34°(tele)—65.1°(wide)
|
AV
|
F1.8 – F2.8
|
F1.6 – F3.0
|
F1.8 – F2.4
|
F1.6 – F3.5
|
F1.6 – F4.7
|
Digital Zoom
|
10X
|
Minimum Illumination
|
0.5Lux (F1.8, AGC ON)
|
DNR
|
2D & 3D DNR
|
White Balance
|
Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
|
Focus
|
Auto/Manual/One push focus
|
Aperture/Electronic Shutter
|
Auto/Manual
|
BLC
|
ON/OFF
|
WDR
|
OFF/ Dynamic level adjustment
|
Video Adjustment
|
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
|
SNR
|
>55dB
|
Input/Output Interface
|
Video Interfaces
|
UV510A-ST model:SDI,HDMI,LAN,RS232(input & output),RS485,A-IN, NDI(optional)
UV510A-U2 model:USB2.0,LAN,RS232(input & output),A-IN
UV510A-U3 model:USB3.0,LAN,RS232(input & output),A-IN
UV510A-HD model:HDBaseT(POE),LAN,A-IN,RS232(input)
UV510A-HM model:HDMI,LAN,RS232(input)
UV510A-U2U3 model:USB2.0,USB3.0,HDMI,LAN,RS232(input)
UV510A-RF model:WiFi(RF),LAN
|
Video Output Interfaces
|
HDMI, SDI, LAN(POE for options), USB3.0, USB2.0
|
Image Stream
|
Double stream output
|
Video Compression Format
|
H.264, H.265
|
Control Protocol
|
VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps
|
Audio Input Interface
|
A-IN: Double track 3.5mm linear input
|
Audio Compression Format
|
AAC/MP3/G.711A
|
Network Interface
|
100M IP port(100BASE-TX), 5G WiFi (optional)
|
Network Protocol
|
RTMPS, RTSP, RTMP, ONVIF, GB/T28181, Network VISCA Control Protocol, Support remote upgrade, reboot and reset.
|
Control Interface
|
RS232(input & output),RS485
|
Power Interface
|
HEC3800 outlet (DC12V),2pin waterproof aerial socket(RF model)
|
Power Adapter
|
Input: AC110V-AC220V; Output: DC12V/1.5A
|
Input voltage
|
DC12V±10%
|
Input current
|
1A (Maximum)
|
Power Consumption
|
12W(Maximum)
|
RF parameter
|
Operating frequency range
|
5.1—5.9 (GHz)
|
Transmit power
|
17dBm
|
Channel bandwidth
|
40MHz
|
Modulation mode
|
OFDM
|
Transmission distance
|
≤300m(Outdoor without blocking),≤150m(Indoor without blocking)
|
Transmission data rate
|
Max 300Mbps(Determined by transmission distance and channel occupancy)
|
Anti-interference mode
|
Manual/automatic channel mode selection
|
PTZ Parameter
|
Pan/TiltRotation
|
±170°,-30°~+90°
|
Pan Control Speed
|
0.1 -60°/sec
|
Tilt Control Speed
|
0.1-30°/sec
|
Preset Speed
|
Pan: 60°/sec, Tilt: 30°/sec
|
Preset Number
|
255 presets (10 presets by remote controller)
|
Other Parameter
|
Stored Temperature
|
-10℃~+60℃
|
Stored Humidity
|
20%~95%
|
Working Temperature
|
-10℃~+50℃
|
Working Humidity
|
20%~80%
|
Dimension
|
150mm×150mm×167.5mm
|
Weight (around)
|
1.4KG
|
Application
|
Indoor
|
Accessory
|
Package
|
Power supply, RS232 control cable, USB3.0 connection cable (U3 model), USB2.0 connection cable (U2 model), Remote controller, User manual
|
Optional Accessories
|
Ceiling / Wall Mount (Extra Cost)
|
|
