Achieving 4K Video Production with a Compact, Versatile Switcher

This feature-rich, multi-format switcher for 4K and HD productions extends Panasonic's legacy of producing high-quality, reliable switchers. With its compact, integrated body, this live switcher is equipped with many functions found in high end models and delivers 4K video production with the same operability as HD.

In addition to fixed installations such as university lecture halls and corporate conference rooms, the AV-UHS500 is well suited for remote production. Designed for easy portability and simple set up it should become a favorite tool for staging and other event production.

Remote live productionNEW

The NDI I/F Unit AV-UHS5M6G for the compact Live Switcher AV-UHS500 provides NDI®* support for the AV-UHS500 and is installed into one of the optional slots on the main unit. This enables the usage of IP transmission resources through high bandwidth NDI®* and NDI®|HX* (Version 1 and Version 2) in addition to conventional SDI and HDMI signals, without the need for external converters.

High bandwidth NDI®* signal output can also be forwarded to other devices that support NDI®* and can get checked from remote locations. Up to two units can be attached to each AV-UHS500, providing expansion to a maximum of eight NDI®* input lines and four NDI®* output lines (when in 2K mode).



When used in combination with Panasonic cameras that support high bandwidth NDI®* or NDI®|HX*, operations from video transmission to camera control and tally output can be performed with a single LAN cable. Both video transmission and camera control operation can be performed remotely, making remote live video production a reality.

NDI® transmission with up to four inputs and two outputs per unit
Number of NDI inputs/outputs (per NDI I/F Unit)

System Mode Input Output
HB NDI® NDI®|HX
2K 4 - 2
3 1
2 2
4K 1 - 1
  • * Use an NDI® signal format that matches the system format.When the system mode is set to 1080i, 1080p NDI® signals can also be used.
  •



NDI® resource search and selection made easy

NDI® resources on the network can be searched for and selected from a list with ease. No complex network configuration is required.


12G-SDI/3G-DI/HDMI/NDI® Support

  • * NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow. NDI® is a registered trademark of NewTek, Inc. in the United States and other countries. In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI® | HX is used to indicate high efficiency low bandwidth NDI® | HX.

Versatile Transitions and Effects

In addition to standard wipe, mix, and cut transitions, a variety of DVE transitions patterns using two channels, such as reduce, slide, squeeze and 3D wipe are available in HD mode. DVE transitions can also be used in 4K by adding a 4K DVE Unit AV-UHS5M5G.

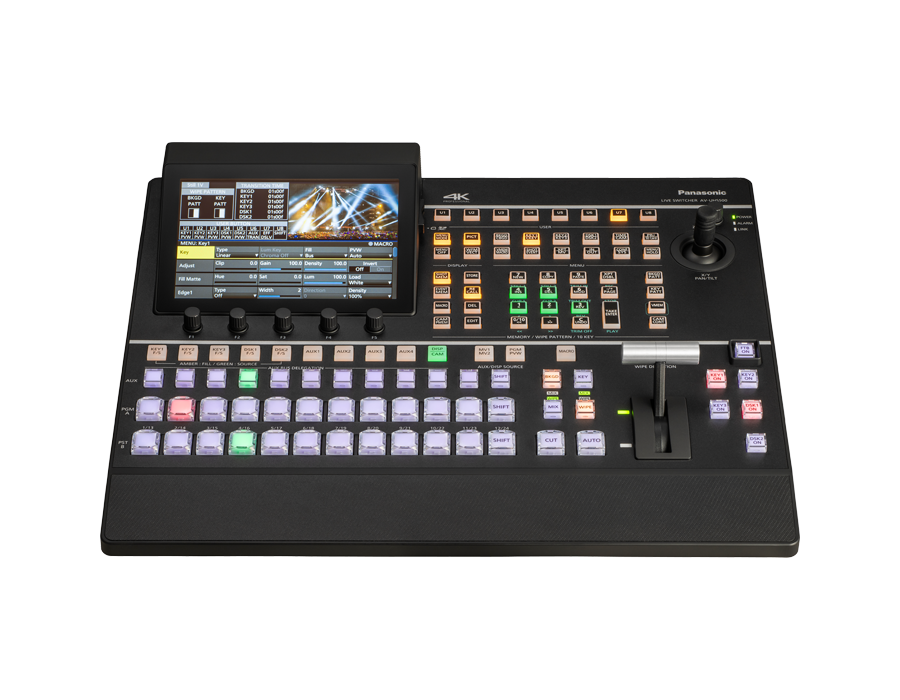

Panasonic AV-UHS500 4K 12G-SDI HDMI Professional Live Video Production Switcher
Panasonic AV-UHS500 4K 12G-SDI HDMI Professional Live Video Production Switcher
Panasonic AV-UHS500 4K 12G-SDI HDMI Professional Live Video Production Switcher
