PRODUCT HIGHLIGHTS
  • 3 x SDI Inputs, 2 x HDMI Inputs
  • Internal I to P Processing
  • Multi-View HDMI Output
  • HDCP Compliant
  • USB and RS-232 Remote Control Ports
  • Eight Memory Functions
  • Freeze Input, and Output Fades

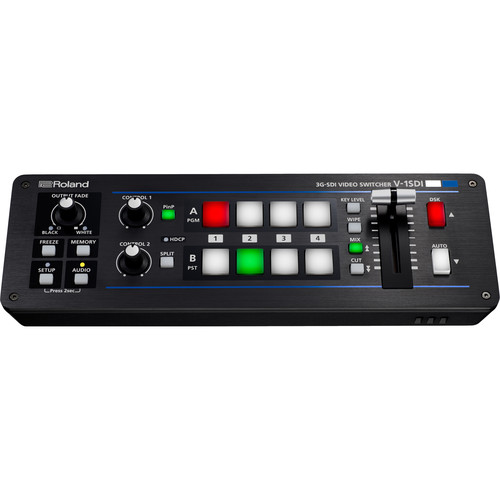

Roland's V-1SDI 4-Channel HD Video Switcher
supports HD-only video signals over three of its inputs, and can support SD, HD, and computer video formats up to 1920 x 1200 (WUXGA) at 60 Hz on its fourth. It supports progressive and interlaced material, internally converting the interlaced footage to progressive for processing. Featuring a preview, program, and multi-view output, you can easily monitor all your inputs at once on the multi-view while isolating your preview and program screens.

The HDMI inputs and multi-view output are HDCP compliant, while the SDI inputs and SDI preview and program outputs support SMPTE 424M (SMPTE 425M-AB), 292M, and 259M-C. You can control the unit via the built-in RS-232 port, or via a PC using the USB connection. Eight memory functions enable you to recall specific setups, which makes it easier to get up and running when the switcher is shared among different productions. Built-in features include image freeze and output fades.

Video Input
The switcher handles four video inputs, up to three SDI and up to two HDMI. Inputs 1 to 3 are SDI, with input 3 shared between SDI and HDMI with support for HD video formats. Input 4 is HDMI-only and, in addition to supporting HD video, also supports SD and computer formats.

Audio Input
The switcher supports analog audio on as well as mic input with or without plug-in power.

Video Effects
Transition: Cut, Mix (Dissolve/Fam/Nam/Mosaic), Wipe (30 types)
Composition: PiP, Split, Quad, DSK (Luminance key, Chroma key)

Audio Effects
EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect

Multi-Viewer
This output can display all active inputs on the same screen via the HDMI output.

Functions
The built-in memory function allows the memorization and convenient recall of panel settings, such as effect assignment to each button. The memory stores up to eight configurations and keeps stored settings, even with the power off
Freeze video input
Fade audio output
Fade video to white or black

HDCP
The V-1SDI HDMI inputs and outputs are HDCP compliant.

SPECIFICATIONS
Video Processing 8-bit 4:2:2 (Y/Pb/Pr)
Audio Processing 24-bit at 48 KHz
SDI Inputs 1 to 3
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50

Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C
HDMI Input 3
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50

HDCP supported

Input 4
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
480p: 59.94
576p: 50
480i: 59.94
576i: 50
WUXGA: 1920 x 1200 @ 60 Hz
UXGA: 1600 x 1200 @ 60 Hz
SXGA+: 1400 x 1050 @ 60 Hz
FWXGA: 1366 x 768 @ 60 Hz
SXGA: 1280 x 1024 @ 60 Hz
WXGA: 1280 x 768 @ 60 Hz
XGA: 1024 x 768 @ 60 Hz
SVGA: 800 x 600 @ 60 Hz
VGA: 640 x 480 @ 60 Hz

HDCP supported

Program & Preview Output SDI
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50

Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C
Multi-View HDMI
HDCP supported
Input Level Audio In: -10 dBu (Maximum: +8 dBu)
Mic: -41 to -13 dBu (Maximum: -1 dBu)
Output Level Audio Out: -10 dBu (Maximum: +8 dBu)
Phones: 92 mW + 92 mW (32 Ohms)
Input Video
3 x SDI, BNC
2 x HDMI Type A

Audio
Analog: RCA phono
Mic: Stereo mini jack
Output Program
1 x HDMI Type A
1 x HD DB-15 type (RGB/component)
1 x BNC (composite)

Preview
1 x HDMI Type A

Audio
Analog: RCA phono
Headphones: Stereo mini jack
Remote USB Type B (for remote control from PC)
RS-232: DB-9
Audio Impedance Input
Audio: 15 kOhms
Mic: 10 kOhms

Output
Audio: 1 kOhms
Phones: 10 Ohms
Power Supply (AC) AC adapter
Current Draw 2.1 A
Power Consumption 25 W
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions (H x W x D) 12.3 x 4.3 x 2.3" / 31.3 x 10.8 x 5.9 cm
Weight 2.6 lb / 1.2 kg (excluding AC adapter)

Package Weight 4.65 lb
Box Dimensions (LxWxH) 16.2 x 9.8 x 5.3"
Roland V-1SDI 4-Channel HD
Roland V-1SDI 4-Channel HD
Roland V-1SDI 4-Channel HD
Roland V-1SDI 4-Channel HD
Roland V-1SDI 4-Channel HD
Roland V-1SDI 4-Channel HD
