Maximum Connectivity
The V-8HD seamlessly mixes eight HDMI sources with Full HD support, even when the sources have mismatched frame rates and color spaces. And with the built-in scalers on two of the HDMI inputs, you can easily interface with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.

More HDMI Inputs and Outputs
With the V-8HD's eight HDMI inputs and three outputs, you're able to offer clients a vast amount of creative freedom, without increasing the budget.
Set Up Layers, Effects, and Keys
With the V-8HD's five composition layers, you'll always keep audiences engaged with visually appealing content.
Ultra-Mobile, Lightweight, and Efficient
Thanks to its compact footprint, the V-8HD fits effortlessly into any live production environment, even when you have to deal with minimal setup space. And it only weighs around 4 lb, making it easy to carry in a backpack or luggage. With its smart feature set, eight HDMI inputs, built-in 18-channel audio mixer, and support for external battery power, the streamlined V-8HD is a versatile and efficient HDMI switcher.

Seamless Memory Recall
With the V-8HD, storing and recalling unique looks requires only a few button presses. The eight memory presets and powerful composition effects engine work together to provide a completely seamless load between the different looks.

Separate Feeds for Separate Needs
The V-8HD has assignment buttons for sending any of your connected input devices to a dedicated aux output without affecting the main feed. It's also possible to synchronize the aux output with the program output, giving you a built-in 2x distribution amp.

Built-In Multiviewer Display
The V-8HD's bright, 4.3" multiviewer display means less gear to buy and haul to the gig. From a single screen, you can monitor all eight video inputs, PGM, and PVW plus menu overlay. Input windows show camcorder recording status and embedded audio levels. Connect a larger external TV for an immense multiviewer experience, or to make menu changes without moving the focus from the action.

Audio and Effects
The studio-grade, 18-channel audio mixer blends signals from the eight HDMI inputs and stereo RCA inputs, while a feature-packed preset effects library provides setups for everyday production environments like meetings and interviews, plus challenging situations that require wind noise reduction and microphone de-essing.

Automated Video Switching
Input Scan switches input sources randomly or in sequence, while Preset Memory Scan switches between preset memories. Beats per Minute (BPM) Sync is also available, automatically switching Preview and Program at a specified tempo.

Record Triggering and Confirmation
Via HDMI, the V-8HD operator can trigger Atomos recorders to start and stop recording. And some camcorders even display a recording confirmation icon on the input channel of the V-8HD's multiviewer screen, letting you keep an eye on the recording status while staying focused on other critical tasks.

V-8HD iPad Remote Control Utility
The dedicated V-8HD remote control app turns an iPad into an efficient touch interface for the V-8HD. Run essential switching functions, mix audio with virtual faders, change settings and effect parameters quickly, and create up to eight custom scenes for fast, efficient setup changes.

Hands-Free Switching and Control
Stomp on a BOSS single or double footswitch to execute over 100 different switcher commands. Cut to a still image, transition PiP on/off the screen, or drop in a keyed lower-third title. It's also possible to switch the aux output between presenter notes and stage manager messages, turn automatic switching mode on/off, and more.

SPECIFICATIONS
VIDEO
Video Processing
4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors
INPUT 1--6: HDMI type A x 6
* HDCP Supported

INPUT 7--8: HDMI type A x 2
* HDCP Supported
* Multi-format Supported

Output Connectors
OUTPUT 1--3: HDMI type A x 3
* HDCP Supported

Supported Video Input Formats
INPUT 1-6
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz
*4 FRAME RATE = 50 Hz

INPUT 7-8
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640×480/60Hz), SVGA (800×600/60Hz), XGA (1024×768/60Hz)
WXGA (1280×800/60Hz), SXGA (1280×1024/60Hz)
FWXGA (1366×768/60Hz), SXGA+ (1400×1050/60Hz)
UXGA (1600×1200/60Hz), WUXGA (1920×1200/60Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz
Still Image
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 8 files in the internal memory.
* PNG alpha channel not supported.
Supported Video Output Formats
OUTPUT 1-2:
720/59.94p *1, *4
720/50p *1, *5
1080/59.94i *2, *4
1080/50i *2, *5
1080/59.94p *3, *4
1080/50p *3, *5
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i
*3 SYSTEM FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 50 Hz

OUTPUT 3:
1080/59.94p *1
1080/50p *2
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz

Video EffectsTransition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
Composition: PinP x 2 (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key)
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output

AUDIO
Audio Processing
Sampling rate: 24 bits/48 kHz
Audio formats
Linear PCM, 24 bits/48 kHz, 2ch
Audio Effects
Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output

CONNECTORS
Input Connectors
INPUT 1--8: HDMI Type A x 8
AUDIO IN: RCA phono type
Output Connectors
OUTPUT 1--3: HDMI Type A x 3
AUDIO OUT: RCA phono type
PHONES: Stereo miniature type
Other Connectors
USB MEMORY: USB A type (for USB flash drive)
REMOTE:USB B Type (for remote control from iPad)
CTL/EXP:1/4-inch TRS phone type

Other Functions
Preset Memory (8 types)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect

AUDIO INPUT/OUTPUT CHARACTERISTICS
Input Level
AUDIO IN: -10 dBu (Maximum: +8 dBu)
Input Impedance
AUDIO IN: 38 k ohmsOutput Level
AUDIO OUT: -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
AUDIO OUT: 1 k ohm
PHONES: 10 ohms

OTHER
Display
4.3 inches TFT Color LCD: 480 x 272 dots
Power Supply
AC Adaptor
Current Draw
3.3 A
Power Consumption
39.6 W
Dimensions
317 (W) x 193 (D) x 70 (H) mm
12-1/2 (W) x 7-5/8 (D) x 2-13/16 (H) inches
Weight2.0 kg
4 lbs 7 oz
* Excluding AC adaptor.
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit

Accessories
Owner's Manual
AC adaptor
Power cord

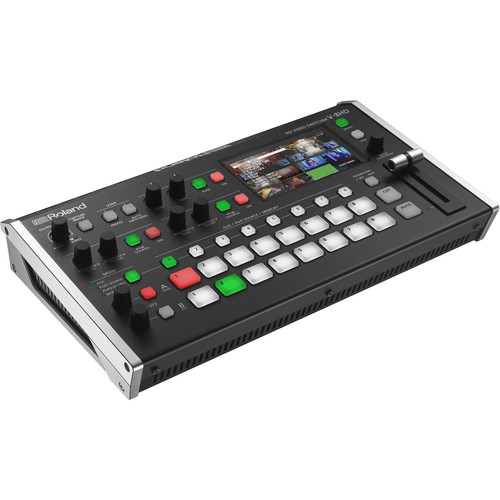

Roland V-8HD HDMI Video Switcher
Roland V-8HD HDMI Video Switcher
Roland V-8HD HDMI Video Switcher
