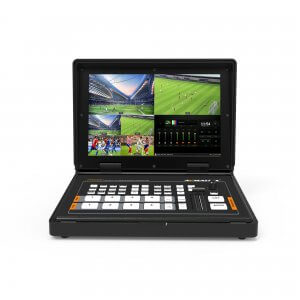

AV SWITCHER PVS0403U Portable4-CH SDI&HDMI Video Switcher



10.1 inch FHD IPS LCD monitor2xHDMI & 2x3G-SDI inputs, support auto-detected2XHDMI PGM output, 1*HDMI multiview out, 1xUSB type-C outputAll outputs are confgurable and assignableUSB for capturing and streaming on PcUpstream key: Luma key, Chroma key, PIP*2/ POPDownstream key and LOGO overlayT-barl Autol Cut transitions; various effects: WIPE(11x2 patterns) / MIXI DIPAudio mixer: 2xSDI, 2xHDMI embedded audio and 2xMICline In; audio delay availableMedia library: 39 default patterns, 16 imported images, 16 captured images, 2 color generatorsLAN port for PC software remmote controlFTB/ MUTE/ STILL GPIO for tally

10.1 InchIPS FHD Display

The all-in-one switcher with an integrated 10.1 inch FHD IPS screen and solidmetal case. You can clearly view PVW.PGM with audio bar, multiviewer, clock and menu setting on the screen.

Scaled Output & Multiview

Flexible to accept 4 input sources with different format and frame rate, with build-in scaler, PGM output can be scaled to 1080i and 1080p. And Multiview output make it easy to monitor 4 channels sources as well as PVW and PGM simultaneously on one display.

Scaled Output & Multiview

Flexible to accept 4 input sources with different format and frame rate, with build-in scaler, PGM output can be scaled to 1080i and 1080p. And Multiview output make it easy to monitor 4 channels sources as well as PVW and PGM simultaneously on one display.

2 PIP/POP

The switcher has 2 PIP function that it can overlay 2 sub-screen into the PGM out, and the size and postion of sub-screen can be adjusted. Besides, user can use POP to have two same-size screens overlay into PGM out.

USK & DSK

The switcher supports chroma key and luma key, which is convenient for users to key off blue/green and black background colors for virtual studio or live event applications. Besides, User can gain an exact color level by using the color picking, clip and gain key adjustment.
LOGO OverlayUser can add a logo from USB fash disk into PGM. The logo's size and position can be adjusted, and the logo image can be PNG, JPG, BMP, etc. format.

Transition Effects

There are WIPE(11*2 patterns), MIX and DIP transition effects available from the switcher. The transition effect works for switching via AUTO and T-Bar. User also can have transition without effect by switching via CUT.

Audio MIXING /AFV

The switcher can mix 2 HDMI and 2 SDI embedded audio and 2 external analog audios (Mic/ Line-level)into the PGM out. User can turn on/off or adjust volume or audio delay for each audio independently. In addition, 2 HDMI and 2 SDI embedded audios can be set to AFV mode.

Media Management

The video switcher has a powerful built-in media management function with 39 preset patterns. User also can import image from USB flash disk, or capture and store the screenshot image.
PC Control SoftawareA free PC control software can be downloaded from website. User can remotely control all settings of the device through the control software, including transition effects, audio configuration, multiview settings and media management, etc.
AVMatrix PVS0403U Portable 10.1 inch 4-CH | x2 3G SDI & x2 HDMI Video Switcher
AVMatrix PVS0403U Portable 10.1 inch 4-CH | x2 3G SDI & x2 HDMI Video Switcher
AVMatrix PVS0403U Portable 10.1 inch 4-CH | x2 3G SDI & x2 HDMI Video Switcher
AVMatrix PVS0403U Portable 10.1 inch 4-CH | x2 3G SDI & x2 HDMI Video Switcher
AVMatrix PVS0403U Portable 10.1 inch 4-CH | x2 3G SDI & x2 HDMI Video Switcher
