SDI Video Inputs
1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
จำนวนชิ้น | ส่วนลดต่อชิ้น | ราคาสุทธิต่อชิ้น |
{{(typeof focus_pdata.price_list[idx+1] == 'undefined')?('≥ '+price_row.min_quantity):((price_row.min_quantity < (focus_pdata.price_list[idx+1].min_quantity - 1))?(price_row.min_quantity+' - '+(focus_pdata.price_list[idx+1].min_quantity - 1)):price_row.min_quantity)}} | {{number_format(((focus_pdata.price_old === null)?focus_pdata.price:focus_pdata.price_old) - price_row.price,2)}} บาท | {{number_format(price_row.price,2)}} บาท |
คงเหลือ | ไม่จำกัด ชิ้น |
จำนวน (ชิ้น) |
- +
|
ซื้อเลย หยิบลงตะกร้า ซื้อเลย หยิบลงตะกร้า คุณมีสินค้าชิ้นนี้ในตะกร้า 0 ชิ้น
|
|
|
|
คุยกับร้านค้า | |
{{ size_chart_name }} |
|
หมวดหมู่ | Blackmagic |
สภาพ | สินค้าใหม่ |
เพิ่มเติม | |
สภาพ | สินค้ามือสอง |
เกรด | |
สถานะสินค้า | |
ระยะเวลาจัดเตรียมสินค้า | |
เข้าร่วมโปรโมชั่น | |
ข้อมูล |
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
|
รายละเอียดสินค้า |
Description

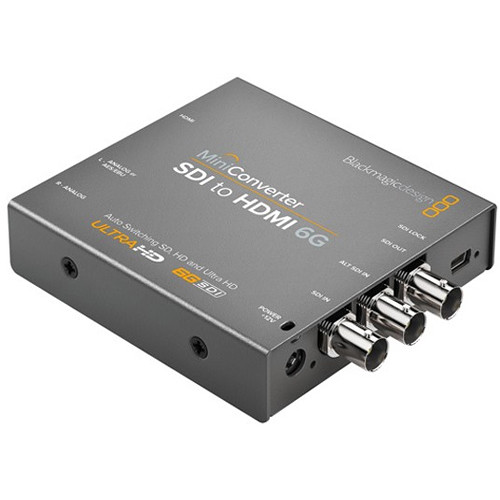

Mini Converter SDI to HDMI 6G lets you convert from SDI to HDMI in SD, HD, and Ultra HD formats while de-embeding audio to HDMI, AES/EBU or balanced analog audio. You also get advanced features such as down conversion for monitoring Ultra HD on HD HDMI monitors as well as built in 3D LUTs plus HDMI instant lock for instant video display when an SDI input is connected!ConnectionsSDI Video Inputs1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs1 x SDI Video Loop Output. HDMI Video OutputsHDMI type A out. Analog Audio Outputs2 channels of balanced analog audio. Digital Audio Outputs4 channels of AES/EBU digital audio StandardsSD Video Standards625i50 PAL, 525i59.94 NTSC HD Video Standards720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Video Standards2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601 SDI Video RatesSDI video inputs are automatically detected between standard definition and high definition. SDI Video Sampling4:2:2 and 4:4:4 SDI Audio SamplingTelevision standard sample rate of 48 kHz and 24 bit. SDI Color Precision4:2:2 and 4:4:4 SDI Color SpaceYUV and RGB SDI Auto SwitchingAutomatically detects SD, HD or 6G‑SDI. HDMI Video Standards625i50 PAL, 525i59.94 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 HDMI Color SpaceYUV and RGB HDMI Color Precision4:2:2 and 4:4:4 SoftwareSoftware ControlMac OS and Windows software upgrade via USB. Internal Software UpgradeVia included updater application. SDI Redundant InputAutomatically switches over if main SDI input is lost. Multi Rate SupportAuto detection of SD, HD or 6G‑SDI. Updates and ConfigurationUSB ReclockingYes ![]() |
เงื่อนไขอื่นๆ |
เช็ค Stock และราคาสินค้ากับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
|
Tags |
