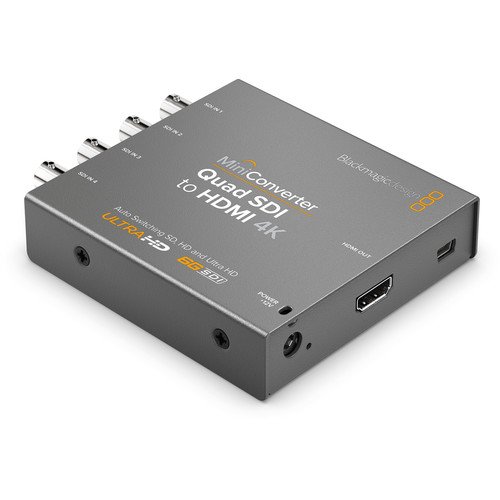

Blackmagic Design Mini Converter Quad SDI to HDMI 4K
PRODUCT HIGHLIGHTS
- Single, Dual, and Quad Link SDI Input
- Single Link 6G-SDI
- Dual Link 3G-SDI & Quad Link HD-SDI
- 4K HDMI Output
- SD, HD, UHD 4K & DCI 4K Resolutions
- Automatic Input Signal Detection
- 24-bit, 48 kHz Audio
- Control via DIP Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
-
ideo Input 4 x BNC connectors: 4 x HD-SDI
2 x 3G-SDI redundant input
1 x 6G-SDIVideo Output 1 x HDMI, type A Multi-Rate Support Auto detection of 6G-SDI or standard definition on Input 1 Reclocking Yes Format Support SD:
NTSC 525/29.97 and 525/23.98
PAL 625/25HD:
720p 50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/602K:
2048x1080PsF 23.98/24/25
2048/1080p 23.98/24/25UHD/4K
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M, and SMPTE 425M SDI Video Rates Switchable between SD, HD, and 6G SDI SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling 24-bit, 48 kHz SDI Color Precision 4:2:2 and 4:4:4 SDI Color Space YUV and RGB SDI Auto Switching Automatically detects SD, HD, or 6G-SDI HDMI Format Support SD:
NTSC 525/23.98 and 525/29.97
PAL 625/25HD:
720p 50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/602K:
2048x1080p 23.98/24/25UHD/4K
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24HDMI Color Precision 4:2:2 and 4:4:4 HDMI Color Space YUV and RGB USB Interface 1 x USB 2.0, Mini-B Settings Control DIP switches or USB software for Mac OS X and Windows Firmware Updates Via USB 2.0 Power Supply 12 VDC Power Consumption 5.2 W Operational Voltage Range 12 to 30 VDC Operating Temperature 32 to 104° F (0 to 40 ° C) Storage Temperature -4 to 113° F (-20 to 45 ° C) Relative Humidity 0 to 90% non-condensing Dimensions (WxHxD) 4.33 x 0.90 x 3.63″ (11.0 x 2.3 x 9.2 cm) Weight 9.06 oz (256.85 g)
