SDI Video Inputs
1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
จำนวนชิ้น | ส่วนลดต่อชิ้น | ราคาสุทธิต่อชิ้น |
{{(typeof focus_pdata.price_list[idx+1] == 'undefined')?('≥ '+price_row.min_quantity):((price_row.min_quantity < (focus_pdata.price_list[idx+1].min_quantity - 1))?(price_row.min_quantity+' - '+(focus_pdata.price_list[idx+1].min_quantity - 1)):price_row.min_quantity)}} | {{number_format(((focus_pdata.price_old === null)?focus_pdata.price:focus_pdata.price_old) - price_row.price,2)}} บาท | {{number_format(price_row.price,2)}} บาท |
คงเหลือ | ไม่จำกัด ชิ้น |
จำนวน (ชิ้น) |
- +
|
ซื้อเลย หยิบลงตะกร้า ซื้อเลย หยิบลงตะกร้า คุณมีสินค้าชิ้นนี้ในตะกร้า 0 ชิ้น
|
|
|
|
คุยกับร้านค้า | |
{{ size_chart_name }} |
|
หมวดหมู่ | Blackmagic |
สภาพ | สินค้าใหม่ |
เพิ่มเติม | |
สภาพ | สินค้ามือสอง |
เกรด | |
สถานะสินค้า | |
ระยะเวลาจัดเตรียมสินค้า | |
เข้าร่วมโปรโมชั่น | |
ข้อมูล |
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
|
รายละเอียดสินค้า |

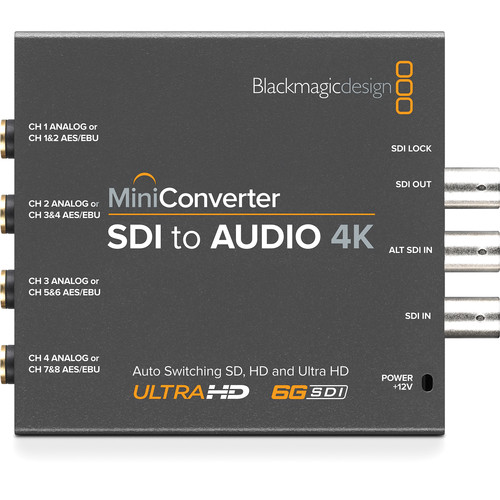

Blackmagic Mini Converter SDI to Audio 4K Mini Converter SDI to Audio 4K includes everything you need to de‑embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more! ConnectionsSDI Video Inputs1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs1 x SDI Video Loop Output. SDI Redundant InputsAutomatically switches over if main SDI input is lost. Analog Audio Outputs4 channels of professional balanced analog audio with standard 1/4 inch jack connections. StandardsSD Video Standards525i59.94 NTSC, 625i50 PAL HD Video Standards720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Video Standards2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601 SDI Video RatesSDI video inputs are automatically detected between standard definition and high definition. SDI Video Sampling4:2:2, 4:4:4 SDI Audio SamplingTelevision standard sample rate of 48 kHz and 24 bit. SDI Color Precision4:2:2, 4:4:4 SDI Color SpaceYUV, RGB SDI Auto SwitchingAutomatically selects between SD, HD, 3G and 6G‑SDI.
SoftwareSoftware ControlMac™ and Windows™ software upgrade via USB. Internal Software UpgradeVia included updater application. Digital Audio Outputs8 channels of professional balanced digital with standard 1/4 inch jack connections. Multi Rate SupportAuto detection SD, HD or 6G‑SDI. Updates and ConfigurationUSB ReclockingYes ![]() |
เงื่อนไขอื่นๆ |
เช็ค Stock และราคาสินค้ากับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
|
Tags |
