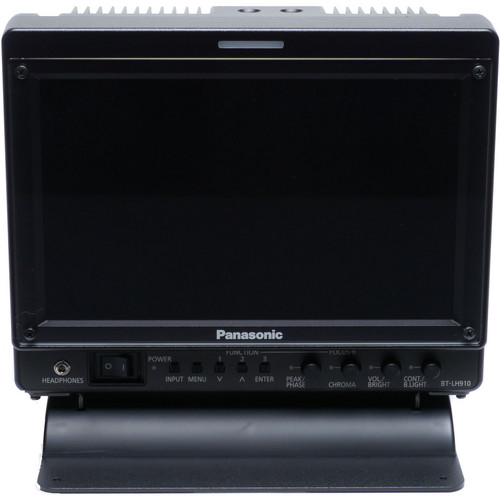

Panasonic BT-LH910GJ 9 LCD HDMI SDI Field Monitor (Gold Mount)

Screen Size

9" (23cm) of effective display area

Aspect Ratio

15:9

Resolution

1280 x 768 (WXGA)

Display Colors

Approx. 16,770,000 colors

Viewing Angle

176° both of horizontal and vertical

Video Input

Video: BNC x 1
Y/PB/PR: BNC x 3 (Y shares with Video)
HDMI: HDMI (type A) x 1 (HDCP supported, embedded audio supported, VIERA Link not supported)
SDI: BNC x 2 (active through connector x 2), SMPTE274M/296M/259M-C/ITU-R BT.656-4 compliant Embedded Audio
HD-SDI: SMPTE299M compliant
SD-SDI: SMPTE272M compliant
VF: D-SUB, 15 pins x 1

Headphone Output

M3 stereo mini jack x 1

Remote

GPI: D-SUB, 9 pin
SERIAL: D-SUB, 9 pin

Power Input

XLR, 4 pin

Operating Temperature

32 to 104°F (0 to 40°C)

Power Requirements

12 VDC (11.0 V - 17.0 V), 1.9 A

Dimensions (WxHxD)

9.06 x 7.20 x 3.06" (230 x 183 x 78 mm) - without stand

Weight

3.7lb (1.7kg)
