รายละเอียดสินค้า

LCD 9" (22.8 cm)
a-Si TFT Active Matrix LCD
Resolution 1920 x 1080
Aspect Ratio 16:9
Effective Picture Size (H x V) 7.8 x 4.5" (19.9 x 11.4 cm)
Pixel Efficiency 99.99%
Scan Modes Normal: 0%
Over: 5%
Color Gamut SMPTE C
EBU
ITU-R BT709
Viewing angle (L/R/T/B) 89°/89°/89°/89°



General
Video Formats HD
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98

720 x 576p/50
720 x 480p/60/59.94
640 x 480p/60/59.94

SD
NTSC
PAL
Input and Output Connectors Video Input
Composite: 1 x BNC, 1.0 Vp-p±3 dB sync negative
SDI: 2 x BNC:
HDMI: 1 x HDMI (HDCP compatible)

Audio
1 x 3.5 mm stereo mini jack

Output
Composite: 1 x BNC, loop through with 75Ω auto termination
SDI: 1 x BNC, Output signal amplitude: 800 mVp-p ±10%,
output impedance: 75Ω unbalanced

Audio
Monitor: 1 x 3.5 mm stereo mini jack
Headphone: 1 x 3.5 mm stereo mini jack
Speaker: Built-in 0.5W (Mono)
Remote Control Parallel Remote
1 x 8-pin modular connector (pin assignable)

Serial Remote
1 x RJ-45 1-Base-T/100Base-TX, Ethernet/LAN
Mounting Under Tilt Stand
1 x 1/4"-20 x 6 mm deep threaded mounting hole
1 x 3/8"-16 x 6 mm deep threaded mounting hole

Arm Mount Plate
1 x 1/4"-20 x 6 mm deep threaded mounting hole
1 x 3/8"-16 x 6 mm deep threaded mounting hole

Rack Mount
Optional rack mount kit available
Temperature & Humidity Operating Temperature
Maximum: 32 to 104°F (0 to 40°C)
Recommended: 68 to 86°F (20 to 30°C)
Operating Humidity
30 to 85% (non-condensing)

Storage and Transport Temperature
-4 to 140°F (-20 to 60°C)
Storage and Transport Humidity
0 to 90%
Pressure Level Operating, storage, transport: 700 to 1060 hPa
Power Requirements 100 to 240 VAC, 50/60 Hz, 0.7 to 0.4A
12VDC, 2.5A
DC In Plug 1 x 4-pin Male XLR
Power Consumption Approximately 36W
Dimensions (WxHxD) Monitor: 8.9 x 6.6 x 2.9" (22.6 x 16.8 x 7.4 cm)
Monitor & tilting stand & AC power adapter: 8.9 x 7.3 x 6.4" (22.6 x 16.8 x 116.3 cm)
Weight Monitor: approximately 4.4 lb (2 kg)
Monitor & AC adapter: 5.75 lb (2.6 kg)

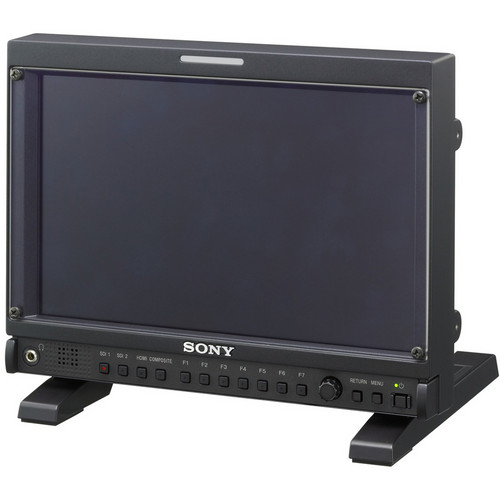

Sony LMD-941W 9 inch LCD Monitor
เงื่อนไขอื่นๆ
เช็ค Stock และราคาสินค้ากับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
