รายละเอียดสินค้า
Picture Performance
Panel
OLED panel

Picture size (diagonal)
420.0 mm (16 5/8 inches)

Effective picture size (H x V)
365.8 x 205.7 mm (14 1/2 x 8 1/8 inches)

Resolution (H x V)
1920 x 1080 pixels (Full HD)

Aspect
16:9

Pixel efficiency
99.99%

Panel drive
RGB 10-bit

Panel frame rate
48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates)

Viewing angle (panel specification)
89°/89°/89°/89° (typical) (up/down/left/right contrast >10:1)

Standard luminance
100 cd/m2 (preset1 to preset5 at EOTF 2.4)
48 cd/m2 (preset (DCI)) (1.0 Vp-p reference signal, 100% white signal input)

Colour temperature
D55, D61, D65, D93, DCI*1, DCI XYZ and user 1-5 (5,000 k to 10,000 k adjustable)

Colour space (colour gamut)
ITU-R BT.2020*2, ITU-R BT.709, EBU, SMPTE-C, DCI-P3*2, BVM-E171 Native*3, S-Gamut/S-Gamut3*2, S-Gamut3.cine*2

Transmission Matrix
ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709

EOTF
2.2, 2.4, 2.6, CRT, S-Log3(SDR), S-Log2(SDR)
2.2, 2.4, 2.6, CRT, S-Log3(HDR), S-Log3(Live HDR), S-Log2(HDR), ITU-R BT.2100(HLG), SMPTE ST2084, 2.4(HDR) when BVML-HE171 activates the HDR monitoring features.

Input
SDI
BNC (x2)

HDMI
HDMI (x1) (HDCP correspondence, deep colour correspondence)

Composite Video
BNC (x1)

Parallel remote
RJ-45 modular connector 8-pin (x1) (Pin-assignable)

Serial remote (LAN)
Ethernet (10BASE-T/100BASE-TX), RJ-45 (x1)

DC Input
XLR-4 pin (x1)

Output
SDI
BNC (x2)

Composite Video
BNC (x1)

DC 12V out
Circle 4-pin (female) (x1)

General
Power requirement
AC 100 V to 240 V, 0.9 A to0.5 A, 50/60 Hz, DC 24 V to 28 V, 3.3 A to 2.9 A

Power consumption
Approx. 88 W (AC power supply) (max.)
Approx. 53 W (AC power supply) (average power consumption in the default status)

Dimensions
(W x H x D) 436.0 x 282.4 (266.4)* x156.5 mm (17 1/4 x 11 1/4 (10 1/2)* x 6 1/4 inches)
* Height without legs

Mass
Approx. 6.5 kg (14 lb5 oz)

Supplied accessories
AC power cord (1), AC plug holder (1), Before Using This Unit (Japanese, English 1), HDMI cable holder(1), Handle(1), Rack mount brackets(L 1, R 1)

Notes
*1
DCI: x=0.314 y=0.351

*2
The BVM-E171 does not support the ITU-R BT.2020, DCI-P3, S-Gamut/S-Gamut3 and S-Gamut3.cine colour space in full.

*3
The BVM-E171 individual chromaticity points. The widest colour space setting of the signal is reproduced by the BVM-E171.

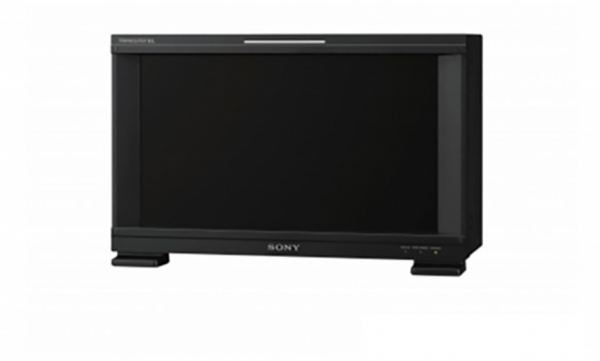

Sony BVM-E171 16.5-inch supports 4K production
Sony BVM-E171 16.5-inch supports 4K production
