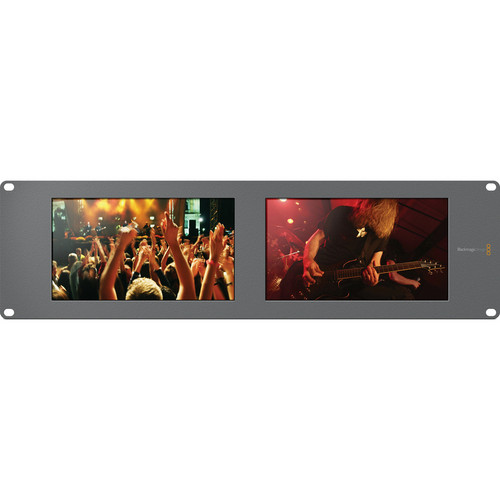

Blackmagic Design SmartView Duo Rackmountable Dual 8 LCD Monitors

SPECIFICATIONS

• Signal System Digital signal support for both 50 Hz (PAL) and 60 Hz (NTSC) regions
• SDI Input Switchable (auto-selects) between SD, HD and 3 Gb/s SDI. Reclocked loop-through output
• Multi-Rate Support Auto detection of 2K, HD or standard definition inputs
• SDI Format Support 525i59.94, 625i50, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98,1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p/23.98, 2048x1080p/24, 2048x1080p/25, 2048x1080PsF/23.98, 2048x1080PsF/24, 2048x1080PsF/25, 2048x1556PsF/23.98, 2048x1556PsF/24, 2048x1556PsF/25
• SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M
• Color Space REC 601, REC 709
• Video Sampling 4:2:2 and 4:4:4
• Color Precision 10-bit
• Monitor Type TFT active-matrix LCD
• Screen Size 2x 8" diagonal
• Resolution 800 x 480
• Display Colors 16.7 million colors
• Viewing Angle Not specified by manufacturer (displays can rotate upside down for optimal viewing angle)
• Brightness Not specified by manufacturer
• Contrast Ratio Typically 500:1
• Response Time < 15 ms
• Inputs 2x SD/HD/3G-SDI (switchable, with auto-detection of HD/SD/2K sources)
• 1x USB 2.0 (480 Mb/s for updates and configuration)
• 1x 9-pin D-type (standard parallel connector for tally)
• 1x 10/100 BaseT Ethernet (for configuration)
• Outputs 2x SD/HD/3G-SDI (loop-out)
• 1x 10/100 BaseT Ethernet (loop-out)
• Platform Mac OS X and Windows software control
• Remote Control No
• Operating Temperature Not specified by manufacturer
• Power Requirements 12-15V
• Power Consumption < 20
• Rack Space Height 3 RU
• Dimensions (WxHxD) 19 x 5.2 x 1" (48.3 x 13.3 x 2.5 cm)
• Weight Not specified by manufacturer
