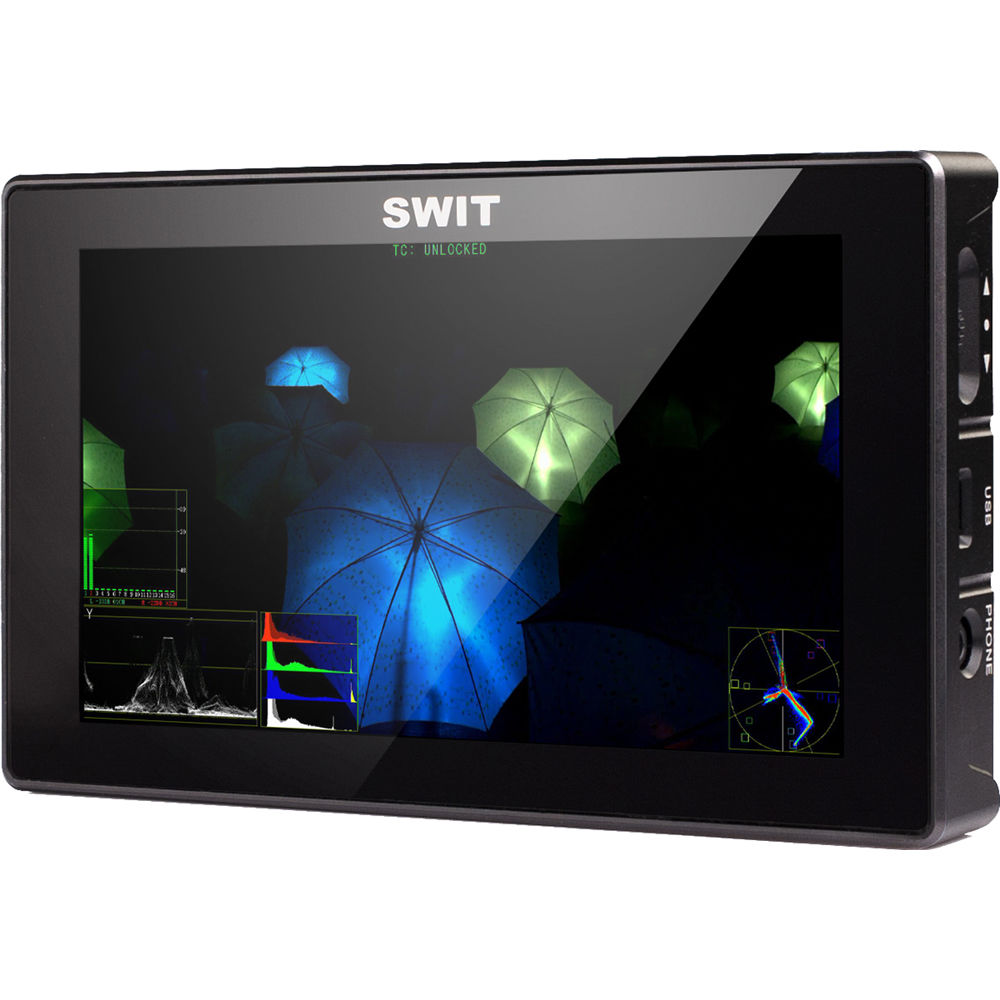

SWIT S-1053F 5.5 Full HD Waveform LCD Monitor with S-7003B Panasonic VW Battery Plate

Furthermore, the monitor supports video analysis assistant patterns and embedded audio monitoring with up to 16 channels SDI and 8 channels HDMI embedded audio meters display, with marks and audio abnormal alert info. It has a revolve/push menu button, with one-button operation for menu system and provides a micro-USB port for firmware upgrade. The monitor includes a foldable sunhood, an AC-DC lockable power adapter, and carrying case.

Input/Ouput Interfaces

Supports 2K/3G/HD/SD-SDI input, 2K/3G/HD/SD-SDI loop output, HDMI input (with lock), HDMI to SDI output (share SDI loop port), micro-USB (firmware upgrade), 3.5mm analog audio output.

Built-in HDMI to SDI Conversion

Supports built-in HDMI to SDI conversion; share the SDI loop output port. It's the same format conversion and supports the following HDMI formats: 480i, 576i, 720p (60/59.94/50), 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98). ¹

Video Analysis Assistant Pattern

The supported video analysis assistant patterns include: Waveform (Y/Pb/Pr/R/G/B), Vectorscope, and Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc.) to patterns, and the patterns can be switched on/off individually.

Embedded audio monitoring

Supports SDI 16 channels and HDMI 8 channels embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers.

One-Key Menu and Function Keys

The monitor has a Revolve/Push Menu button, with one-button operation for menu system.

USB Firmware Upgrade

The monitor provides a micro-USB port for firmware upgrade. You can download the latest firmware file to a USB stick, and insert it into the S-1053F monitor (via micro-USB OTG cable) to upgrade, without PC connection.

Foldable Sunhood

For outdoor use, the S-1053F provides a foldable sunhood that snaps to the monitor.

Additional Features

• 5.5" LCD, 1920 x 1080 full HD
• Optical bonding LCD panel
• Metal housing, thinner, and robust
• Peaking focus assist (dual color)
• Timecode, H/V delay, AFD, and scale markers
• F1-F3 functions: Input source switch, max backlight, waveform, info display, color temperature, timecode, zebra, vector, audio meters, histogram, false color, AFD, H/V delay, R/G/B/Mono, scale markers, color bar, audio alert, peaking focus assist, aspect ratio, scan mode, zoom mode, mute, freeze frame, flip
• Lockable HDMI connector

• Monitor

• Size

  5.5" (14 cm)
  Display Area	4.76 x 2.67" (120.96 x 68.04 mm)
  Resolution	1920 x 1080
  Aspect Ratio	16:9 (4:3 adjustable)
  Brightness	400 cd/m2
  Contrast Ratio	1000:1
  Color	16.77 million colors
  Viewing Angle	Horizontal: 160° Vertical: 160°
  Input	BNC: 2K/3G/HD/SD-SDI HDMI 1.3  Micro-USB firmware upgrade
  Output	BNC: 2K/3G/HD/SD-SDI loop output or HDMI converted to SDI output 1/8" (3.5 mm): SDI, HDMI, embedded audio output
  SDI	SMPTE 2048-2: 2048 x 1080p (23.98/24/25/29.97/30/50/59.94/60) / 2048 x 1080i (50/59.94/60) SMPTE-425M: 1080p (60/ 59.94/50) SMPTE-274M: 1080i (60/59.94/50) / 1080p (30/29.97/25/24/23.98) SMPTE-RP211: 1080psf (30/29.97/25/24/23.98) SMPTE-296M: 720p (60/59.94/50) SMPTE-125M: 480i (59.94) ITU-R BT.656: 576i (50)
  HDMI	480i/576i/480p/576p, 1080i (60/59.94/50), 720p (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/23.98)
  Operating Voltage	Battery 6.5 to 24 VDC
  Power Consumption	12 W
  Operating Temperature	14 to 122°F (-10 to 50°C)
  Operating Humidity	10 to 90%
  Storage Temperature	5 to 140°F (-15 to 60°C)
  Storage Humidity	10 to 90%
  Dimensions	5.9 x 3.5 x 1.2" (151 x 91 x 32 mm)
  Weight

  13 oz (375 g)
