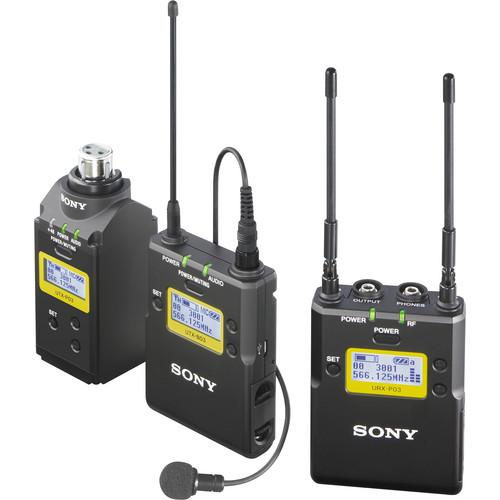

Sony UWP-D16 แบบเหน็บเสื้อและตัวรับสัญญาณ Digital Plug-on & Lavalier Combo Wireless Microphone

Microphone

Directivity

Omnidirectional

Weight

Not specified by the manufacturer

System

Type of System

Camera mountable UHF synthesized wireless plug-in system

RF Carrier Frequency Range

566 to 608 and 614 to 638 MHz

RF Bandwidth

66 MHz

Approx. Working Range

Not specified by manufacturer

Receiver

Type of Receiver

Camera mountable, space diversity, crystal-controlled PLL synthesizer

Reception Type

True diversity

Antenna Type

1/4 wave length wire

Frequency Response

23 to 18,000 Hz (typical)

Signal to Noise Ratio

96 dB (max deviation, A-weighted)

Distortion

0.9% or less (-60 dBV, 1 kHz input)

Audio Delay

Approximately 0.35 msec

Type of Outputs

3.5 mm (1/8") mini-jack, unbalanced

Analog Output Levels

-60 dBV (at ± 5 kHz deviation)

Adjustment Range

-12 dB to +12 dB (in 3 dB steps)

Headphone Monitoring

3.5 mm (1/8") stereo mini-jack, unbalanced with variable level

Headphone Output Level

5 mW (at 16 Ω load)

Pilot Tone

32 kHz / 32.382 kHz / 32.768 kHz

Display

LCD

Power Requirements

3.0 VDC (with two AA-size alkaline (LR6) batteries)
5.0 VDC (via USB micro-B)

Battery Type/Approx. Life

Approximately 6 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C)

Operating Temperature

32 to 122°F (0 to 50°C)

Storage Temperature

-4 to 131°F (-20 to +55°C)

Mounting Options

Camera / Belt / Mic Stand Mountable

Dimensions

2.50 x 3.25 x 0.94" (63.0 x 82.0 x 23.8 mm)

Weight

6.2 oz (176 g) including batteries

Transmitter

Type of Transmitter

Crystal-controlled PLL synthesizer plug-on transmitter

Antenna Type

Integral

Emission

F3E

RF Power

30 mW / 5 mW

Type of Microphone

Not Applicable

Type of Input Connector

Mic/Line switchable - 3-pin XLR female

Phantom Power

+48 V

Reference Input Level

Mic: -60 dBV (at 0 dB attenuator level)
Line: +4 dBu

Adjustment Range

Mic input: 0 to 21 dB (in 3 dB steps)

Frequency Response

23 to 18,000 Hz (typical)

Signal to Noise Ratio

96 dB (max deviation, A-weighted)

Audio Delay

Approximately 0.35 msec

Pilot Tone

32 kHz / 32.382 kHz / 32.768 kHz

Interchangeable Mic Heads

Standard XLR Type Microphones

Display

LCD

Power Requirements

3.0 VDC (with two AA-size alkaline LR6 batteries)
5.0 VDC (via USB micro-B)

Battery Type/Approx. Life

Approximately 8 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output

Operating Temperature

32 to 122°F (0 to 50°C)

Storage Temperature

-4 to 131°F (-20 to 55°C)

Dimensions (W x H x D)

1.65 x 1.65 x 4.02" (42 x 42 x 102 mm)

Weight

Approximately 6.9 oz (197 g) including batteries

Transmitter

Type of Transmitter

Crystal-Controlled UHF PLL-Synthesized bodypack transmitter

Antenna

1/4 wave length wire

Emission

F3E

Carrier Frequency Range

566 to 608 and 614 to 638 MHz

RF Power

30 mW / 5 mW

Type of Input Connector

Mic/Line Switchable - 3-pole locking mini microphone connector (3.5 mm)

Interchangeable Mic Heads

Compatible with any microphone that features a mini (3.5mm) connection

Reference Input Level

Mic: -60 dBV (at 0-dB attenuator level)
Line: +4 dBu

Adjustment Range

Mic: 0 to 21 dB (in 3 dB steps)

Frequency Response

23 to 18,000 Hz (typical)

Signal to Noise Ratio

96 dB (max deviation, A-weighted)

Audio Delay

Approximately 0.35 msec

Pilot Tone

32 kHz / 32.382 kHz / 32.768 kHz

Display

LCD

Power Requirements

3.0 VDC (with two AA-size alkaline LR6 batteries) 5.0 VDC (via USB micro-B)

Battery Type/Approx. Life

Approximately 8 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output

Operating Temperature

32 to 122°F (0 to 50°C)

Storage Temperature

-4 to 131°F (-20 to 55°C)

Dimensions (W x H x D)

2.48 x 3.23 x 0.79" (63.0 x 82.0 x 20.0 mm)

Weight

5.26 oz (149 g) with batteries
