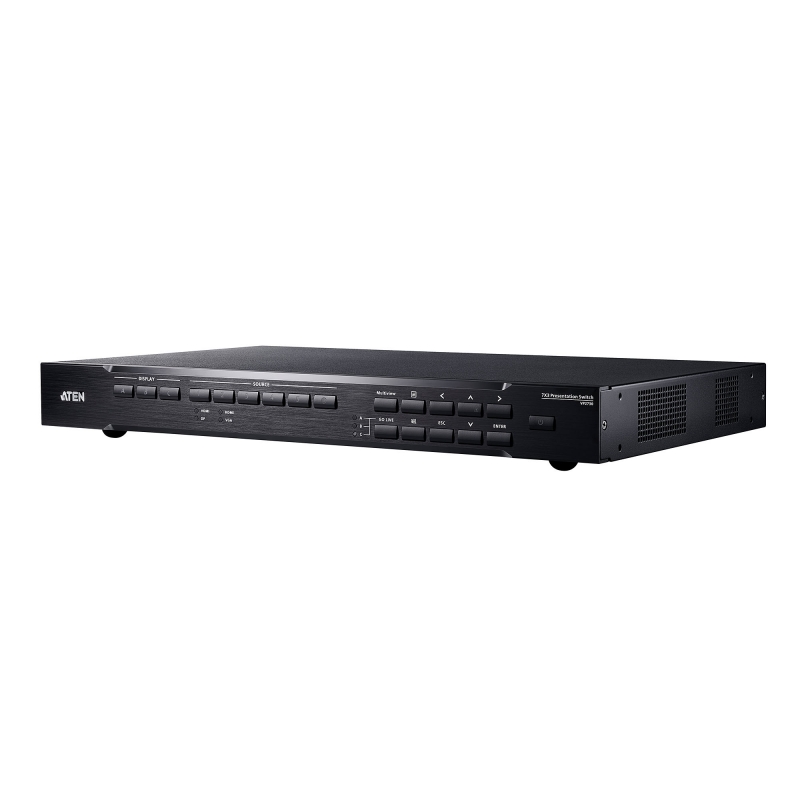

Video Input |
Interfaces |
5 x HDMI Type A female (Black) |
1 x DP Female (Black) |
1 x HDB-15 Female (Blue) |
Video Output |
Interfaces |
2 x HDMI Type A female (Black) |
HDBaseT: 1 x RJ-45 Female (Silver) |
Max. Distance |
HDMI: Up to 15m |
HDBaseT: Up to 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat 6) |
Video |
Max. Resolution |
HDMI/DP: Up to 1080p@60Hz |
VGA/Analog: Up to 1920x1200@60Hz |
Compliance |
HDMI/DP: HDCP 1.4 Compatible; Consumer Electronics Control (CEC) |
Audio |
Input |
Stereo Audio: 1 x mini stereo Jack female (Green) |
Balance Audio: 1 x Captive Screw Connector, 5-pole |
Microphone: 1 x Captive Screw Connector, 3-pole |
Output |
Optical Audio: 1 x Toslink (Black) |
Coaxial Audio: 1 x RCA female (Orange) |
Stereo Audio: 2 x RCA female (White / Red) |
Connectors |
Console Ports |
USB 2.0: 2 x USB Type A Female (White) |
USB 3.0: 1 x USB Type A Female (Blue) |
Power |
1 x 3-prong AC Socket |
Control |
RS-232 |
1 x DB 9 female (Black) |
IR |
1 x Mini Stereo Jack Female (Black) |
Ethernet |
1 x RJ-45 Female (Silver) |
Switches |
Power |
1 x Pushbutton |
1 x Rocker |
Video Input Port Selection |
Video In: 5 x Pushbutton |
Streaming In: 1 x Pushbutton |
Video Output Port Selection |
3 x Pushbutton |
Selection |
Multiview: 1 x Pushbutton |
Menu: 1 x Pushbutton |
Left: 1 x Pushbutton |
Up (Unlock): 1 x Pushbutton |
Right: 1 x Pushbutton |
Go Live: 1 x Pushbutton |
Mute: 1 x Pushbutton |
Esc: 1 x Pushbutton |
Down: 1 x Pushbutton |
Enter: 1 x Pushbutton |
Phantom power |
1 x Slide Switch |
LEDs |
Video |
Source 1: HDMI/DP: 2(Green) |
Source 2: HDMI/VGA: 2(Green) |
Video Output |
Go Live: 3 (Amber) |
EDID Settings |
EDID Mode: ATEN Default / Display A |
Power |
Maximum Input Power Rating |
100-240 VAC; 50-60Hz; 1.0A |
Power Consumption |
AC110V:28.5W:174BTU |
AC220V:27.3W:168BTU |
Environmental |
Operating Temperature |
0-40°C |
Storage Temperature |
-20 - 60°C |
Humidity |
0 - 80% RH, Non-Condensing |
Physical Properties |
Housing |
Metal |
Weight |
3.70 kg ( 8.15 lb ) |
Dimensions (L x W x H) |
43.24 x 26.28 x 4.40 cm |
(17.02 x 10.35 x 1.73 in.) |
Carton Lot |
1 pc |
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
