Conversion

4K HDMI to 12G/3G/HD/SD-SDI

Video Inputs

1x HDMI 2.0 Type A

Loop Through

1 x HDMI 2.0 Type A

Video Outputs

2 x 12G-SDI (3G-SDI Level A)

Audio Inputs

2 x RCA (Unbalanced Audio L/R)

HDMI embedded audio, 24-bit, 8-channel

Audio Outputs

SDI embedded audio, 24-bit, 8-channel

Audio Format Selection

N/A

Audio Gain

N/A

 Supported Video Input Formats

4096x2160p: 60/50/30/25/24

3840x2160p: 60/50/30/25/24

1080p: 60/50/30/25/24

1080i: 60/50, 720p: 60/50

Output Resolutions

Automatically matches the SD, HD and 4K HDMI video input

Equalizer

N/A

Reclock

Yes

SDI Cable Drive

Yes

Updates and Configuration

USB Type C

Dimension (LxWxH)

136.5 x 85 x 45 mm

Weight

0.39 kg

Operating Temp. Range

0~40 °C

Power

DC 12V, 9.4W

What's in the Box

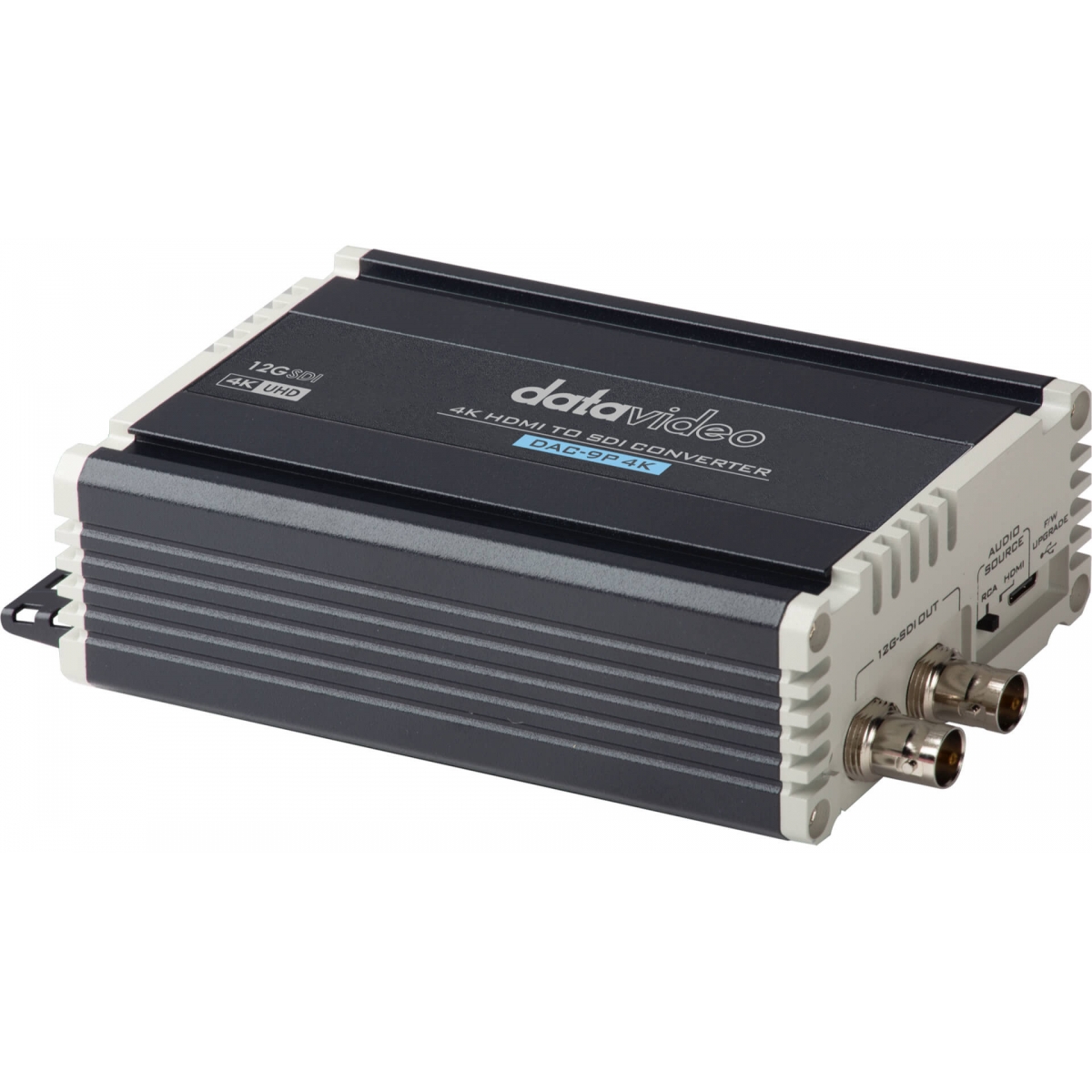

1 x DAC-9P 4K

1 x AD Switch DC 12V
