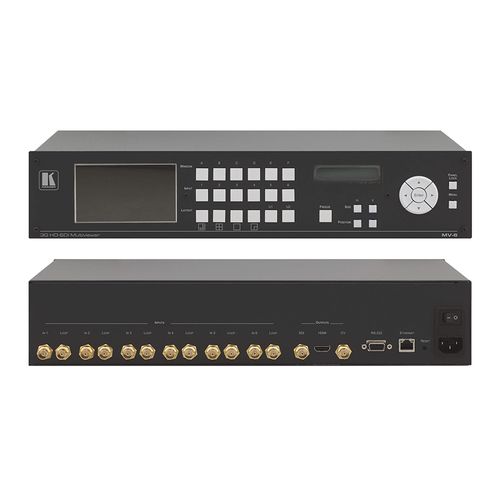

KRAMER MV-6 3G HD–SDI Multiviewer

INPUTS

• 6 SD/HD/3G HD–SDI with loop on BNC connectors

OUTPUTS

• 1 HDMI, 1 CV on a BNC connector (for 720p @50Hz and 1920p @50Hz the output is PAL,
• For 720p @59.94/60Hz and 1920p @59.94/60Hz the output is NTSC), 1 HD/3G HD–SDI on a BNC connector

MAX. INPUT LEVEL

• 800mVpp/75Ω

MAX. OUTPUT LEVEL

• 800mVpp/75Ω

MAX. DATA RATE

• Up to 2.97Gbps

CONTROLS

• Front–panel, RS–232, Ethernet

FRONT PANEL DISPLAY

• 4.3" TFT color LCD panel

POWER CONSUMPTION

• Universal, 100–240V AC, 50/60Hz, 35VA

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Power cord, rack "ears"

PRODUCT DIMENSION

• 19" x 7.24 x 2U (43.6cm x 18.40cm x 8.80cm) W, D, H

PRODUCT WEIGHT

• 3.1kg (6.8lbs) approx.

SHIPPING DIMENSION

• 55.00cm x 29.40cm x 16.10cm (21.65" x 11.57" x 6.34" ) W, D, H

SHIPPING WEIGHT

• 4.2kg (9.3lbs) approx.
