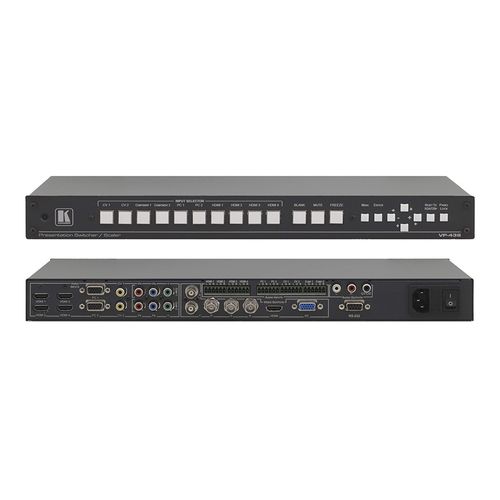

KRAMER VP-438 10–Input Analog & HDMI ProScale™ Presentation Digital Scaler Switcher

INPUTS

• 4 HDMI connectors (HDMI, HDCP version 1.1)
• 2 VGA on a 15–pin HD connector
• 2 composite video on an RCA connector
• 2 component video each on 3 RCA connectors
• 4 HDMI, 2 PC, 2 COMP, 1 CV unbalanced stereo audio on 10 3–pin terminal block connectors

OUTPUTS

• 1 RGBHV on 5 BNC connectors, 1 HDMI connector (HDMI, HDCP version 1.1), 1 VGA (RGBHV) on a 15–pin HD connector, 1 S/PDIF on an RCA connector, 1 analog stereo audio on 2 RCA connectors

OUTPUT COLORSPACE

• RGB

H FREQUENCY

• 15.63–90kHz

V FREQUENCY

• 50–100Hz

RGB SYNCS

• H and V TTL separated syncs

RGB LEVEL

• 1.2Vpp max, 75Ω load

XGA OUT LEVEL

• 1.2Vpp max, 75Ω load

OUTPUT RESOLUTIONS

• Native, VGA, SVGA, XGA, SXGA, UXGA, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, WXGA, WSXGA, WUXGA, 1280x800, 1440x900, 1400x1050, 1600x900

OUTPUT REFRESH RATES

• 60Hz for computer graphics resolutions
• 50/60/59.9Hz (HDTV and 480i/p resolutions), 50Hz (576i/p resolutions)

CONTROLS

• Input selector buttons
• blank, mute, freeze buttons
• menu, enter, menu arrows, reset to XGA/720p, lock buttons, RS–232

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

POWER CONSUMPTION

• 100–240V AC, 33VA max

INCLUDED ACCESSORIES

• Power cord, rack "ears"

PRODUCT DIMENSION

• 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H

SHIPPING DIMENSION

• 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 2.7kg (6.0lbs) approx.

PRODUCT WEIGHT

• 1.7kg (3.8lbs) approx.
