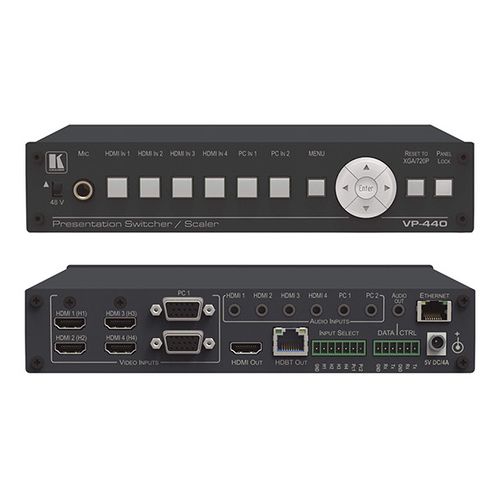

KRAMER VP-440 Compact 6–Input Presentation SwitcherScaler with HDBaseT & HDMI Simultaneous Outputs

INPUTS

• 4 HDMI connectors (HDMI, HDCP version 1.4)
• 2 VGA on a 15–pin HD connector
• 6 unbalanced stereo audio on 3.5mm mini jack connectors
• 1 mic on a 6.3mm jack connector (with selectable 48V phantom power)

OUTPUTS

• 1 HDMI connector (HDMI, HDCP version 1.4)
• 1 HDBT on a RJ–45 connector
• 1 unbalanced stereo audio on a 3.5mm mini jack connector

BANDWIDTH

• Up to 1080p, UXGA

SWITCHING TIME BETWEEN INPUTS

• 2 to 3 seconds

VIDEO LATENCY

• Less than 2 frames

INPUT RESOLUTIONS PC 1/2

• 640x480@60Hz, 640x480@72Hz, 640x480@75Hz, 640x480@85Hz, 800x600@56Hz, 800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 800x600@85Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz, 1024x768@85Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1280x720@60Hz, 1920x1080@60Hz, 1600x1200@60Hz, 1280x800@60Hz, 1440x900@60Hz,1366x768@60Hz, 1400x1050@60Hz, 1600x900RB@60Hz, 1680x1050RB@60Hz, 1920x1200RB@60Hz

INPUT RESOLUTIONS HDMI

• 480i, 480p, 576i, 576p, 720p@50Hz, 720p@60Hz, 1080i@50Hz, 1080i@60Hz, 1080p@50Hz, 1080p@60Hz, 1080p@24Hz, 1080p@25Hz, 1080p@30Hz, 640x480@60Hz, 640x480@72Hz, 640x480@75Hz, 640x480@85Hz, 800x600@56Hz, 800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 800x600@85Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1280x720@60Hz, 1920x1080@60Hz, 1280x960@60Hz, 1600x1200@60Hz, 1280x800@60Hz, 1440x900@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x900RB@60Hz, 1680x1050RB@60Hz, 1920x1200RB@60Hz

OUTPUT RESOLUTIONS

• 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x800@60Hz, 1360x768@60Hz, 1440x900@60Hz, 1280x1024@60Hz, 1400x1050@60Hz, 1680x1050@60Hz, 1600x1200@60Hz, 1920x1200RB@60Hz, 1280x720@60Hz, 1920x1080@60Hz, 720x480p@60Hz, 720x576p@50Hz, 1280x720p@50Hz, 1280x720p@60Hz, 1920x1080i@50Hz, 1920x1080i@60Hz, 1920x1080p@50Hz, 1920x1080p@60Hz

CONTROLS

• HDMI 1 to HDMI 4 and PC 1 to PC 2 input selector buttons
• Input select contact closure
• Menu and navigation buttons
• Reset to XGA/720p and panel lock buttons
• RS–232 (control and data)
• Ethernet (OSD and Web pages)

POWER CONSUMPTION

• 5V DC, 3A

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Power supply

PRODUCT DIMENSION

• 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H

PRODUCT WEIGHT

• 1.1kg (2.4lbs) approx.

SHIPPING DIMENSION

• 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H

SHIPPING WEIGHT

• 1.5kg (3.4lbs) approx.
