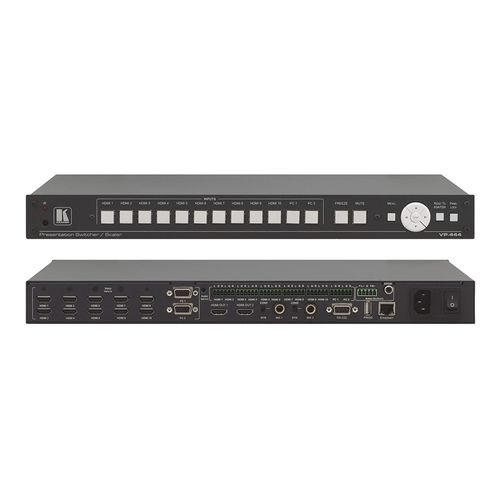

KRAMER VP-444 12–Input HDMI & Analog ProScale™ Presentation Digital ScalerSwitcher with Microphone Inputs & Ethernet Control

INPUTS

• 10 HDMI connectors (HDMI, HDCP version 1.4)
• 2 VGA on a 15–pin HD connector
• 1 unbalanced stereo audio on 12 3–pin terminal block connectors
• 2 mic on 6mm jack connectors (with selectable 48V phantom power)

OUTPUTS

• 2 HDMI connectors (HDMI, HDCP version 1.4)
• 1 S/PDIF on an RCA connector
• 1 unbalanced stereo audio on a 5–pin terminal block connector

BANDWIDTH

• Up to 1080p, UXGA

SWITCHING TIME BETWEEN INPUTS

• 2 to 3 seconds

VIDEO LATENCY

• Less than 2 frames

OUTPUT RESOLUTIONS

• Native, 640x480 @60Hz, 800x600 @60Hz, 1024x768 @60Hz, 1280x768 @60Hz, 1360x768 @60Hz, 1280x720 @60Hz, 1280x800 @60Hz, 1280x1024 @60Hz, 1440x900 @60Hz, 1400x1050 @60Hz, 1680x1050 @60Hz, 1600x1200 @60Hz, 1920x1080 @60Hz, 1920x1200 @60Hz, 480p @60Hz, 720p @60Hz, 1080i @60Hz, 1080p @60Hz, 576p @50Hz, 720p @50Hz, 1080i @50Hz, 1080p @50Hz

CONTROLS

• HDMI 1 to HDMI 10 and PC 1 to PC 2 input selector buttons, Freeze, Mute buttons, Menu and navigation buttons, Reset to XGA/720p and lock buttons, RS–232, IR, Ethernet (OSD and Web pages), USB for firmware upgrading

POWER CONSUMPTION

• 100–240V AC, 22VA max

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Power cord, rack ears, IR remote control

PRODUCT DIMENSION

• 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H

PRODUCT WEIGHT

• 1.8kg (4.0lbs) approx.

SHIPPING DIMENSION

• 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 2.5kg (5.5lbs) approx.
