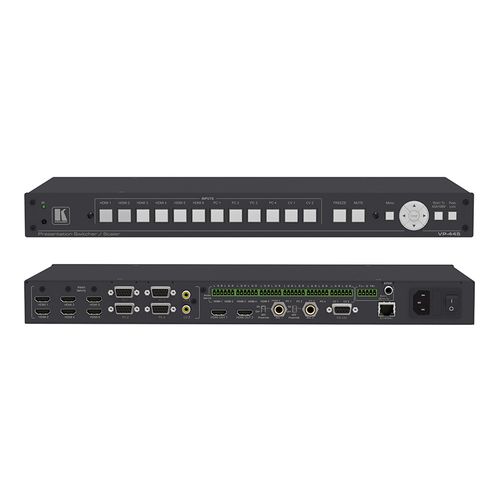

KRAMER VP-445 12–Input Presentation SwitcherScaler

INPUTS

• 6 HDMI: On female HDMI connectors (HDCP 1.4)
• 4 VGA: On a 15–pin HD connector
• 2 CV: On RCA connectors
• 12 Unbalanced Stereo Audio: On 3–pin terminal block connectors
• 2 Mic: On 6mm jack connectors (with selectable 48V phantom power)

OUTPUTS

• 2 HDMI: On female HDMI connectors (HDCP 1.4)
• 1 S/PDIF: On an RCA connector
• 1 Balanced Stereo Audio: On a 5–pin terminal block connector

VIDEO

• Bandwidth: Up to 1080p, UXGA
• Switching Time Between Inputs: 2 to 3 seconds
• Latency: Less than 2 frames
• Input Color Depth: Up to 12–bit
• Output Resolutions: Native, 640x480 @60Hz, 800x600 @60Hz, 1024x768 @60Hz, 1280x768 @60Hz, 1360x768 @60Hz, 1280x720 @60Hz, 1280x800 @60Hz, 1280x1024 @60Hz, 1440x900 @60Hz, 1400x1050 @60Hz, 1680x1050 @60Hz, 1600x1200 @60Hz, 1920x1080 @60Hz, 1920x1200 @60Hz, 480p @60Hz, 720p @60Hz, 1080i @60Hz, 1080p @60Hz, 576p @50Hz, 720p @50Hz, 1080i @50Hz, 1080p @50Hz

AUDIO

• Input Sampling Rate: 32KHz, 44.1KHz, 48KHz
• Output Sampling Rate: 48KHz

USER INTERFACE

• Controls: Input selector, freeze, mute, reset resolution and lock buttons, RS–232, IR, web pages via Ethernet

POWER

• Source: 100–240V AC
• Consumption: 30VA max

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing

ACCESSORIES

• Included: Power cord, rack ears, IR remote control

PRODUCT DIMENSION

• 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H

PRODUCT WEIGHT

• 1.8kg (4.0lbs) approx.

SHIPPING DIMENSION

• 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 2.5kg (5.5lbs) approx.
