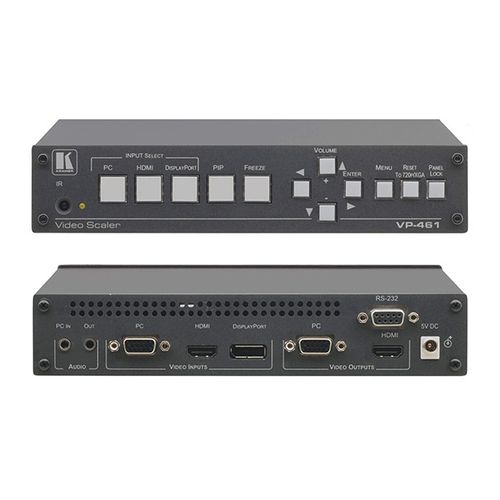

KRAMER VP-461 3–Input Analog & HDMI ProScale™ Presentation SwitcherScaler

INPUTS

• 1 computer graphics on a 15–pin HD connector, 1 HDMI connector, 1 DisplayPort connector, 1 unbalanced stereo audio on a 3.5mm mini jack connector

OUTPUTS

• 1 computer graphics on a 15–pin HD connector, 1 HDMI connector, 1 unbalanced stereo audio on a 3.5mm mini jack connector

COMPLIANCE WITH HDMI STANDARD

• Supports HDMI Deep Color

OUTPUT RESOLUTIONS

• 640x480@60, 640x480@75, 800x600@50, 800x600@60, 800x600@75, 1024x768@50, 1024x768@60, 1024x768@75, 1280x768@50, 1280x768@60, 1280x800@60, 1280x1024@50, 1280x1024@60, 1280x1024@75, 1366x768@50, 1366x768@60, 1400x1050@50, 1400x1050@60, 1600x900@60, 1600x1200@50, 1600x1200@60, 1680x1050@60, 1920x1200@60, 480i60, 480p60, 576i50, 576p50, 720p50, 720p59.94, 720p60, 1080p23.976, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2K50, 2K60

CONTROLS

• Front panel buttons, OSD, IR remote control, RS–232 on a 9–pin D–sub connector

POWER CONSUMPTION

• 5V DC, 2.90A

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Power supply, IR remote control, control application program via RS–232 (PC)

PRODUCT DIMENSION

• 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H

PRODUCT WEIGHT

• 1.0kg (2.2lbs) approx.

SHIPPING DIMENSION

• 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H

SHIPPING WEIGHT

• 1.6kg (3.5lbs) approx.
