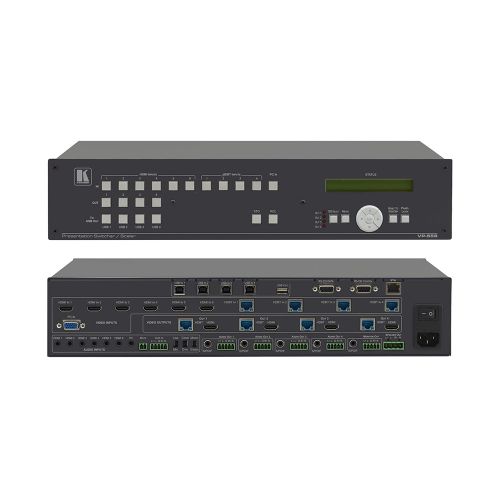

KRAMER VP-558 11x42 Presentation Boardroom Router Scaler System

INPUTS

• 6 HDMI connectors, 1 VGA on a 15–pin HD connector, 4 HDBT on RJ–45 connectors, 4 USB ports, 6 unbalanced analog audio on 3.5mm mini jacks for HDMI, 1 unbalanced analog audio on a 3.5mm mini jack for PC, 1 aux in/mic balanced stereo audio on a 5–pin terminal block connector

OUTPUTS

• 4 HDBT on RJ–45 connectors, 4 HDMI connectors, 1 USB port, 4 audio out balanced stereo on 5–pin terminal block connectors, 4 audio out S/PDIF on RCA connectors, monitor out balanced stereo on a 5–pin terminal block connector, monitor out S/PDIF on an RCA connector
• 1 stereo speaker output, 2x10W into 4Ω, on a 4–pin terminal block connector

OUTPUT RESOLUTIONS

• NATIVE, 640x480@60, 800x600@60, 1024x768@60, 1280x768@60, 1360x768@60, 1280x720@60, 1280x800@60, 1280x1024@60, 1440x900@60, 1400x1050@60, 1680x1050@60, 1600x1200@60, 1920x1080@60, 1920x1200@60, 720x480p@60, 1280x720p@60, 1920x1080i@60, 1920x1080p@60, 720x576p@60, 1280x720p@50, 1920x1080i@50, 1920x1080p@50

CONTROLS

• HDMI 1, HDMI 2, HDMI 3, HDMI 4, HDMI 5, HDMI 6, HDBT 1, HDBT 2, HDBT 3, HDBT 4, PC, USB 1, USB 2, USB 3, USB 4 input selector buttons
• menu, enter, menu arrows, reset to XGA/720p, OSD SELECT, 2 RS–232, Ethernet, line/mic selector switch, cond/dyn (48V) selector switch, mono/stereo selector switch, REM for muting audio

POWER CONSUMPTION

• 100–240V AC, 70VA max

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Power cord, rack "ears"

OPTIONS

• Kramer BC–HDKat6a cable

PRODUCT DIMENSION

• 19" x 14.37 x 2U (43.6cm x 36.50cm x 8.80cm) W, D, H

PRODUCT WEIGHT

• 5.0kg (11.0lbs) approx.

SHIPPING DIMENSION

• 52.60cm x 47.50cm x 18.40cm (20.71" x 18.70" x 7.24" ) W, D, H

SHIPPING WEIGHT

• 6.3kg (13.9lbs) approx.
