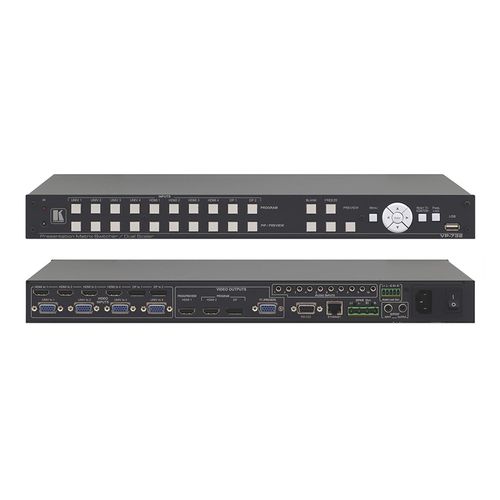

KRAMER VP-732 10–input ProScale™ Presentation Matrix Switcher4K30 UHD Scaler with Preview & Program Outputs

INPUTS

• 4 HDMI connectors, 4 universal (composite, s–Video, computer graphics and component) on 15–pin HD connectors, 2 DP connectors, 1 USB connector, 1 S/PDIF on an RCA connector, 10 unbalanced stereo audio on 3.5mm mini jacks

OUTPUTS

• 2 HDMI connectors, 1 DP connector, 1 PC (computer graphics) on a 15–pin HD connector, 1 balanced audio stereo output on a 5–pin terminal block (+4dBu nominal), 1 stereo speaker output (10W per channel into 8Ω) on a 4–pin terminal block connector, 1 digital S/PDIF output on an RCA connector

COMPLIANCE WITH HDMI STANDARD

• Supports HDMI and HDCP

OUTPUT RESOLUTIONS

• PROGRAM:
• Native HDMI1, Native HDMI2, Native DP, Native VGA, 640x480x60Hz, 640x480x75Hz, 800x600x50Hz, 800x600x60Hz, 800x600x75Hz, 1024x768x50Hz, 1024x768x60Hz, 1024x768x75Hz, 1280x768x50Hz, 1280x768x60Hz, 1280x720x60Hz, 1280x800x60Hz, 1280x1024x50Hz, 1280x1024x60Hz, 1280x1024x75Hz, 1366x768x50Hz, 1366x768x60Hz, 1400x1050x50Hz, 1400x1050x60Hz, 1600x900x60Hz (R), 1600x1200x50Hz, 1600x1200x60Hz, 1680x1050x60Hz, 1920x1080x60Hz, 1920x1200x60Hz (R), 2048x1080x50Hz, 2048x1080x60Hz, 3840x2160@24Hz, 3840x2160@25Hz, 3840x2160@29.97Hz, 3840x2160@30Hz, 4096x2160@24Hz, 480px60Hz, 576px50Hz, 720px50Hz, 720px60Hz, 1080i/1080px50Hz, 1080i/1080px60Hz, 1080px50Hz, 1080px60Hz, 1080px24Hz, 480px59.94Hz, 720px59.94Hz, 1080i/1080px59.94Hz, 1080px23.98, 1080px29.97, 1080px59.94, Custom 1 to Custom 4
• PREVIEW:
• Single Picture, 640x480x60Hz, 640x480x75Hz, 800x600x50Hz, 800x600x60Hz, 800x600x75Hz, 1024x768x50Hz, 1024x768x60Hz, 1024x768x75Hz, 1280x768x50Hz, 1280x768x60Hz, 1280x720x60Hz, 1280x800x60Hz, 1280x1024x50Hz, 1280x1024x60Hz, 1280x1024x75Hz, 480px60Hz, 576px50Hz, 720px50Hz, 720px60Hz, 480px59.94Hz, 720px59.94Hz, Custom 1 to Custom 4

CONTROL

• Front panel buttons/OSD, IR remote control, RS–232 on a 9–pin D–sub connector, Ethernet

ADDITIONAL CONTROLS

• Picture–In–Picture, Picture–and–Picture or Split Screen (two images side–by–side)
• separate program/preview freeze and zoom, different selectable vertical refresh rates, Video and Audio ProcAmp control, output image scaling and aspect ratio change, EDID capture

POWER SOURCE

• 100–240V AC, 50/60Hz, 49VA

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Rack “ears”, IR remote control, power cord, 2 C–GM/3RVF–1 cables

PRODUCT DIMENSION

• 19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H

PRODUCT WEIGHT

• 2.5kg (5.4lbs) approx.

SHIPPING DIMENSION

• 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 3.4kg (7.5lbs) approx.
