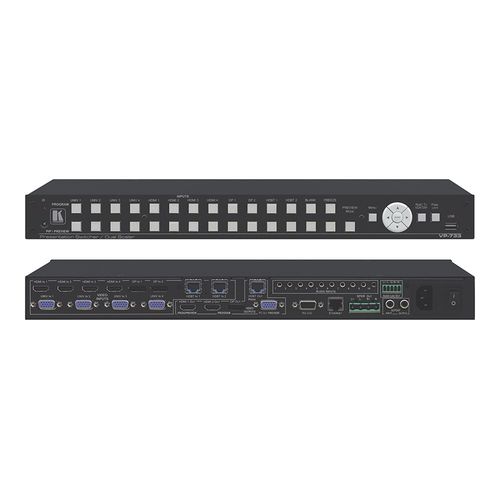

KRAMER VP-733 12–Input ProScale™ Presentation Matrix Switcher4K30 UHD Scaler with Preview & Program Outputs and Legacy, Digital and HDBaseT IOs

INPUTS

• 4 HDMI: On female HDMI connectors
• 4 Universal: On 15–pin D–sub connectors
• 2 Display Port: On female Display Port connectors
• 2 HDBaseT: On RJ–45 connectors
• 10 Unbalanced Stereo: On 3.5mm mini jacks
• 1 S/PDIF: On an RCA connector

OUTPUTS

• 2 HDMI: On female HDMI connectors
• 1 Display Port: On a female Display Port connector
• 1 HDBaseT: On an RJ–45 connector
• VGA/HD: On a 15–pin D–sub connector
• 1 S/PDIF: On an RCA connector
• Balanced Audio (Speaker): On a 5–pin terminal block connector

ACCESSORIES

• Included: IR remote control, power cord, rack ears

PORTS

• RS-232: On a 9–pin D–sub connector
• Ethernet: On an RJ–45 connector

VIDEO

• HDMI Standards Compliance: Supports HDMI and HDCP

USER INTERFACE

• Controls: Front panel buttons/OSD, IR remote control, RS–232 on a 9–pin D–sub connector, Ethernet
• Additional Controls: Picture–In–Picture, Picture–and–Picture or Split Screen (two images side–by–side). Separate program/preview freeze and zoom, different selectable vertical refresh rates, Video and Audio ProcAmp control, output image scaling and aspect ratio change, EDID capture

POWER

• Input: 100–240V/50–60Hz
• Consumption: 700mA

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing

PRODUCT DIMENSION

• 19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H

PRODUCT WEIGHT

• 2.7kg (6.0lbs) approx.

SHIPPING DIMENSION

• 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 3.6kg (7.8lbs) approx.
