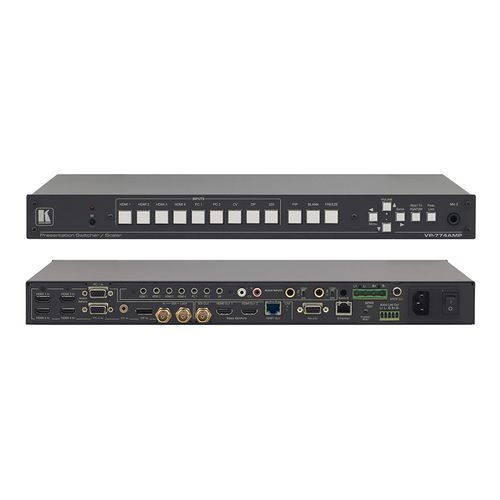

KRAMER VP-774A 9–Input HDMI & HDBaseT ProScale™ Presentation SwitcherScalers with 2K Support and Audio Power Amplifier

INPUTS

• 4 HDMI (Deep Color) connectors,
• 2 VGA on 15–pin HD connectors,
• 1 composite video on an RCA connector,
• 1 DisplayPort connector,
• 4 HDMI, 2 VGA, 1 DP, 1 CV unbalanced stereo audio on left and right RCA connectors,
• 2 mic on 3.5mm mini jack connectors, 1 3G HD–SDI on a BNC connector

OUTPUTS

• 2 HDMI (Deep Color) connectors,
• 1 HDBaseT on an RJ–45 connector,
• 1 S/PDIF digital audio on an RCA connector,
• 1 balanced stereo audio on a 5–pin terminal block connector, 1 3G HD–SDI on a BNC connector, 1 stereo speaker output, 2x10W, on a 4–pin terminal block connector

STANDARDS COMPLIANCE

• Supports HDMI (Deep Color), HDCP, DisplayPort 1.1a

OUTPUT RESOLUTIONS

• 640x480@60, 640x480@75, 800x600@50, 800x600@60, 800x600@75, 1024x768@50, 1024x768@60, 1024x768@75, 1280x768@50, 1280x768@60, 1280x800@60, 1280x1024@50, 1280x1024@60, 1280x1024@75, 1360x768@60, 1366x768@50, 1366x768@60, 1400x1050@50, 1400x1050@60, 1600x900@60, 1600x1200@50, 1600x1200@60, 1680x1050@60, 1920x1200@60, 480i60, 480p60, 576i50, 576p50, 720p50, 720p59.94, 720p60, 1080p23.976, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080@60Hz, 2048x1080@50Hz

CONTROLS

• Front panel buttons, OSD, IR remote control, RS–232 on a 9–pin D–sub connector, Ethernet

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–49° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

POWER SOURCE

• 100–240V AC, 40VA max

INCLUDED ACCESSORIES

• Power cord, rack “ears”, IR remote control

PRODUCT DIMENSION

• 19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H

PRODUCT WEIGHT

• 2.6kg (5.7lbs) approx.

SHIPPING DIMENSION

• 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 3.6kg (7.9lbs) approx.
