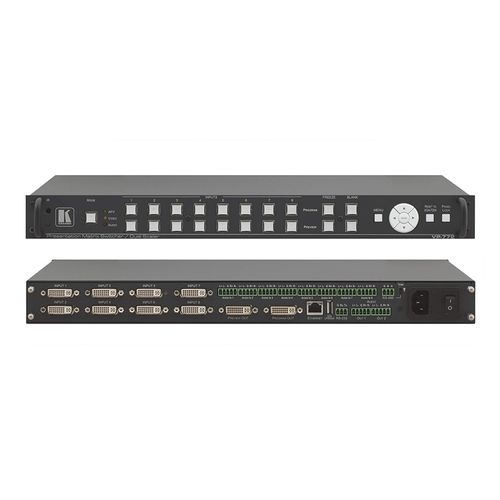

KRAMER VP-772 8 Input ProScale Presentation Dual Scaler with FX and 4K Output Option

INPUTS

• 8 DVI–U (DVI–D, HDMI, PC, YPbPr and CV) on DVI–I connectors, 8 balanced stereo audio on 5–pin terminal block connectors

OUTPUTS

• 2 DVI–I (DVI–D, HDMI and PC) on DVI–I connectors, 2 balanced stereo audio on 5–pin terminal block connector

COMPLIANCE WITH HDMI STANDARD

• Supports HDMI (deep color) and HDCP

OUTPUT RESOLUTIONS

• 640x480@60Hz, 640x480@75Hz, 800x600@50Hz, 800x600@60Hz, 800x600@75Hz, 1024x768@50Hz, 1024x768@60Hz, 1024x768@75Hz, 1280x768@50Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@50Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1360x768@60Hz, 1366x768@50Hz, 1366x768@60Hz, 1400x1050@50Hz, 1400x1050@60Hz, 1600x900@60Hz, 1600x1200@50Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200RB@60Hz, 480p@60Hz, 576p@50Hz, 720p@50Hz, 720p@59.94Hz, 720p@60Hz, 1080p@23.976Hz, 1080p@24Hz, 1080p@25Hz, 1080p@29.97Hz, 1080p@30Hz, 1080p@50Hz, 1080p@59.94Hz, 1080p@60Hz, 1080i@50Hz, 1080i@60Hz, 2K@50Hz, 2K@60Hz, 4K2K@30Hz

CONTROLS

• Front panel buttons, OSD, IR remote control, RS–232 on a terminal block connector, Ethernet

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

POWER CONSUMPTION

• 100–240V AC, 42VA max

INCLUDED ACCESSORIES

• Power cord, rack “ears”, IR remote control, 2 DVI–A (M) to 5 BNC (F) Adapter Cables (3ADC–DMA/5BF–1), 2 DVI (M) to 15–pin HD (F) adapters (AD–DM/GF)

PRODUCT DIMENSION

• 19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H

PRODUCT WEIGHT

• 4.3kg (9.5lbs) approx.

SHIPPING DIMENSION

• 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 5.3kg (11.7lbs) approx.
