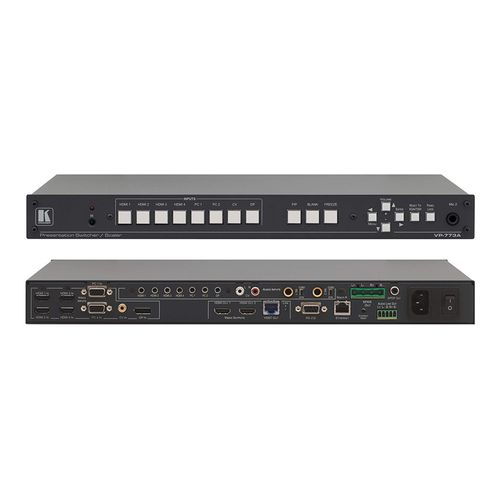

KRAMER VP-773A 8–Input HDMI & HDBaseT ProScale Presentation SwitcherScaler with 2K Support & Power Amplifier

INPUTS

• 4 HDMI (Deep Color) connectors,
• 2 VGA on 15–pin HD connectors,
• 1 composite video on an RCA connector,
• 1 DisplayPort connector,
• 4 HDMI, 2 VGA, 1 DP audio on 3.5mm connectors,
• 1 CV unbalanced stereo audio on 2 RCA connectors,
• 2 mic on 6mm phono plug connectors

OUTPUTS

• 2 HDMI (Deep Color) connectors,
• 1 HDBaseT on an RJ–45 connector,
• 1 S/PDIF digital audio on an RCA connector,
• 1 balanced stereo audio on a 5–pin terminal block connector, 1 stereo speaker output, 2x10W, on a 4–pin terminal block connector

STANDARDS COMPLIANCE

• Supports HDMI (Deep Color), HDCP, DisplayPort 1.1a

OUTPUT RESOLUTIONS

• 640x480@60Hz, 640x480@75Hz, 800x600@50Hz, 800x600@60Hz, 800x600@75Hz, 1024x768@50Hz, 1024x768@60Hz, 1024x768@75Hz, 1280x768@50Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@50Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1360x768@60Hz, 1366x768@50Hz, 1366x768@60Hz, 1400x1050@50Hz, 1400x1050@60Hz, 1600x900@60Hz, 1600x1200@50Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50Hz, 720p@59.94Hz, 720p@60Hz, 1080p@23.976Hz, 1080p@24Hz, 1080p@25Hz, 1080p@29.97Hz, 1080p@30Hz, 1080p@50Hz, 1080p@59.94Hz, 1080p@60Hz, 2048x1080@60Hz, 2048x1080@50Hz

CONTROLS

• Front panel buttons, OSD, IR remote control, RS–232 on a 9–pin D–sub connector, Ethernet

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–49° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

POWER SOURCE

• 100–240V AC, 65VA max

INCLUDED ACCESSORIES

• Power cord, rack “ears”, IR remote control

PRODUCT DIMENSION

• 19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H

PRODUCT WEIGHT

• 2.6kg (5.7lbs) approx.

SHIPPING DIMENSION

• 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 3.6kg (7.9lbs) approx.
