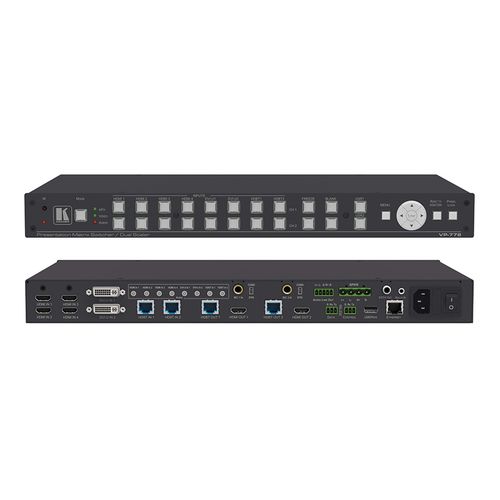

KRAMER VP-778 8–Input Presentation Matrix SwitcherScaler with Seamless Video Cuts and 4K30 Output Support

INPUTS

• 4 HDMI (deep color) connectors
• 2 DVI–U (deep color) connectors (DVI, HDMI, PC, YPb Pr, CV)
• 2 HDBT on RJ–45 connectors
• 4 HDMI, 2 DVI–U, 2 HDBT on 3.5mm mini jack connectors
• 2 Mic unbalanced and high impedance on 6mm jack connectors (with selectable 48V phantom power)

OUTPUTS

• 2 HDMI (deep color) connectors
• 2 HDBaseT on an RJ–45 connector
• 1 S/PDIF digital audio on an RCA connector
• 1 balanced stereo audio on a 5–pin terminal block connector
• 1 stereo speaker output, 2x10W into 8Ω, on a 4–pin terminal block connector

COMPLIANCE WITH HDMI STANDARD

• Supports HDMI and HDCP

OUTPUT RESOLUTIONS

• 640x480@60Hz, 640x480@75Hz, 800x600@50Hz, 800x600@60Hz, 800x600@75Hz, 1024x768@50Hz, 1024x768@60Hz, 1024x768@75Hz, 1280x768@50Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@50Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1360x768@60Hz, 1366x768@50Hz, 1366x768@60Hz, 1400x1050@50Hz, 1400x1050@60Hz, 1600x900@60Hz, 1600x1200@50Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50Hz, 720p@59.94Hz, 720p@60Hz, 1080p@23.976Hz, 1080p@24Hz, 1080p@25Hz, 1080p@29.97Hz, 1080p@30HZ, 1080p@50Hz, 1080p@59.94Hz, 1080p@60Hz, 2048x1080@60Hz, 2048x1080@50Hz, 4K2K@30Hz

CONTROLS

• Front panel buttons, OSD, IR remote control, web pages, 2 RS–232 on terminal block connector, Ethernet, cond/dyn selector switch

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

POWER CONSUMPTION

• 100–240V AC, 50VA max

PRODUCT DIMENSION

• 19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H

PRODUCT WEIGHT

• 2.6kg (5.7lbs) approx.

SHIPPING DIMENSION

• 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 3.8kg (8.4lbs) approx.
