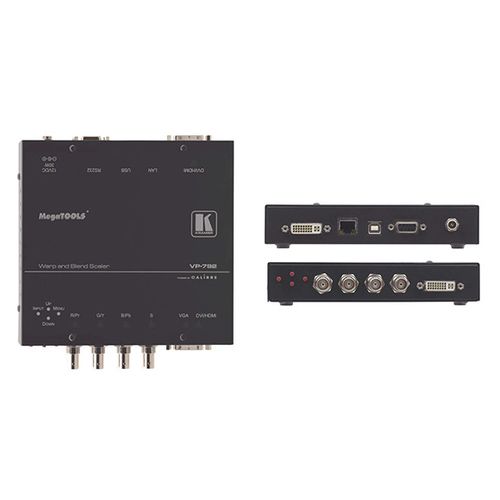

KRAMER VP-792 Multi–Format to DVIHDMI Digital HQV Scaler with Warp Mapping, HQV & Geometric Processing & Edge Blending

INPUTS

• 1 component video YPbPr(S) or RGBS/RGsB on 3 or 4 BNC connectors, 1 DVI/HDMI on a DVI–I connector, 1 VGA (common with the DVI/HDMI input) on a DVI–I connector

OUTPUT

• 1 DVI/HDMI on a DVI connector

OUTPUT RESOLUTIONS

• Common VESA formats from 640x480 to 1920x1200, and HD formats at 720p, 1080p

LATENCY

• As low as 0.25–frame progressive inputs, 1.25–field interlaced inputs

SIGNAL PROCESSING

• 10–bit signal inputs, 12–bit accurate internal processing
• 4–field full resolution SD & HD processing

DE-INTERLACING

• Motion adaptive per pixel video de–interlacing, multi–directional diagonal de–interlace filter

WARP APPS

• Full Warp Mapping, 4–Corner, Rotate, Pin/Barrel, Portrait, Keystone

EDGE BLENDING

• 10–bit alpha blend

POWER SOURCE

• 12V DC, 1.5A approx

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• 12V DC power supply, DVI–D cable, user manual/CD

PRODUCT DIMENSION

• 18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H

PRODUCT WEIGHT

• 1.8kg (4.1lbs) approx.

SHIPPING WEIGHT

• 2.5kg (5.5lbs) approx.
