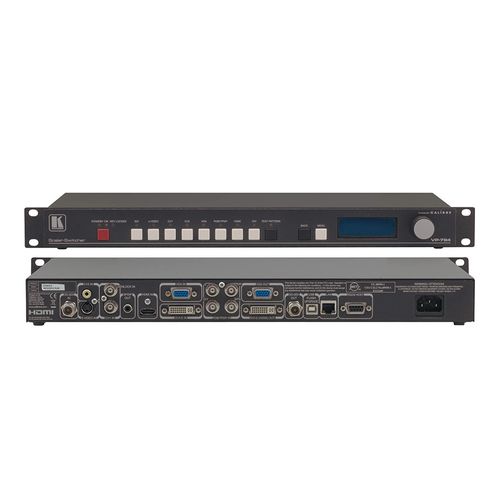

KRAMER VP-794 8–Input Universal Live Event ScalerSwitcherWarp & Blend for Projection & LED Videowalls

INPUTS

• 2 composite video on BNC and RCA connectors,
• 1 YC/s–Video on a 4–pin connector,
• 1 component video YPbPr(S) or RGsB/RGBS on 3/4 BNC connectors,
• 1 HDMI connector,
• 1 DVI with HDCP,
• 1 VGA on a 15–pin HD connector,
• 1 SD/HD/3G HD–SDI on a BNC connector,
• 1 genlock (V–Lock) accepts bi–level, tri–level sync or black & burst, 50/59.94/60Hz formats on a BNC connector

OUTPUT

• 1 SD/HD/3G HD–SDI on a BNC connector, 1 DVI/HDMI on a DVI connector, 1 VGA on a 15–pin HD connector, 1 S/PDIF on an RCA connector

OUTPUT RESOLUTIONS

• DVI/VGA common VESA formats 640x480 to 1920x1200, 720p, 1080p
• 3G HD–SDI in SMPTE formats 480i, 576i, 720p, 1080i, 1080p with selectable audio embed

OPERATING MODES

• LED video wall, projection, scaler/switcher/scan converter

MINIMUM LED VIDEOWALL SIZE

• 128X96 pixels

PROJECTION MODE WARP APPS

• Full Warp Mapping, 4–Corner, Rotate, Pin/Barrel, Portrait, Keystone

PROJECTION MODE EDGE BLENDING

• 48–bit per pixel, 4:4:4 16–bit per color edge blend with de–gamma processing and multi–region black level correction

LATENCY

• As low as 0.25–frame progressive inputs, 1.25–fields interlaced inputs

SIGNAL PROCESSING

• 10–bit signal inputs, 12–bit accurate internal processing
• 4–field full resolution SD & HD processing

DE-INTERLACING

• Motion adaptive per pixel video de–interlacing, multi–directional diagonal de–interlace filter

POWER SOURCE

• 100–264V AC, 35W typical

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –30° to +70°C (–22° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• DVI–D cable, user manual/CD, power cord

PRODUCT DIMENSION

• 19" x 7.24 x 1U (43.6cm x 18.40cm x 8.80cm) W, D, H

PRODUCT WEIGHT

• 1.8kg (4.1lbs) approx.

SHIPPING WEIGHT

• 2.5kg (5.5lbs) approx.
