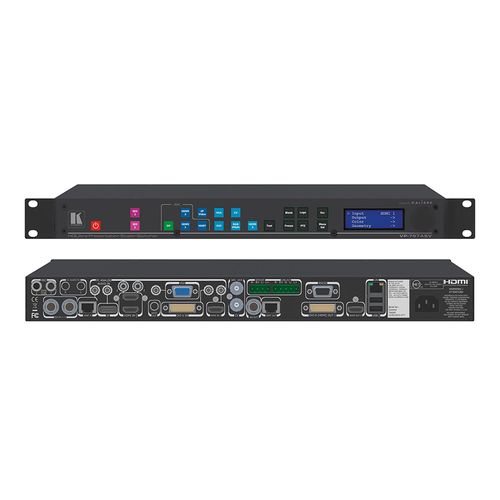

KRAMER VP-797ASV 12–Input 4K60 4:2:0 HQUltra HDBaseT and Legacy Presentation Switcher / Scaler with Ultra–Fast Input Switching, Analog Audio, 3G HD–SDI, Genlock, H.264 Streaming Input

VIDEO INPUTS

• 1 HDBT on an RJ–45 connector, 1 DisplayPort connector, 2 HDMI (4K UHD) connectors, 1 HDMI (HD) connector, 1 DVI–U (DVI/HDMI & VGA/RGBS/YPbPr), 1 VGA on a 15–pin HD connector, 1 CV on an RCA connector, 2 3G HD–SDI on BNC connectors, 1 genlock sync, 1 H.264 1080p streaming video

AUDIO INPUTS

• 2 microphones on 6mm mini jacks, 1 CV stereo on RCA connectors (R, L), 7 unbalanced stereo on 3.5mm jacks

OUTPUTS

• 1 HDBT on an RJ–45 connector, 1 HDMI connector, 1 DVI/HDMI on a DVI–I connector, 1 3G HD–SDI on a BNC connector

AUDIO OUTPUTS

• Speaker on a 4–pin terminal block, line out on a 5–pin terminal block, S/PDIF on an RCA connector

PORTS

• 1 RS–232 on a 9–pin D–sub connector, 1 LAN on an RJ–45 connector, 2 USB–A connectors

COMPONENT VIDEO INPUT FORMATS

• 484i (480i) and 576i (SD), 480p, 576p (ED), 720p, 1080i @50, 59.94 and 60Hz and 1080p @23.98, 24, 25, 29.97 and 30Hz

HDMI/DVI SIGNAL FORMATS

• SD: 625i (576i) and 525i (480i) in double–rate formats
• ED: 480p, 576p
• HD: 1280x720p, 1920x1080i, 1920x1080psf
• 1920x1080p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60Hz
• 2048x1080p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60Hz. The 4k capable HDMI 1 and HDMI 2 inputs also support: 3840x2160p & 4096x2160p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60Hz (50, 59.94 & 60Hz supported in YUV 4:2:0 color space format)

OUTPUT RESOLUTIONS

• 640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1400x1050, 1600x1200, 1920x1200, 480i, 576i, 480p, 576p, 1080i, 720p (default after reset), 1080p, 2024x1080, 2560x1080, 2560x1440, 2560x1600, 3860x2160, 4096x2160

FRAME RATE

• 60Hz, 59.94Hz, 50Hz, 48Hz, 25Hz, 24Hz, 23.97Hz, auto

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

POWER CONSUMPTION

• 100–264V AC, 50/60Hz, 65W

STANDARDS COMPLIANCE

• CE: 2004/108/EC Electromagnetic Compatibility Directive, and 2006/95/EC Low Voltage Directive. Compliance is to EN55022 Class A

INCLUDED ACCESSORIES

• Power cord, Rack “ears”

PRODUCT DIMENSION

• 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H

PRODUCT WEIGHT

• 2.7kg (6.0lbs) approx.

SHIPPING WEIGHT

• 3.8kg (8.3lbs) approx
