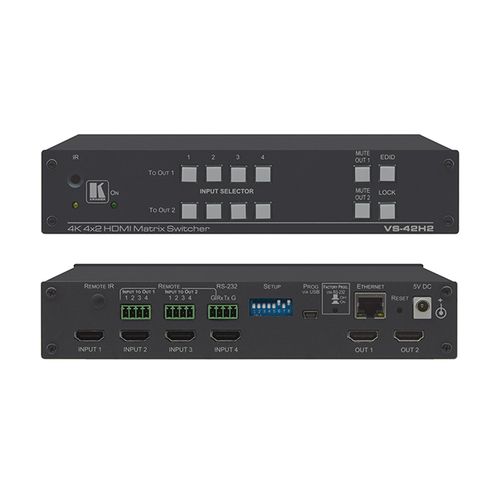

KRAMER VS-42H2 4x2 4K HDR HDMI HDCP 2.2 Matrix Switcher

INPUTS

• 4 HDMI: On female HDMI connectors

OUTPUTS

• 2 HDMI: On female HDMI connectors

PORTS

• 1 Ethernet: On an RJ–45 female connector
• 1 RS-232: On a 3–pin terminal blocks
• 1 USB: On a mini USB connector
• 8 Remote Selection Contact-Closure Switches: On 9 terminal block pins

VIDEO

• Max. Resolution: 4K@60Hz 4:4:4
• Max. Data Rate: 18Gbps (6Gbps per graphic channel)
• Compliance: HDCP 2.2/1.4

USER INTERFACE

• Control: Input selector, output mute, EDID capture, and panel lock buttons. DIP switch HDCP configuration
• Indicators: Switching, IR, and power LEDs

POWER

• Source: 5V DC
• Consumption: 2.5A

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RH non–condensing

STANDARDS COMPLIANCE

• Safety: CE
• Environmental: RoHs, WEEE

ENCLOSURE

• Size: Half–19” 1U
• Type: Aluminum
• Coolling: Convection ventillation

ACCESSORIES

• Included: Power adapter, rubber feet, IR remote control transmitter

PRODUCT DIMENSION

• 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H

PRODUCT WEIGHT

• 1.0kg (2.1lbs) approx.

SHIPPING DIMENSION

• 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H

SHIPPING WEIGHT

• 1.6kg (3.5lbs) approx.
