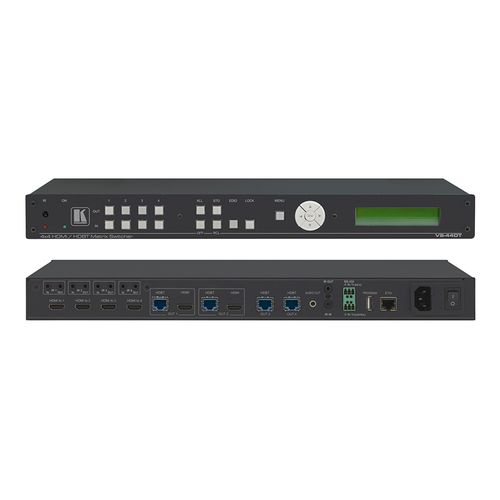

KRAMER VS-44DT 4x4 4K60 4:2:0 HDMI/HDBaseT Extended–Reach PoE Matrix Switcher

INPUTS

• 4 HDMI on HDMI connectors, 5 IR on 3.5mm mini jack connectors

OUTPUTS

• 2 HDMI connectors, 4 HDBaseT on RJ–45 connectors, 5 IR on 3.5mm mini jack connectors, 1 unbalanced stereo audio on a 3.5mm mini jack connector

PORTS

• 1 Ethernet on an RJ–45 connector, 1 program on a USB connector, 1 RS–232 control on a 3–pin terminal block, 1 RS–232 data on a 3–pin terminal block

MAX. DATA RATE

• 10.2Gbps (3.4Gbps per graphic channel)

SUPPORTED RESOLUTIONS

• VGA to WUXGA (reduced blanking), 4Kx2K @30Hz with Deep Color up to 36bpp

HDMI RANGE

• 15m (49ft) @ 8bit resolution, 10m (33ft) @ 12 bit resolution

HDBASET RANGE

• 100m (328ft) 4K @30Hz 180m (590ft) 1080 @60Hz@24bpp

POWER CONSUMPTION

• 100–240V AC, 50/60Hz, 60VA

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

COOLING

• Fan

ENCLOSURE TYPE

• Aluminum chassis

VIBRATION

• ISTA 1A in carton (International Safe Transit Association)

SAFETY REGULATORY COMPLIANCE

• CE

ENVIRONMENTAL REGULATORY COMPLIANCE

• Complies with appropriate requirements of RoHs and WEEE

INCLUDED ACCESSORIES

• Rack “ears”, IR blaster, IR remote control (upon request)

PRODUCT DIMENSION

• 19" x 13.90 x 1U (43.6cm x 35.30cm x 4.36cm) W, D, H

PRODUCT WEIGHT

• 3.3kg (7.3lbs) approx.

SHIPPING DIMENSION

• 54.30cm x 44.20cm x 10.70cm (21.38" x 17.40" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 4.1kg (9.0lbs) approx.
