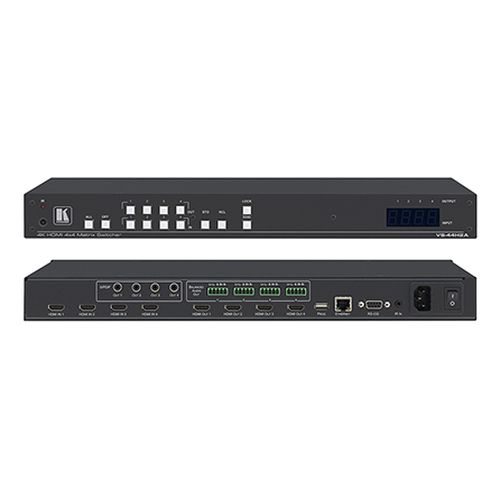

KRAMER VS-44H2A 4x4 4K HDR HDMI HDCP 2.2 Matrix Switcher with Audio De–embedding

INPUTS

• 4 HDMI: On female HDMI connectors

OUTPUTS

• 4 HDMI: On female HDMI connectors
• 4 S/PDIF: On female RCA connectors
• 4 Balanced Stereo Audio: On 5–pin terminal block connectors

PORTS

• 1 USB: On a Mini female connector
• 1 RS-232: On a 9–pin D–sub connector
• 1 IR IN: On a 3.5mm mini jack
• 1 Ethernet: On an RJ–45 female connector

VIDEO

• Max. Resolution: 4K@60Hz 4:4:4
• Max. Data Rate: 18Gbps (6Gbps per graphic channel)
• Content Protection: Supports HDCP 2.2/1.4
• HDMI Support: HDR10, CEC, xvYCC color, Dolby TureHD/DTS–HD Master Audio, 3D Video as specified in HDMI 2.0

USER INTERFACE

• Front Panel: IN and OUT selection buttons
• Front Panel: OFF, ALL, STO, RCL EDID, LOCK buttons

POWER

• Source: 100–240V AC, 50/60Hz
• Consumption: 60VA

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RH non–condensing

STANDARDS COMPLIANCE

• Safety: CE
• Environmental: RoHs, WEEE

ENCLOSURE

• Size: 19” 1U
• Type: Aluminum
• Cooling: Fan

ACCESSORIES

• Included: Power cord, rack ears, IR remote control (upon request)

PRODUCT DIMENSION

• 43.64cm x 23.72cm x 4.36cm (17.18" x 9.34" x 1.72" ) W, D, H
• 43.64cm x 18.30cm x 4.36cm (17.18" x 7.20" x 1.72" ) W, D, H

PRODUCT WEIGHT

• 2.0kg (4.5lbs) approx.
• 2.0kg (4.5lbs) approx.

SHIPPING DIMENSION

• 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H
• 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 2.9kg (6.5lbs) approx.
• 2.9kg (6.5lbs) approx.
