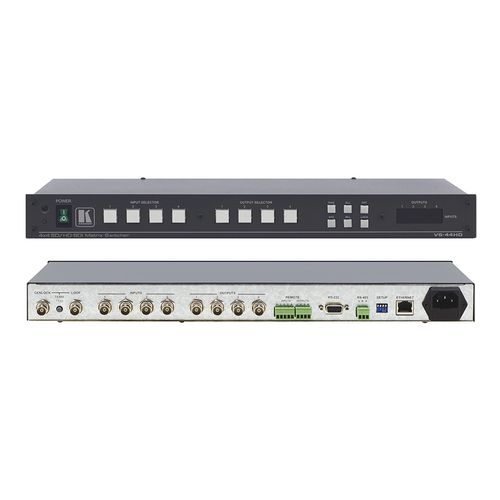

KRAMER VS-44HD 4x4 HD–SDI Matrix Switcher

INPUTS

• 4 SDI SMPTE–259M, 292M, 344M serial video, 75Ω on BNC connectors
• 1 GENLOCK 75Ω/Hi–Z on a BNC connector

OUTPUTS

• 4 equalized and reclocked SMPTE–259M, 292M, 344M outputs 75Ω on BNC connectors
• 1 looped GENLOCK 75Ω/Hi–Z on a BNC connector

MAX. OUTPUT LEVEL

• 800mVpp/75Ω

MAX. DATA RATE

• Up to 1.485Gbps

CONTROLS

• Front–panel, RS–232
• RS–485, Ethernet, infrared remote, dry contact, and panel lock

INDICATORS

• 4–character display on the front panel

POWER CONSUMPTION

• Universal, 100–240V AC, 50/60Hz, 22VA

INCLUDED ACCESSORIES

• Power cord, IR remote, null–modem adapter

PRODUCT DIMENSION

• 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H

PRODUCT WEIGHT

• 2.8kg (6.1lbs) approx.

SHIPPING WEIGHT

• 3.7kg (8.2lbs) approx.

SHIPPING DIMENSION

• 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H
