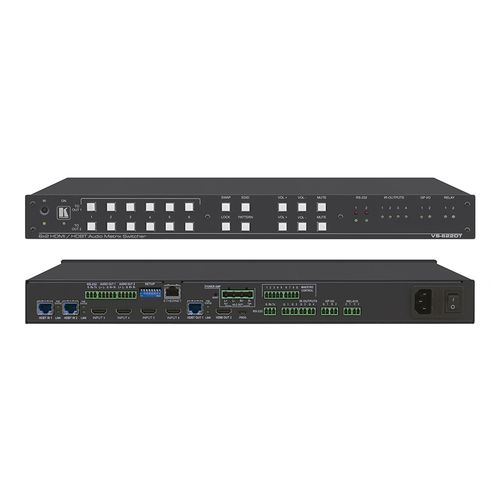

KRAMER VS-622DT All–in–One Presentation System with 6x2 4K60 4:2:0 HDMI/HDBaseT Matrix Switching

INPUTS

• 2 HDBT with PoE: On female RJ–45 Connectors
• 4 HDMI: On female HDMI connectors

OUTPUTS

• 1 HDBT with PoE: On a female RJ–45 Connector
• 1 HDMI: On a female HDMI connector
• 2 Stereo Balanced Audio: On 5–pin terminal block connectors
• 1 Power Amplifier for Stereo or 1 Mono Speaker: On a 4–pin large terminal block

PORTS

• 1 Ethernet: On an RJ–45 female connector
• 1 Control RS-232: On a 3–pin terminal block
• 1 USB (PROG): On a mini USB connector, for firmware upgrade
• 1 RS-232: On a 3–pin terminal block
• 4 IR: On 2–pin terminal block connectors
• 2 GPI/O: On 2–pin terminal block connectors
• 2 Relays: On 2–pin terminal block connectors

VIDEO

• Max Resolution: Up to 4K@60Hz UHD (4:2:0)
• Compliance: HDCP 1.4

POWER AMPLIFIER

• 1 x 120W @ 70V/100V
• 2 x 60W @ 4/8Ω

EXTENSION LINE

• Up to 100m (330ft): At 4K@60Hz (4:2:0)
• Up to 130m (430ft): At Full HD (1080p @60Hz 36bpp)
• Up to 180m (590ft): HDBaseT Ultra Mode and Full HD (1080p @60Hz 24bpp)

ROOM AUTOMATION

• Kramer Maestro: V1.5

USER INTERFACE

• Controls: Input selection buttons, swap, EDID, lock and audio control buttons
• Indicators: Power, RS–232, IR, GPI/O and relay LEDs
• Remote: RS–232, Ethernet, Web pages, IR remote control transmitter, Programmable Maestro buttons interface

POWER

• Source: 100–240V AC
• Consumption: 250VA max

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing

REGULATORY

• Safety: CE
• Environmental: RoHs, WEEE

ENCLOSURE

• Size: 19”, 1U
• Type: Aluminum
• Cooling: Fan Ventilation

ACCESSORIES

• Included: Power cord

PRODUCT DIMENSION

• 43.64cm x 23.72cm x 4.36cm (17.18" x 9.34" x 1.72" ) W, D, H

PRODUCT WEIGHT

• 2.6kg (5.7lbs) approx.

SHIPPING DIMENSION

• 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 3.7kg (8.2lbs) approx.
