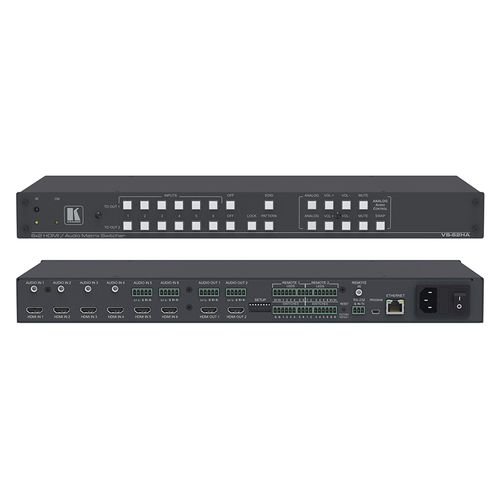

KRAMER VS-62HA 6x2 4K60 4:2:0 HDMI/Audio Automatic Matrix Switcher

INPUTS

• 6 HDMI connectors, 4 unbalanced stereo audio on 3.5mm mini jacks, 2 balanced stereo audio on 5–pin terminal blocks

OUTPUTS

• 2 HDMI connectors, 2 balanced stereo audio on 5–pin terminal blocks

PORTS

• 1 RS–232 on a 3–pin terminal block, 1 Ethernet on an RJ–45 connector, 2 x 6 remote LED outputs on terminal blocks, 2 x 6 remote contact closure switches on terminal blocks, 1 USB Type–C, 1 optional remote IR on a 3.5mm mini jack

CONTROLS

• Front panel buttons, infrared remote control transmitter, RS–232, Ethernet, remote input selection switches and LEDS, built–in Web browser

LED INDICATORS

• IR active — red, ON — green

MAX. DATA RATE

• Up to 8.91Gbps data rate (2.97Gbps per graphic channel)

COMPLIANCE WITH HDMI STANDARD

• HDMI and HDCP

RESOLUTION

• Up to 4K@60Hz UHD (4:2:0)

SUPPORTED BAUD RATES

• 9600, 115200bps

SUPPORTED WEB BROWSERS

• The following operating systems and Web browsers are supported:
• Windows 7: Google Chrome v25, FireFox v15, Opera v12, Microsoft Internet Explorer v9
• Windows XP: Google Chrome v25, FireFox v15
• Apple Mac: Google Chrome v25, FireFox v20, Opera v12.14, Safari v6

POWER CONSUMPTION

• 100–240V AC, 22VA

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Power cord, rack “ears”

OPTIONAL

• External remote IR receiver cable

PRODUCT DIMENSION

• 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H

PRODUCT WEIGHT

• 1.7kg (3.6lbs) approx.

SHIPPING DIMENSION

• 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 2.5kg (5.5lbs) approx.
