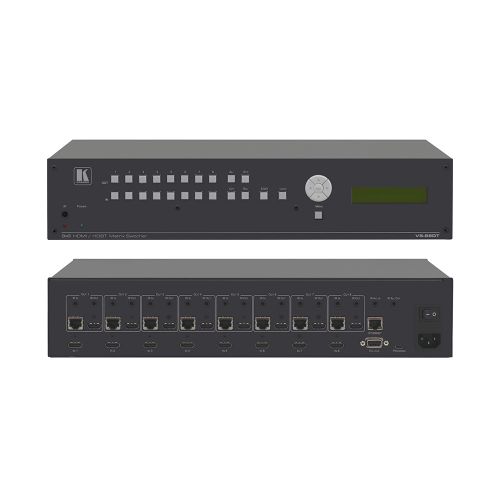

KRAMER VS-88DT 8x8 HDMI to HDMI or HDBaseT Matrix Switcher

INPUTS

• 8 HDMI, 9 infrared on 3.5mm mini jacks, 1 RS–232 on a 9–pin D–sub connector, 1 Ethernet on an RJ–45 connector, 1 program on a mini USB connector

OUTPUTS

• 8 HDMI, 8 HDBaseT on RJ–45 connectors, 9 infrared on 3.5mm mini jack connectors

MAX. DATA RATE

• 6.75Gbps (2.25Gbps per graphic channel)

AUDIO SUPPORT

• Up to 7.1 channels @192kHz

POWER CONSUMPTION

• 100–240V AC 50/60Hz 60VA

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Rack “ears”

PRODUCT DIMENSION

• 19" x 13.82 x 2U (43.6cm x 35.10cm x 8.80cm) W, D, H
• 19" x 13.90 x 2U (43.6cm x 35.30cm x 8.80cm) W, D, H

PRODUCT WEIGHT

• 1.6kg (3.6lbs) approx.
• 1.6kg (3.6lbs) approx.

SHIPPING DIMENSION

• 52.60cm x 47.50cm x 18.40cm (20.71" x 18.70" x 7.24" ) W, D, H
• 52.60cm x 47.50cm x 18.40cm (20.71" x 18.70" x 7.24" ) W, D, H

SHIPPING WEIGHT

• 2.6kg (5.7lbs) approx.
• 2.6kg (5.7lbs) approx.
