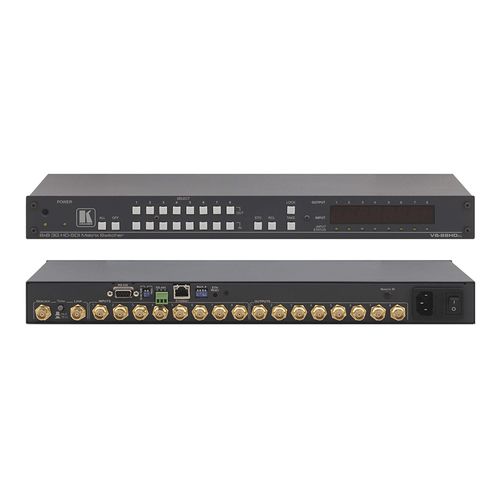

KRAMER VS-88HDxl 8x8 3G HD–SDI Matrix Switcher

INPUTS

• 8 SMPTE–259M, 344M, 292M, 372M, 424M serial video, 75Ω on BNC connectors

OUTPUTS

• 8 equalized and reclocked SMPTE–259M, 344M, 292M, 424M, 372M (dual link) outputs 75Ω on BNC connectors

MAX. OUTPUT LEVEL

• 800mVpp/75Ω

DATA RATE

• Up to 2.97Gbps

CONTROLS

• Front–panel, RS–232, RS–485, ETHERNET, remote infrared

INDICATORS

• 8–character display on the front panel

POWER CONSUMPTION

• Universal, 100–240V AC, 50/60Hz 24VA

INCLUDED ACCESSORIES

• Power cord, IR remote control transmitter (upon request)

OPTIONS

• External remote IR receiver cable

PRODUCT DIMENSION

• 19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H

PRODUCT WEIGHT

• 1.9kg (4.2lbs) approx.

SHIPPING DIMENSION

• 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 2.9kg (6.4lbs) approx.
