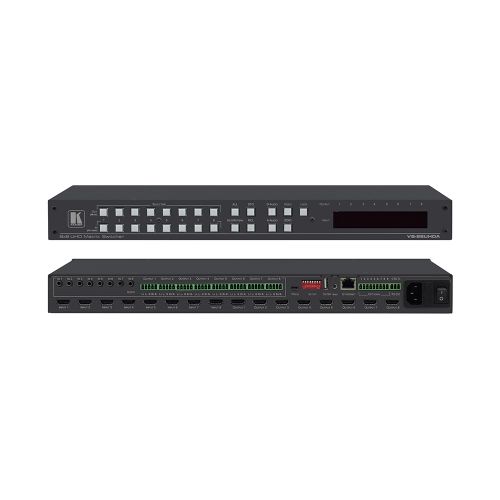

KRAMER VS-88UHDA 8x8 4K60 4:2:0 HDMI Matrix Switcher with Audio Embedding/De–embedding

INPUTS

• 8 HDMI connectors, 8 unbalanced stereo audio on 3.5mm mini jacks

OUTPUTS

• 8 HDMI connectors, 8 balanced audio stereo output on a 5–pin terminal blocks (+4dBu nominal)

PORTS

• 1 USB, 1 RS–232, 1 Ethernet, 1 USB for powering an external device

COMPLIANCE WITH HDMI STANDARD

• Supports HDMI and HDCP 1.4

OUTPUT RESOLUTIONS

• Up to 4K@60Hz (4:2:0) and 4K@30Hz (4:4:4)

CONTROL

• Front panel buttons, 7–segment display, AFV and breakaway buttons (VIDEO, A–AUDIO and D–AUDIO), STO–RCL, LOCK, PATTERN–MUTE buttons, RS–232, Ethernet Remote connection

POWER SOURCE

• 100–240V AC, 50/60Hz, 50VA

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RH (non–condensing)

INCLUDED ACCESSORIES

• Rack ears, power cord

PRODUCT DIMENSION

• 19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H

PRODUCT WEIGHT

• 2.6kg (5.7lbs) approx.

SHIPPING DIMENSION

• 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 3.6kg (7.9lbs) approx.
