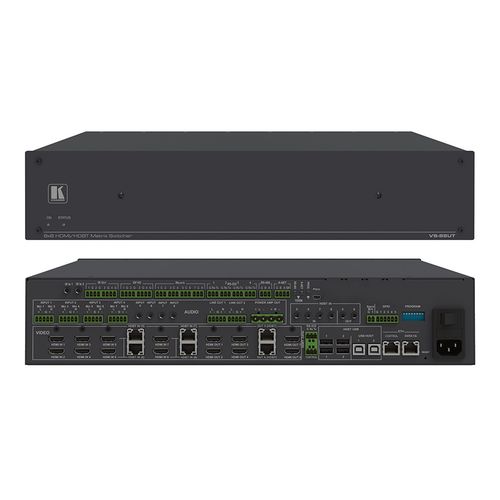

KRAMER VS-88UT All–in–One Presentation System with 8x8 4K60 4:2:0 HDMI/HDBaseT 2.0 Matrix Switching

INPUTS

• 4 HDMI: On female HDMI connectors
• 4 HDBT/4 HDMI (Selectable): On RJ–45/female HDMI connectors
• 4 Unbalanced Stereo Audio: On 3.5mm mini jacks
• 4 Balanced Stereo Audio/8 Balanced Mic (Selectable): On 5–pin/3–pin terminal block connectors
• 4 IR: On 3.5mm mini jacks for IR tunneling via HDBaseT
• 2 IR (room controller): On 3.5mm mini jacks

OUTPUTS

• 6 HDMI: On female HDMI connectors
• 2 HDBaseT: On female RJ–45 connectors
• 2 Balanced Stereo Audio: On 5–pin terminal block connectors
• 1 Stereo Speaker Output: On a 4–pin terminal block, 2x50W into 4Ω
• 2 IR: On 3.5mm mini jacks for IR tunneling via HDBaseT

PORTS

• 1 RS-232: On a 3–pin terminal block for Serial Tunneling via HDBaseT
• 1 RS-232: On a 3–pin terminal block for Device Control
• 4 (2+2) USB: On female USB–A connectors for USB Link Extension
• 2 USB: On female USB–B connectors for USB Link Extension
• 1 Ethernet Control: On an RJ–45 female connector for tunnelling data via HDBT ports
• 1 Ethernet 1G: On an RJ–45 female connector for tunnelling data via HDBT ports
• 1 100BaseT Ethernet: On an RJ–45 female connector for Device Control and LAN Extension
• 1 K-NET 5mm Mini-jack (room controller): On a 4–pin terminal block connector for learning
• 1 RS-485 (room controller): On a 3–pin terminal block connector
• 4 RS-232 Serial (room controller): On 3–pin terminal blocks
• 8 Relays (room controller): On 2–pin terminal block connectors (36V AC or DC, 2A, 60VAC maximum on non–inductive load)
• 4 GPI/O (room controller): On 2–pin terminal blocks

EXTENSION LINE

• Up to 100m (330ft): At 4K@60Hz (4:2:0)
• Up to 130m (430ft): At Full HD (1080p @60Hz 36bpp)
• Up to 180m (590ft): HDBaseT Ultra Mode and Full HD (1080p @60Hz 24bpp)
• Compliance: HDBaseT 2.0

USER INTERFACE

• Indicators: ON & STATUS LEDs
• Configuration Switches: RS–485 Termination, RS–485 Termination, Programming

VIDEO

• Max. Resolution: 4K@60Hz (4:2:0) 24bpp resolution
• Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
• Content Protection: HDCP 1.4

ANALOG AUDIO

• Max Vrms Level: 1
• THD + Noise: 0.03% @1kHz at nominal level

EXTENDED USB

• Host Compliance: 1.1 and 2.0
• Max Extended Line Rate Bandwidth: 127Mbps (out of max 480 USB)
• Max Devices: 7
• Max Hubs: 2
• Max Ports per Hub: 8

EXTENDED ETHERNET

• Max Transmission Bandwidth: 100Mbps

EXTENDED RS-232

• Baud Rate: 300 to 57600

CONTROL RS-232

• Baud Rate: 115200

SUPPORTED PC WEB BROWSERS

• Windows 7 and Higher: Internet Explorer (32/64 bit) version 10, Firefox version 30, Chrome version 35
• MAC: Chrome version 35, Firefox version 30, Safari version 7
• Optimal Resolution: 1920x1080
• Minimal Resolution: 1024 x 768d

POWER

• Source: 100–240V AC, 50/60Hz
• Consumption: 250VA

ENCLOSURE

• Size: 19" (W), 9.3" (H), 2U, rack mountable
• Type: Aluminum
• Cooling: Fan ventilation

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing

REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)

• Safety: CE, UL
• Environmental: RoHs, WEEE

ACCESSORIES

• Included: Power cord
• Optional: Recommended Kramer cables, see the CABLES tab

PRODUCT DIMENSION

• 19" x 12.05 x 2U (43.6cm x 30.60cm x 8.80cm) W, D, H
• 19" x 7.24 x 2U (43.6cm x 18.40cm x 8.80cm) W, D, H

PRODUCT WEIGHT

• 3.9kg (8.6lbs) approx.
• 3.9kg (8.6lbs) approx.

SHIPPING DIMENSION

• 52.60cm x 47.50cm x 18.40cm (20.71" x 18.70" x 7.24" ) W, D, H
• 52.60cm x 47.50cm x 18.40cm (20.71" x 18.70" x 7.24" ) W, D, H

SHIPPING WEIGHT

• 5.4kg (11.8lbs) approx.
• 5.4kg (11.8lbs) approx.
